Centroid Oak CNC Controller

Centroid "Oak" closed loop CNC Controller.
A reliable, high performance, industrial quality CNC control at a do-it-yourself price. The Oak utilizes an integrated Motion Control CPU and communicates with CNCPC via a fast and reliable Ethernet connection. The Oak is a 4 axis CNC control board that is expandable to 8 axis of simultaneous motion. Perfect for many types of machine tools such as: CNC milling machines of all types, Turning Centers and a wide variety of CNC routers and other specialty applications. Typically used on CNC machine tools where a high performance CNC control is needed. Typically used with AC brushless servo in full closed loop operation but also can control DC servos as well. Yaskawa, Delta and SureServo2 are the only DIY recommended servo drive packages for use with Oak. While many other drives have been used with Oak successfully they are NOT a DIY project and are done by seasoned CNC integrators. For DIY sales there is no guarantee from Centroid when using Oak with any other drive other than Delta ASDA-A2 -B2, Yaskawa Sigma 1,2,5,7 or SureServo2.
A visual price guide of the Oak and its compatible accessories is shown
view as hi-res PDF
Centroid Oak CNC Controller base kit: Industrial grade DIY CNC control board for all types of CNC machine tools.
The complete Centroid Oak kit is shown with accessories.

$1,395.00

Estimated Shipping Date

Ordered
Shipped

Centroid Oak CNC controller kit (#15000) includes:
- Oak control board
- Logic power supply with power leads
- Connector kit
- 15’ Shielded Ethernet cable
- Centroid CNC12 CNC Mill and Lathe FREE version of software, see below
- Typical CNC machine tool pre-programmed PLC Inputs and Outputs
- Mill and Lathe Conversational Programming Software
- Installation and Operator’s manuals PDF
- Full Size Paper Wiring Schematic
- DIY self service CNC support through Centroid Community CNC Forum which is Centroid Technician monitored and maintained.
- Centroid CNC12 "FREE" version of CNC software. (Purchase Pro or Ultimate for additional feature set, see below.)
- Optional Centroid Factory Engineer remote or phone technical support

Depending on current order volume, please expect at least 5 business days processing for Oak Orders
Documentation & Support
Features
FAQ
  • Built in Motion Control CPU
  • Mill and Lathe CNC software
  • Reliable Ethernet communication with CNCPC
  • Runs on Windows 10
  • Compatible with CAD/CAM systems
  • Runs Standard G & M Codes (see list in operator manuals)
  • 4 Mb G code program size (unlimited optional)
  • True G-code back plot graphics w cutter comp moves
  • 2000 line accell decell look ahead
  • 1200 blocks per second
  • Feed rate override operator variable 0-200% at 1% increments
  • Plug and Play dedicated MPG port
  • Rapid rate override
  • Spindle Control. on/off cw/cw, speed w/override
  • 12-bit analog output 0-10 VDC for VFD control
  • 16 optically isolated inputs, user configurable
  • 9 fused relay outputs, user configurable
  • Centroid Operator control pendant compatible
  • Six Encoder Inputs
  • Single 24 vdc logic power input
  • Spindle Encoder RPM display
  • Simple Menu Driven Operator Interface
  • Stop and Restart Job at any point
  • Tool Check, Jog and Restart at any point
  • Cutter Compensation
  • Conductive touch probe compatible
  • Kinematic touch probe compatible
  • Dedicated Touch Probe port
  • 6 WCS G54 - G59 (12 more optional)
  • 4th axis software (both G code and Conversational)
  • Lube Pump control (user configurable to match pump type)
  • MDI mode with recent command memory
  • Programmable Auxiliary Function keys
  • Multiple Language Support
  • Stock PLC programs
  • User editable PLC programming
  • Part counter, Time, Time estimation
  • Simple Future Software updates available
  • G code editor
  • Utility Menu
  • Backup and Restore CNC config
  • Message Display and Logs
  • True Closed Loop CNC operation
  • Unlimited Program Storage (only limited by hard drive size)
  • Large easy to read DRO display
  • Menu Driven Part setup
  • Menu Driven Tool setup
  • Menu driven machine configuration setup
  • Fill in the blank Setup Menus
  • Run Menu
  • CNC control configuration menu
  • Restart Job Automatically
  • Any axis can be linear or rotary axis
  • G-code smoothing (user adjustable)
  • Auto Home to switch, user selectable direction per axis
  • Jog to Home or Home to Marks
  • Software Travel Limits (+ and - directions)
  • User configurable Slow, Fast, Max rates
  • User configurable axis motor acceleration
  • Backlash compensation
  • Gcode backplot checks work envelope
  • G code backplot shows true cutter comp moves
  • Vary part backplot speed and pause w/ G-code line display
  • Real Time Part Graphics, shows tool position while running
  • Optional Stops
  • Subprograms and Macros
  • Engraving compatible (short vector g code no problem)
  • Threadmilling (Mill)
  • Run in Inch or MM mode
  • Tool Library
  • Long part names
  • Drilling and Tapping Cycles
  • USB and Network Drive Compatible
  • Keyboard Operator Control panel emulator,
  • Xkeys USB control pad compatible
  • Tool Life Management
  • Ballscrew mapping table
  • Control relays and contactors thru Manual or Program control
  • User configurable custom DIY M-codes
  • Canned Cycles
  • Constant surface speed (lathe)
  • Threading (lathe)
  • Profiling with auto cleanout (lathe)
  • Lathe canned cycles (thread, groove, chamfer, cutoff,turning diameter and end face,
  • Scale input for DRO positional display of a manual axis
  • X/Y axis Deskew
  • Coordinate System Rotation
Coming Soon...

Centroid Mill CNC Software License Upgrades

$449.00$1,999.00

Estimated Processing Date

Ordered
Processed



If you are buying a License for an existing control, please upload the Report.zip from that control before pressing 'Add to Cart'. Alternatively, if you have the Barcode or Serial Number from an existing control, you can enter it in the box below then click 'Add to Cart'. If you are purchasing a new CNC Controller and a License file, you do not have to upload a Report.zip file or enter a Barcode or Serial Number as we will automatically assign the license file to the CNC Controller you are purchasing.



Please see the detailed table below describing the differences between Pro and Ultimate software levels

Centroid Lathe CNC Software License Upgrades

$449.00$995.00

Estimated Processing Date

Ordered
Processed



If you are buying a License for an existing control, please upload the Report.zip from that control before pressing 'Add to Cart'. Alternatively, if you have the Barcode or Serial Number from an existing control, you can enter it in the box below then click 'Add to Cart'. If you are purchasing a new CNC Controller and a License file, you do not have to upload a Report.zip file or enter a Barcode or Serial Number as we will automatically assign the license file to the CNC Controller you are purchasing.



Please see the detailed table below describing the differences between Pro and Ultimate software levels

Additional Options

$280.00

Estimated Processing Date

Ordered
Processed

ATC Plugin for Oak/Allin1DC/Hickory/MPU11 (#15006):
This plug-in is required for an Oak/Allin1DC/Hickory/MPU11 system that will be configured for an Automatic Tool Changer.

$1,001.00$1,999.00

Estimated Processing Date

Ordered
Processed



If you are buying a License for an existing control, please upload the Report.zip from that control before pressing 'Add to Cart'. Alternatively, if you have the Barcode or Serial Number from an existing control, you can enter it in the box below then click 'Add to Cart'. If you are purchasing a new CNC Controller and a License file, you do not have to upload a Report.zip file or enter a Barcode or Serial Number as we will automatically assign the license file to the CNC Controller you are purchasing.



Includes all the features of Ultimate, PLUS 6 axis simultaneous interpolated motion CNC software.

Allin1DC can command up to 6 axis drivers, Hickory and Oak can command up to 8 axis drivers, with or without this option. This option allows: Simultaneous Coordinated Interpolated motion of individual axes involving 5 or more axes which is a regulated technology by the US government. (If you are outside the US we will provide and ask you to sign two documents, a letter of assurance and a letter of certification for our records).

Most users do not require this feature. Don't confuse True interpolated 5+ axis motion with simply having 5 or more drive ports on the CNC control board that all can command and move 5 or more axes. Allin1DC, Hickory, and Oak without this 6 axis simultaneous software is considered a 4+2 system. Which is: Fully interpolated motion for ANY four axis in ANY combination at ANY given time. For instance XYZW, XWAB, ABCW, ZWAB, XYAB, ZYAB, etc..

Software Level comparison

Features
CNC12 Free v5.0+
CNC12 Pro v5.0+
CNC12 Ultimate v5.0+
Mill and Lathe Intercon Conversational programming Limited to 20 blocks of conversational Unlimited Unlimited
Wireless MPG Pendant support *** Not included Included Included
G-code program size Limited to 50Kb Mill , 5Kb Lathe G-code file size Unlimited G-code file size Unlimited G-code file size
Work Coordinates Systems (WCS) One (G54) Eighteen (G54-G59 plus extended WCS) Eighteen (G54-G59 plus extended WCS)
Menu driven Probing cycles Center of bore Complete Set of menu driven probing cycles. Bore, Boss, Slot, Web, Inside Corner, Outside corner, Single edge find, find angle, auto probe for CSR Complete Set of menu driven probing cycles. Bore, Boss, Slot, Web, Inside Corner, Outside corner, Single edge find, find angle, auto probe for CSR
Menu driven Digitizing cycles Grid, Radial, Contour, Wall following, limited to 2500 points Grid, Radial, Contour, Wall following, limited to 2500 points Unlimited point Grid, Radial, Contour, Wall following
Auto Tool Height Measurement Unlimited auto measure on: Reference Too l & Tools 1,2,3 Unlimited auto measure on all tools. Unlimited auto measure on all tools.
Coordinate System Rotation Manual Manual Automatic and Manual
Tool Library 10 Tools 200 Tools, (99 Tools Lathe) 200 Tools Mill, (99 Tools Lathe)
Sub Programs and Macros (M98 & G65) Write your own custom marcos, many uses Not Included Included Included
Cutter Compensation Included Included Included
Backlash Compensation Included Included Included
Screw compensation (laser or manual!) Included Included Included
3 axis simultaneous Included Included Included
4 axis simultaneous Not included Included Included
4 th Axis linear or rotary conversational programming. limited to 20 blocks of Intercon Unlimited Unlimited
Operate as a 2 axis CNC with Manual Quill Included Included Included
Operate as a 2 or 1 axis CNC control Included Included Included
Any axis can be Linear or Rotary Included Included Included
Spindle Encoder feedback,w/ RPM display Included Included Included
Mill Rigid Tapping Not Included Included Included
Lathe Threading Not included Included Included
Lathe Automatic CSS Not Included Included Included
Lathe Rigid Tapping Not included Included Included
Lathe C axis Not Included Not included Included
Lathe Automatic Tool Measurement Unlimited auto measure on: Tools 1,2,3 Unlimited auto measure on all tools. Unlimited auto measure on all tools.
G81 drilling cycles Included Included Included
Compression Tapping Gcode Cycles Included Included Included
Mill G-code scaling and mirroring Included Included Included
True G-code backplot graphics Included Included Included
Run Time Program Graphics Included Included Included
Smart Search (stop and restart at any point) Included Included Included
User Configurable Touch Screen Virtual Control Panel ** Included Included Included
Backlash compensation Included Included Included
Menu driven Part and Tool setup menus Included Included Included
Intercon Teach Mode Limited to 20 blocks of Intercon Unlimited Unlimited
Intercon Drilling cycles: Drilling, Deep Hole, Chip Breaking Limited to 20 blocks of Intercon Unlimited Unlimited
Intercon Pocketing: Circular,Rectangular, Irregular Limited to 20 blocks of Intercon Unlimited Unlimited
Intercon Contouring Limited to 20 blocks of Intercon Unlimited Unlimited
Intercon Threadmilling Limited to 20 blocks of Intercon Unlimited Unlimited
Intercon Conversational Compression Tapping Limited to 20 blocks of Intercon Unlimited Unlimited
Intercon Auto Connect Radius Limited to 20 blocks of Intercon Unlimited Unlimited
Intercon Lathe Cycles. Auto profile cleanout, grooving, cutoff, chamfer, turning, end face turning, Limited to 20 blocks of Intercon Unlimited Unlimited
Intercon Math/Geometry Help Limited to 20 blocks of Intercon Unlimited Unlimited
Operate in Millimeter or Inches Yes Yes Yes
4th axis Jogging Yes Yes Yes
Software Axis pairing. Pair an axes with the 4th or 5th axis. Allows Two axis to be paired axes. No Yes Yes
Auto Squaring of Software Paired axis with auto homing No Yes Yes
Hardware Axis Pairing Yes Yes Yes
4th axis G-code moves: 4&1,4&2,4&3,4&1&2,4&2&3,4&1&3&4, 4&1&2&3 No, "Free" is limited to 3 axis simultaneous . Yes, 4 axis simultaneous movement with full interpolation Yes, 4 axis simultaneous movement with full interpolation.
Scale Input for axis positioning feedback No No Included
M0 Jogging No Included Included
PLC Detective Software Included Included Included
Use one input for all axis Homing Included Included Included
ATC support plugin No Requires ATC Software Plug-in $280 Requires ATC Software Plug-in $280
4 axis Simultaneous G-code moves: No, "Free" is limited to 3 axis of simultaneous moves with single axis 4th,5th,6th axis moves. Yes, 4 axis simultaneous movement with full interpolation. (interpolated moves for any four axes in combination with any others including paired axes.This is 4+2*) Yes, 4 axis simultaneous movement with full interpolation. (interpolated moves for any four axes in combination with any others including paired axes.This is 4+2*)
Simultaneous 5 axis drive moves with one paired axes No, "Free" is limited to 3 axis of simultaneous moves with single axis 4th,5th,6th axis moves. Yes, 4 axis simultaneous movement with full interpolation.(software paired axes are considered 1 axis as it has one label) This is 4+2*. Yes, 4 axis simultaneous movement with full interpolation.(software paired axes are considered 1 axis as it has one label) This is 4+2*.
Simultaneous 6 axis drive moves with two paired axes No, "Free" is limited to 3 axis of simultaneous moves with single axis 4th,5th,6th axis moves. Yes, 4 axis simultaneous movement with full interpolation.(software paired axes are considered 1 axis as it has one label) Yes, 4 axis simultaneous movement with full interpolation.(software paired axes are considered 1 axis as it has one label)
non paired (individual axes) 5,6,7,8 axis Simultaneous G-code moves: No, "Free" is limited to 3 axis of simultaneous moves with single axis 4th, 5th, 6th axis moves. Requires purchase of 6 axis simultaneous interpolated motion software. Requires purchase of Ultimate Plus.

Oak Videos

Hardware Overview
When clicked, this video is loaded from YouTube servers. See our Privacy Policy for details.

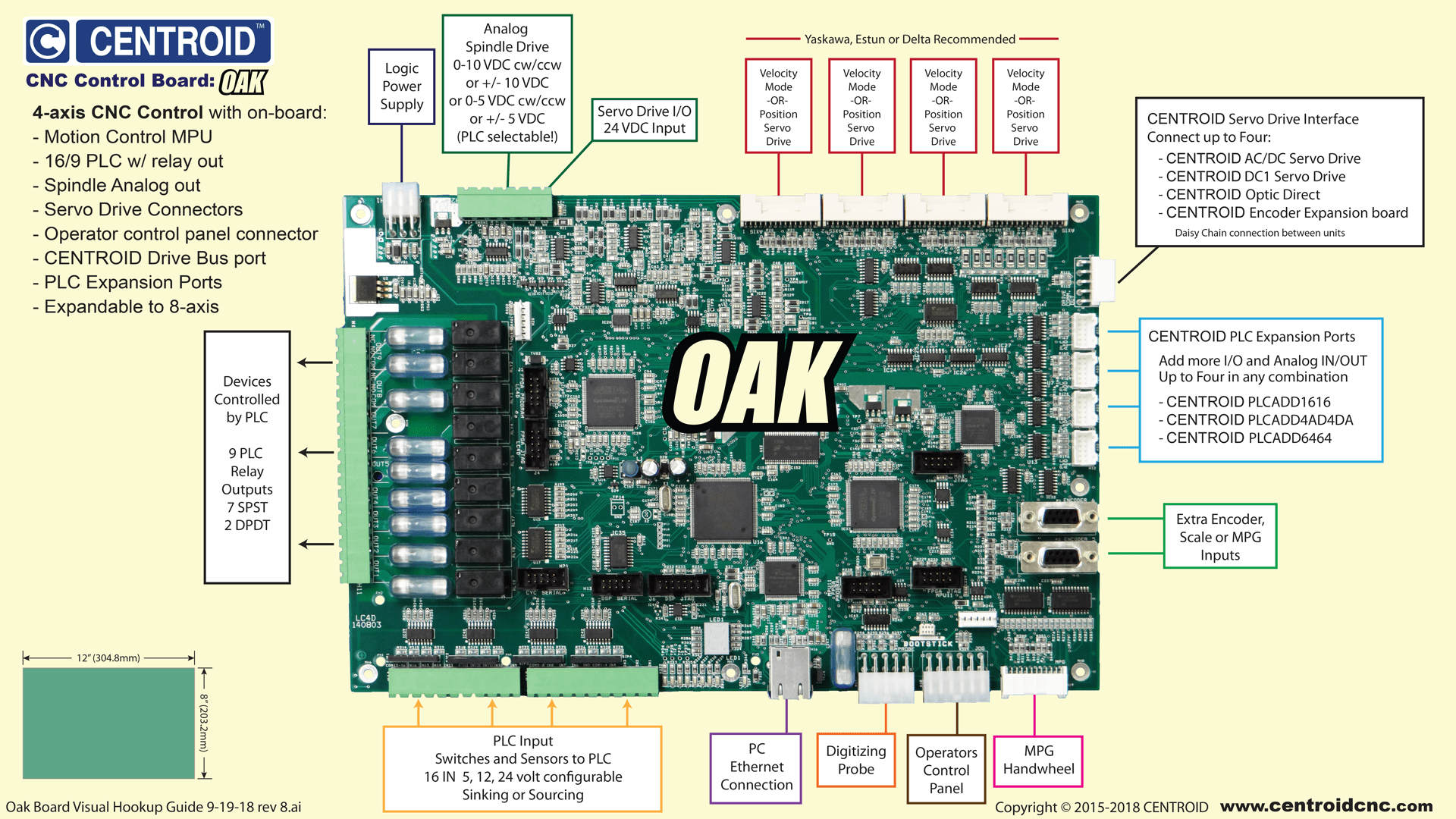

Oak Board Overview

Oak Custom CNC control kits

Call or email for a quote on a custom Oak CNC control kit.
The complete Centroid Oak kit is shown with accessories.
Can't decide what you need?
We will put together a Custom CNC control DIY kit for your particular CNC machine tool:
We've been upgrading machine tools since 1979 and have machine tool knowledge that can save you time and money. We can package the CNC control board, axis motors, encoders, cables, power supplies, and schematics; everything you need, into a custom DIY Oak CNC control kit specific for a specific machine tool. Fill out this CNC control quote request form and we will advise, build and price the cnc system for you.. If reusing servo motors, send us photos of the motors and the motor data plates so we can advise on compatibility with the Oak CNC Controller. Please send to: diysales@centroidcnc.com

Oak CNC Controller Related Equipment and Accessories

Three Yaskawa Sigma motors and VFDs shown
Yaskawa Sigma 5 and 7 Motor and Drive packages
Please call or email sales@centroidcnc.com for a quote! 1-814-353-9256

For new machine tools, retrofit upgrades or as replacement motors. Yaskawa's are high quality, long lasting, powerful servo motor and drive packages.

see more Yaskawa motors an drives and available cable lengths, prices and part numbers on this page..

Yaskawa Servo motor dimensional drawings

Call or email for pricing on larger sizes
Yaskawa to Acorn setup instructions
Yaskawa to Oak setup instructions
YaskawaSigmaWin configuration software download.

$120.00$155.00

Estimated Shipping Date

Ordered
Shipped

Oak Board to Servo Drive Cable (#13134, 13131, 15236, 13133) is a communications cable that connects a servo drive to the Oak CNC controller. One end plugs into the servo drive, and the other end plugs into the Oak CNC control board. Sold in 4 variations.

1.) Yaskawa. Works with Yaskawa Sigma 1,2,5,7 Servo drives
2.) Delta ASD-A or ASD-AB
3.) SureServo2
4.) Flying lead. Servo drive end of cable is left "flying lead" so user can mount any kind of connector necessary to connect to a drive other than Yaskawa, Delta or SureServo2

*Yaskawa cable shown

$299.00

Out of stock

We have sold our stock of WMPG-4 Pendants, they have been replaced with the WMPG-6 which offers control for two additional Axis for the same price as the WMPG-4!

  • WMPG-4 Kit (#8928) includes:
    • 1x WMPG-4 Wireless MPG pendant
    • 1x USB Wireless Transmitter / Receiver
    • 1x Mounting Bracket

Take the control to where the work is! A game changing tool, the Centroid Wireless MPG handwheel CNC Control pendant allows the operator to conveniently and precisely set up jobs and tools remotely. No software or drivers to install. Plug and Play with Centroid CNC12 Pro CNC software, just plug in the included USB transmitter/receiver and start using it! Perfect for all types of Mills, Lathes, Routers and other specialty CNC machines. Controls up to 4 Axes.

Requirements for use with Acorn
- Acorn CNC12 v4.64+ w/ Mill Pro, Mill Ultimate, Lathe Pro, Lathe Ultimate, Plasma Pro, or Plasma Ultimate License

Oak, Allin1DC, Hickory, and MPU11 system Requirements
- CNC12 v4.20+ with Pro or Ultimate License



Compatible with:

$299.00

Estimated Shipping Date

Ordered
Shipped
  • WMPG-6 Kit (#9606) includes:
    • 1x WMPG-6 Wireless MPG pendant
    • 1x USB Wireless Transmitter / Receiver
    • 1x Mounting Bracket

Take the control to where the work is! A game changing tool, the Centroid Wireless MPG handwheel CNC Control pendant allows the operator to conveniently and precisely set up jobs and tools remotely. No software or drivers to install. Plug and Play with Centroid CNC12 Pro CNC software, just plug in the included USB transmitter/receiver and start using it! Perfect for all types of Mills, Lathes, Routers and other specialty CNC machines. Controls up to 6 Axes.

Requirements for use with Acorn
- Acorn CNC12 v4.64+ w/ Mill Pro, Mill Ultimate, Lathe Pro, Lathe Ultimate, Router Pro, Router Ultimate, Plasma Pro, or Plasma Ultimate License

Oak, Allin1DC, Hickory, and MPU11 system Requirements
- CNC12 v4.20+ with Pro or Ultimate License
- Older systems may require a PLC update to fully support WMPG-6 features and functionality



Compatible with:

$699.00

Estimated Shipping Date

Ordered
Shipped
  • KP-3 CNC Touch Probe (#14944) Includes:
    • 1x KP-3 Probe
    • 1x 2.5 mm x 40mm Carbide Stem, Ruby Tipped Stylus
    • 1x Stylus Wrench
    • 1x KP-3 to bulkhead cable
    • 1x Bulkhead to Oak/Allin1DC cable
    • 1x KP-3 Users Manual

Part, Vise and Fixture Probing: Automatically Set Zero points fast and accurate.
Use the KP-3 probe to quickly and accurately find zero points on a vise, fixture or part. Eliminate operator error when setting zero points, finding edges, or center locations of bosses or bores, slots and webs. Eliminates the need for a centerfinder or an edgefinder. You'll never have to spend 30 minutes using a center finder to locate the center of a bore again. The probe will find and set the center of a bore in just seconds. In addition the probe can be used to verify part dimensions and locations and many other applications. The KP-3 mounts in any 1/2" or 10mm tool holder and has concentric adjustment screws. Also compatible with Mach3/4, WinCNC, LinuxCNC, Pathpilot and others.

KP-3 Specifications
   -Probing directions X+/-, Y+/-, Z-
   -Unidirectional repeatability (2 sigma) 0.00006” (1.5 micron)
   -Practical use results on a good milling machine .0005”
   -Probe deflection force (X,Y) 3 ounce minimum with 40mm stylus
   -Probe deflection force (Z) 15 ounce minimum
   -Probe body diameter and length D= 1.35” (34.3mm) L= 2.16” (54.9mm)
   -Mounting shank diameter and length D= 0.5” (12.7mm) L= 1.47” (37.3mm)
   -Stylus mount thread M3 thread
   -Power supply required: none
   -LED status indicator red when triggered (powered by input 1ma)
   -Weight of probe and ½”shank 0.40 lb
   -Over travel limit angle (X,Y) +/- 12 degrees from vertical
   -Over travel limit (Z-) 0.25” (6.25mm)
   -Environmental IP64
   -Patented concentric alignment (spindle/tool holder/probe body run out adjustment)



Compatible with:

$660.00

Estimated Shipping Date

Ordered
Shipped
  • TT-4 Oak/Allin1DC/MPU11 Kit (#15134) includes:
    • 1x TT-4 Tool Touch Probe
    • 1x Carbide Touch Surface
    • 1x TT-4 to bulkhead cable
    • 1x Bulkhead to Oak/Allin1DC cable (not shown)

Mill or Router use. Quickly and accurately setup tool heights in the tool library with a push of a button. The CENTROID TT-4 automatic tool height offset touch probe is plug and play with all Centroid CNC controls. Eliminates gauge blocks, paper, and repeated measurements. Save time and increase accuracy. Fully integrated into the CNC control tool library menu, just select the tool and press auto measure to set the tool height automatically. Makes measuring all types of tools faster and more accurate. Find the longest insert in a multiple insert tool quickly. Once you start using the TT-4 you'll wonder why you waited to purchase this time saving tool. Measure just one tool or a whole group of tools at once. Can also be used in the middle of a job to measure a replacement tool. Integrated with an Automatic tool changer for batch tool measurement. The TT-4 is based on KP-3 touch probe technology and is a robust kinematic design and works with all spindles even ones that with non-conductive bearings (ceramic) or tooling that doesn't conduct (diamond). Note: Also compatible with most all other CNC controller such as but not limited to: Mach3/4, WinCNC, LinuxCNC, Pathpilot and others.



Compatible with:

$725.00

Estimated Shipping Date

Ordered
Shipped

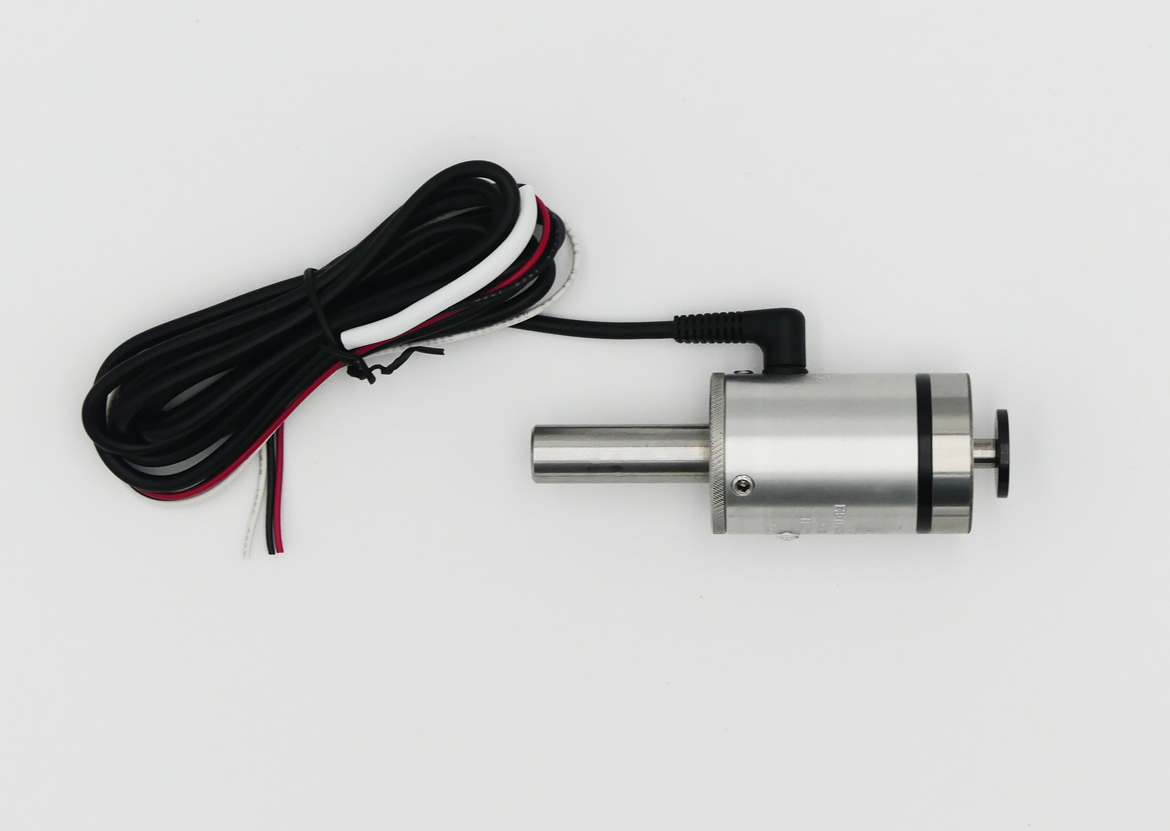

  • TT-4 Oak/Allin1DC/MPU11 Kit (#15275) includes:
    • 1x Lathe TT-4 Tool Touch Probe
    • 1x Carbide Touch Surface
    • 1x 1/2" Mounting Shank
    • 1x TT-4 to bulkhead cable
    • 1x Bulkhead to Oak/Allin1DC cable (not shown)

For Lathe use. Quickly and accurately setup tool heights in the tool library with a push of a button. The CENTROID Lathe TT-4 automatic tool height offset touch probe is plug and play with all Centroid CNC controls. Eliminates gauge blocks, paper, and repeated measurements. Save time and increase accuracy. Fully integrated into the CNC control tool library menu, just select the tool and press auto measure to set the tool height automatically. Makes measuring all types of tools faster and more accurate. Find the longest insert in a multiple insert tool quickly. Once you start using the Lathe TT-4 you'll wonder why you waited to purchase this time saving tool. Measure just one tool or a whole group of tools at once. Can also be used in the middle of a job to measure a replacement tool. Integrated with an Automatic tool changer for batch tool measurement. The Lathe TT-4 is based on KP-3 touch probe technology and is a robust kinematic design and works with all spindles even ones that with non-conductive bearings (ceramic) or tooling that doesn't conduct (diamond).



Compatible with:

$2,990.00$3,909.00

Estimated Shipping Date

Ordered
Shipped

Centroid Oak CNC Operator's Console with Integrated CNCPC (#13181) Features:
- 15" Touch Screen full color LCD display
- Dedicated Operator Control Panel with extra programmable buttons
- USB ports
- Thin at 2.88" Thick
- Made in USA Steel construction
- Uses Standard USB keyboards, keyboard included
- Variety of mounting possibilities
- Compatible with Allin1DC, OAK and MPU11 systems. (not compatible with Acorn)
- Optional Custom Control Panel Overlays are made to order for specialty machine tools. call or email for details.
- Preloaded Centroid CNC software (Free Version) with G code Editor, Intercon, Stock PLC programs, Touch Screen Operators Control Panel (VCP)

Note: Optional MPG Shown in photo with Console

Available with built-in CNCPC or without CNCPC.
Available in "panel mount" configuration for mounting in existing console enclosure. (Panel Mount = made to bolt into an existing machine tool console space. Typically used on large machines with a preexisting CNC control so existing console hardware can be re purposed with new Centroid CNC operators console. )

Build your own console to machine mounting hardware or use any of Centroid various Arm and Console Floor Stand mounting options, click here for dimensional drawings

Download Centroid CNC console brochure click here..


Depending on our current order volume, it may take us 2 days of processing before we are able to ship your order.


Compatible with:

$810.00

Estimated Shipping Date

Ordered
Shipped

Centroid Operator's Control Pendant (#11077):
Centroid CNC software allows operator machine control through a number of different methods.
This Operator's Control Pendant is for when hard buttons are preferred over touch screen controls. Useful on large and small machine tools alike when setting up parts, fixtures and tools, the pendant allows the operator to take the controls to where the work is. Steel case with magnets on the back and rubber handles, this control pendant uses the same operator control panel found in the M400/T400 CNC console.
The control panel can be removed from the pendant and flush mounted in your own console enclosure as well.

A lower cost ($0) alternative to this piece of hardware is the software based Touch Screen Virtual Machine Control Panel (VCP). The VCP allows the functionality of this Hardware based Operators Control Pendant when using a Touch Screen LCD as the CNC control display. The touch screen VCP is included with Centroid CNC control software CNC12 v4.12+ and can be used without or in conjunction with this hardware based Operator's Control Pendant.

Longer cords up to 50' are available call for quote or just use the Wireless MPG for long distance applications.

Same control panel that is on the M400/T400 CNC consoles but placed in a box with a 20' cord.



Compatible with:

$455.00

Estimated Shipping Date

Ordered
Shipped

PLCAdd1616 I/O Expansion Board (#11025) Features:
- Add an additional 16 optically isolated inputs and 16 relay outputs to the Allin1DC
- Plug and Play, PLCAdd1616 to Allin1DC and Oak communication cable included.
- Typically used to control an Automatic Tool Changer
- User definable inputs and outputs
- User configurable, commanded by the Allin1DC PLC program
- PLCAdd1616 user manual

The PLCADD1616 is a PLC expansion board used to add digital inputs and outputs to a compatible host PLC. The PLCADD1616 has 16 relay outputs and 16 optically isolated inputs. The PLCADD1616 communicates with a host PLC through a cable connection to an expansion port. The host PLC may have up to 16 PLC expansion ports, labeled “PLC ADD 1” through “PLC ADD 16”. The PLCADD1616 may connect to any available expansion port. See the PLCAdd1616 user manual for more information.



Compatible with:

$600.00

Estimated Shipping Date

Ordered
Shipped

Add4AD4DA Expansion Board (#11141) Features:
- Add additional 4 analog to digital inputs and 4 analog to digital
- Plug and Play, Add4AD4DA to Oak communication cable included
- Typically used for multiple spindle machines tools with individual VFD's for each
- User configurable, commanded by the PLC program
Add4AD4DA user manual

The ADD4AD4DA is a PLC expansion board used to add analog inputs and outputs to a compatible host PLC. The ADD4AD4DA has 4 analog outputs and 4 analog inputs. Four voltage output ranges are available on each analog output. Each analog output has a block of five DIP switches that must be set properly to get the desired output range. Please see the Add4AD4DA Manual for more information.



Compatible with:

$395.00

Estimated Shipping Date

Ordered
Shipped

Encoder/Scale Expansion Board (#13085) Features:
- Add additional 6 Encoder or Scale ports to an Oak Board
- Plug and Play, Encoder Expansion board to Oak communication cable included
- Typically used for multiple MPG or Scale inputs.
- User configurable
Encoder Expansion Board user manual

The Encoder Expansion Board can support standard differential quadrature encoders or BiSS serial protocol encoders. Standard encoders must have output levels compatible with the specifications in the “ENCEXP Specifications” table found in the manual. Standard encoders have “A” and “B” signals to transmit position information. A signal edge must be produced for every count of position change, which may limit the top speed, particularly on high resolution models. Check both the encoder’s maximum frequency and “quadrature encoder input frequency” in the “ENCEXP Specifications” table in the manual to determine the maximum RPM an encoder is capable of before use. More information is available in the Encoder Expansion Board user manual.



Compatible with:

$500.00

Estimated Shipping Date

Ordered
Shipped

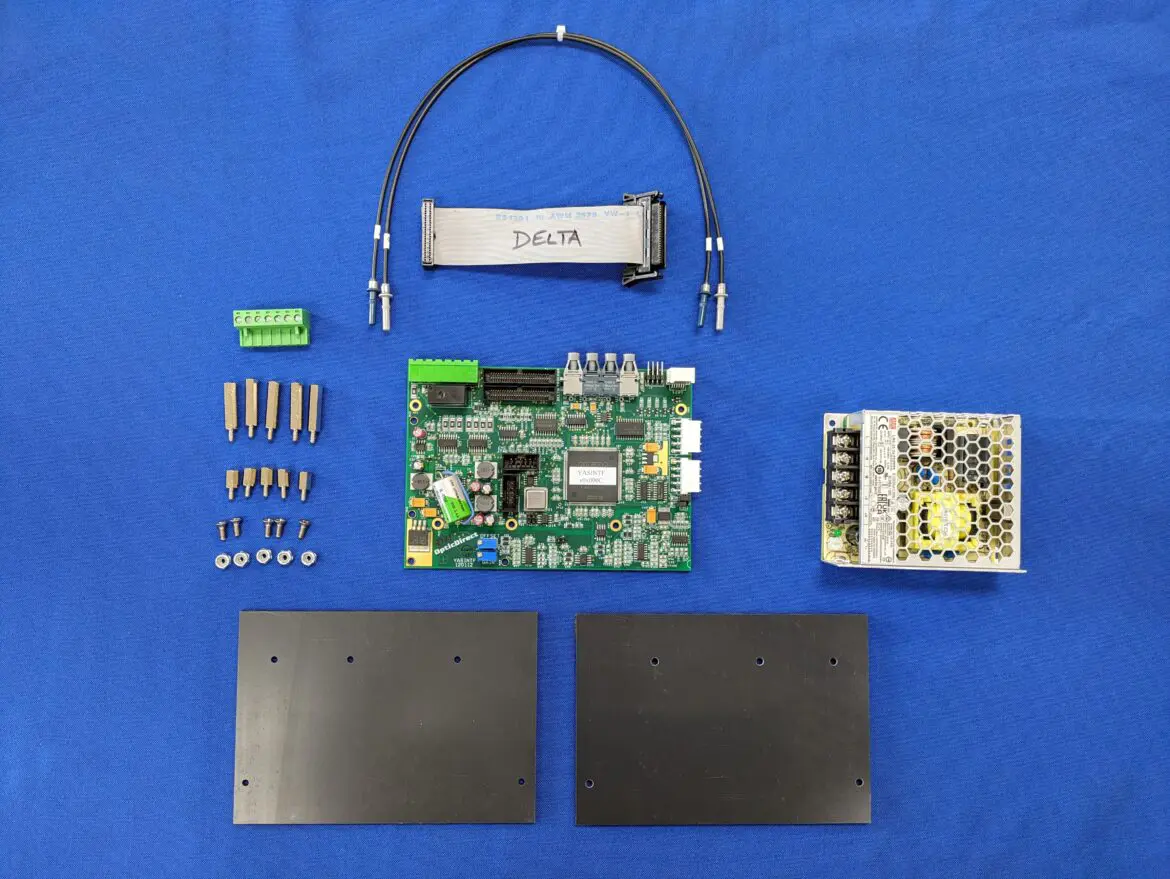

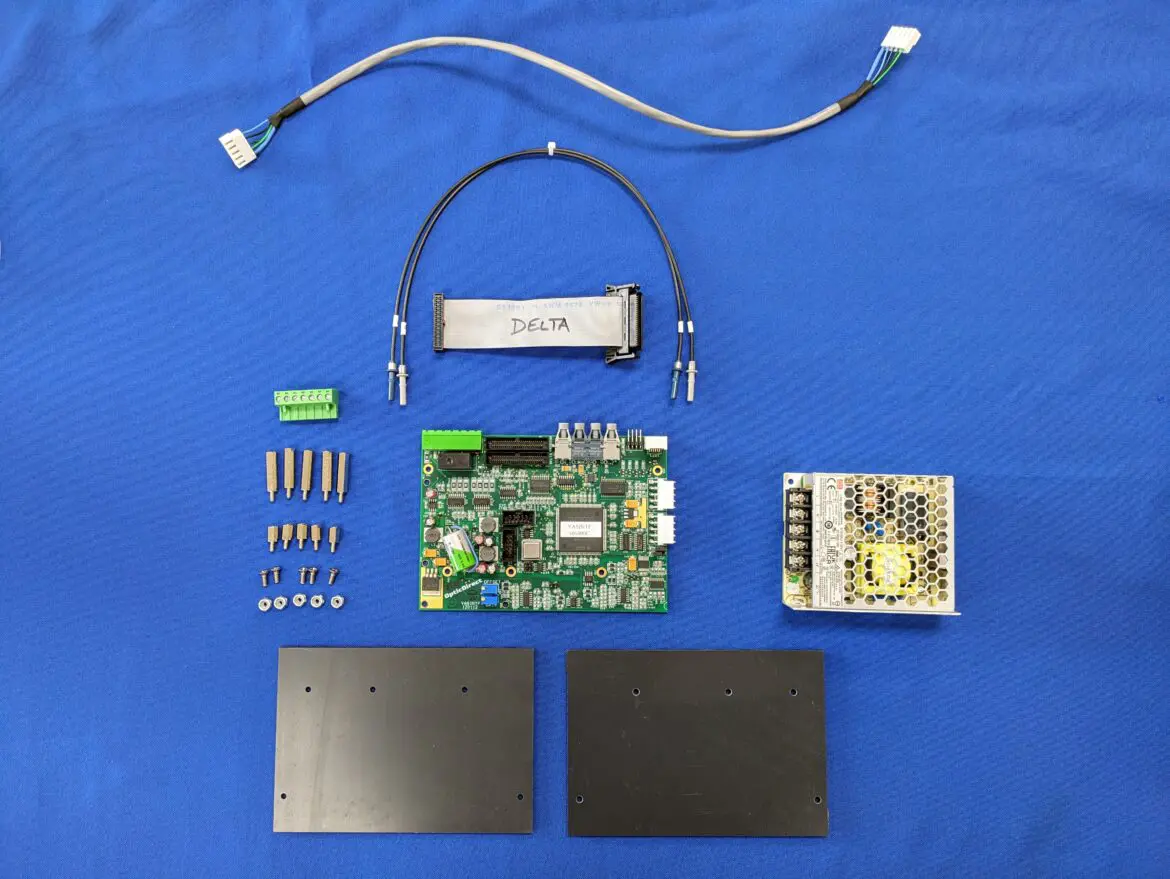

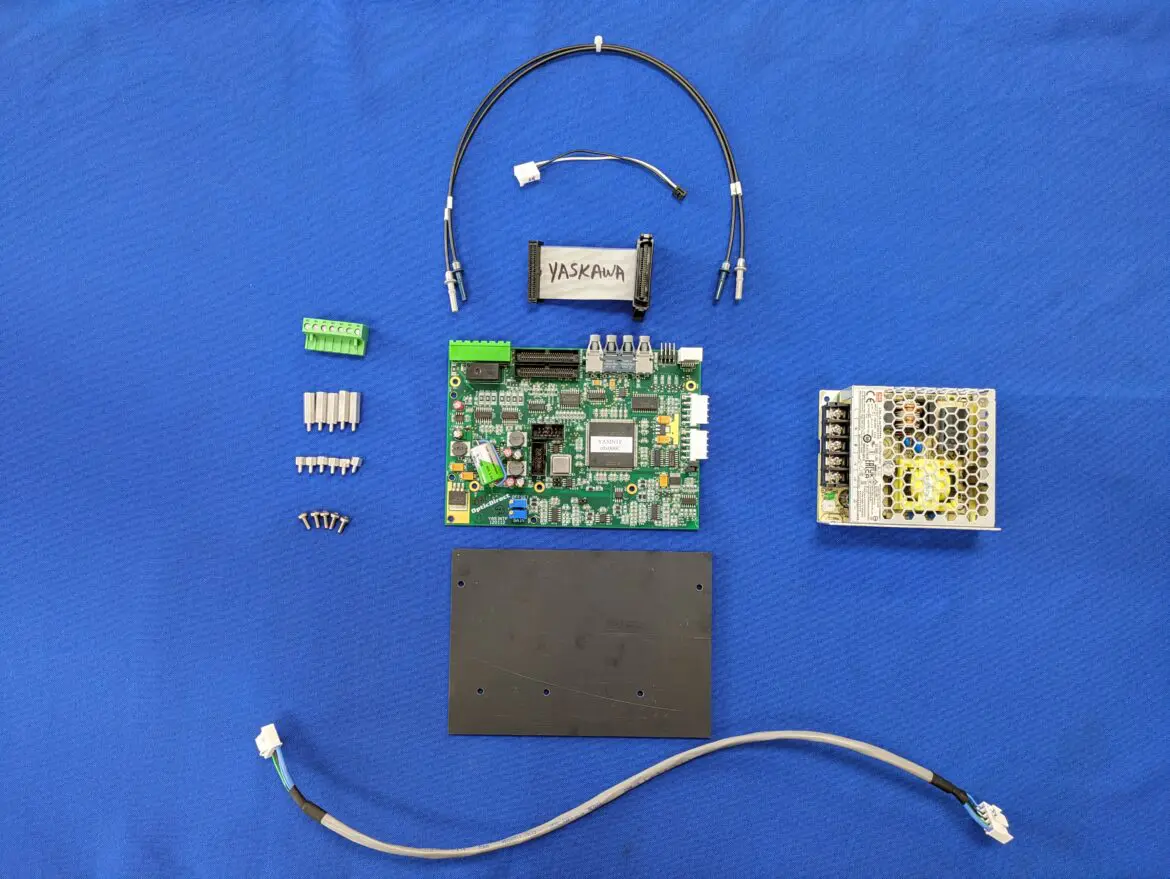

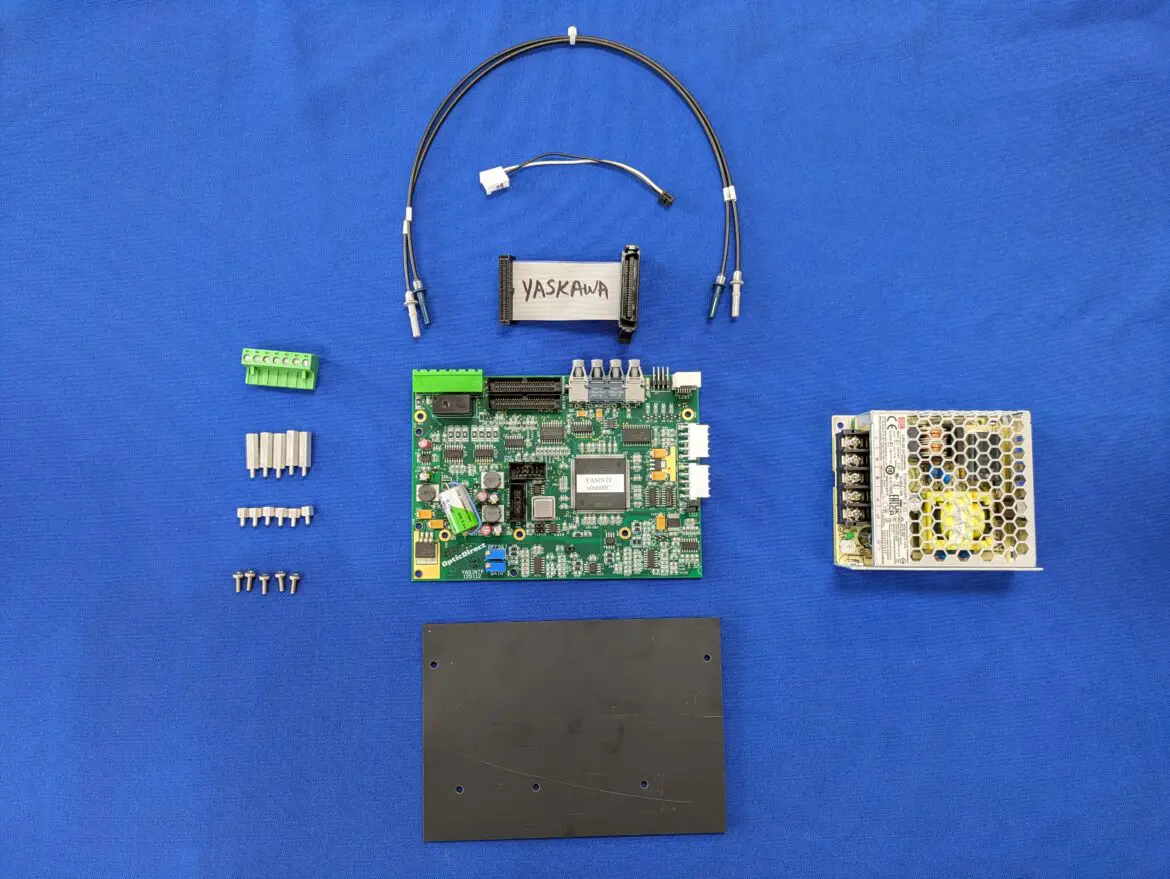

OpticDirect Axis Expansion Board (#13189) includes:
  1x OpticDirect Board
  1x OpticDirect cover plate
  1x LRS-35-24 Power Supply
  2x Fiber Optic Cables

Kit for Delta ASDA-A2 also includes:
  1x OpticDirect mounting plate
  5x 6-32x3/8" standoffs
  5x 6-32x1" standoffs
  5x 6-32 nylon insert lock nuts
  1x 5" long ribbon cable

Kit for Yaskawa Sigma 5/7 also includes:
  5x M3x0.5x5mm standoffs
  5x M3x0.5x20mm standoffs
  5x M3x0.5x5mm screws
  1x 2.75" long ribbon cable

When purchasing for use with an Oak Control Board the OpticDirect kit comes with a drive communication cable.

Easily add a 5th, 6th, 7th, or 8th axis to the Oak Board. The OpticDirect allows you to add an additional axis to the Oak Board’s build in 4 axis communications. One Optic Direct adds one additional axis to the system. Compatible with Yaskawa Sigma 5/7 and Delta ASDA-A2.

Comes with appropriate cable to plug into the drive. Also comes with mounting hardware to mount on the side of the drive.


Compatible with:

$1,600.00$1,700.00

Estimated Shipping Date

Ordered
Shipped
  • Centroid AC/DC Servo Drive (#12854,#12855) includes:
    • 1x AC/DC Servo Drive

The CENTROID AC/DC drive can power AC brushless servo motors (or large DC motors, hence the name AC/DC drive) with ratings of up to 4kW or 30 amps continuous output. Up to 8 axis can be controlled simultaneously. Popular on production machines where very high rapid rates are desired and on large machines which require high torque axis motors. The AC/DC drive can be used to run existing AC brushless servo motor when upgrading an existing CNC control saving money and installation time. Some motors will require an encoder upgrade. Please Email diysales@centroidcnc.com or Call 814-353-9256 to confirm compatibility with your servo motors before purchasing.


Compatible with:

Use your own PC OR purchase a Centroid CNCPC

$1,350.00

Estimated Shipping Date

Ordered
Shipped
  • All-in-one Touch Screen CNCPC (#15021,15022) Features:
    • - Pre-loaded with Windows 10/11
    • - Pre-configured for CNC PC duty
    • - Pre-loaded with Centroid CNC software
      • G code Editor
      • Intercon
      • Stock PLC programs
      • Touch Screen Operator Control panel
      • Acorn Install Wizard
    • - Touch Screen
    • - Wifi, Ethernet, webcam with mic, card reader, USB ports
    • - Powercord, Keyboard, Mouse
    • - Centroid tested and pre-qualified to work with Centroid CNC controllers
  • NOTES:
    • Model, Specifications and COLOR may vary.
    • There are NO VESA mounting holes on this unit.

The Centroid ALLIN1PC comes pre-configured for CNC Duty. It's ready to use and communicate with our Controls. The PCs run Windows 10/11 and are equipped with a Touchscreen. Product may vary from image.


Compatible with:

Planning to build or use your own PC as a CNCPC?

Be sure the PC meets the Centroid CNCPC minimum requirements found here.
The Centroid CNC software runs on any Windows 10/11 PC that meets the requirements.

- If you plan to build your own CNCPC follow the recommendations here.
- If you plan to buy your own PC, we recommend the Intel NUC (be sure to purchase a NUC that meets the Centroid minimum pc requirements) and a 1920x1080, 16:9 aspect ratio, Touch Screen monitor

$1,050.00

Estimated Shipping Date

Ordered
Shipped
  • Centroid NUC CNCPC kit (#15024,#15023) includes:
    • 1x Intel NUC
    • 1x 100-240 VAC power brick
    • 1x Pre-installed and pre-configured SSD
      • w/ Windows 10/11
      • w/ CNC12
  • Centroid NUC CNCPC Features:
    • - Use a LCD monitor (regular or Touch screen) , 1920x1080 recommended
    • - Preloaded with a licensed copy of Windows 10/11 and Windows is pre-configured for CNC PC duty
    • - Preloaded Centroid CNC12 software Mill, Router, Lathe and Plasma Free version
    • - Preconfigured with Centroid Software
    • - Pre configured Notepad ++ G code Editor
    • - Mill, Lathe, Plasma Intercon Conversational
    • - Centroid CNC setup Wizard
    • - Touch Screen Operator Control compatible
    • - Intel processor and SSD (solid state drive)
    • - Display port, HDMI, Ethernet, USB
    • - Powercord, Keyboard, Mouse
    • - Centroid tested and pre-qualified to work with Centroid CNC controllers
  • NOTES:
    • Model, Specifications and COLOR may vary.



Compatible with:

Additional Accessories

$159.00

Estimated Shipping Date

Ordered
Shipped
  • Centroid Offline INTERCON (#10730) Features:
    • - For those that do not want to use or learn a CAD/CAM system to make CNC parts.
    • - Program parts in the comfort of your office.
    • - Program while the machine is running a job.
    • - Easy part program transfer from your PC to the control via LAN or USB.
    • - True G-code backplot graphics, see exactly what the machine toolpath will be.
    • - Use on the same PC as your CAD system.
    • - A USB Keylock allows user to install software on as many computers as they want.
    • - Offline programming USB keylock is shipped the next business day.
    • - Works with Windows 7/8/10/11*
    • Manual with tutorial examples see Mill Chapter 10, Lathe Chapter 7
    • - Download offline conversational programming software here
      • Scroll down to Oak and Allin1DC section.

The offline programming software runs without USB keylock but limited to 20 lines of Intercon. Plug in the USB keylock for unlimited conversational programming operation.

Installation instructions here and a video showing installation of Offline INTERCON.

$45.00

Estimated Shipping Date

Ordered
Shipped
  • Emergency Stop Button (#14534) includes:
    • 1x E-Stop Button

- Industrial quality reliable Emergency Stop Button with two switches.
- Two contact closures for two estop circuits
- Use just one contact closure or use both
- For use with the Acorn, Allin1dc and Oak CNC control boards.
- Thru Hole Panel Mount

$335.00$385.00

Estimated Shipping Date

Ordered
Shipped

Wired MPG (#11069) Features:
- 100 pulses per rev
- Axis Selector for 6 axes
- Increment amount selector (user configurable in CNC10/11/12)
- For use with Allin1dc and Oak CNC control boards.
- High quality construction with gold plated connector pins
- Hook hanger mount and magnets on the back of the unit
- Pre configured for use with Centroid CNC10/11/12 control software
- Plug and Play with Oak/Allin1DC cnc controls running CNC11 or CNC12 software

Looking for an MPG for an older CNC10 system? Please email us your system serial number.
CNC10 Kits numbers had 5 digits (Note: if you have a 6 digit Kit number that is a CNC11/CNC12 system).
How to locate serial number

Use the Manual Pulse Generator to jog the machine tool, very useful for part and tool setups. Order with or without internal bulk head cable. If you have a factory built M400/T400 CNC control or if you ordered the CNC console conduit cable kit you do not need to buy the internal bulkhead cable. If you are building a DIY CNC control based on the Oak cnc controller you will need the internal bulkhead cable to connect this MPG to the Oak or Allin1DC board.



Compatible with:
Shopping cart0
There are no products in the cart!
Continue shopping
Code Snippet ma-gdpr-youtube 1.5.0
