• Centroid Acorn CNC controller kit (#14455) includes:
  • 1x Acorn CNC control board
  • 1x Acorn Plug and Play Relay8 Module
  • 1x Dual power 5 VDC and 24 VDC logic power supply
    • 50/60 Hz 100-120 VAC/208-240 VAC input power
  • 1x Logic power supply hookup leads
  • 1x 110 VAC power cord
  • 1x 15’ Shielded Ethernet cable
  • 1x Plexi Acorn Cover
  • 4x 6-32x3/4" Standoffs for Acorn Cover
  • 4x 6-32x3/8" Screws for Acorn Cover

• Additional Acorn highlights:
  • Comes with Centroid CNC12 "Free" CNC Software Download, Pro and Ultimate Software sold separately
  • Touch Screen Responsive Operator Controls
  • DIY self-service CNC support thru Centroid Community CNC Forum which is Centroid Technician monitored and maintained.
  • Optional Factory Direct Technical Support: $120/hr.

(Note: A 1920x1080 wide screen LCD Display is required and a Touch Screen is recommended.)

Acorn CNC control kits are both a CNC Hardware and CNC Software DIY system designed to work together for easy CNC setup and operation with minimal fuss.

Centroid “Acorn” Step and Direction CNC Controller kit: a 4 axis CNC control with built-in motion control CPU.

A reliable, high performance, industrial quality CNC control at a do-it-yourself price. Acorn utilizes an integrated 1Ghz ARM Cortex A8 Motion Control CPU and communicates with CNCPC via a fast and reliable Ethernet connection. The Acorn CNC control board controls a wide variety of axis motors and drives with industry standard step and direction command signal. Perfect for many types of machine tools such as: CNC milling machines, a wide variety of CNC Routers, CNC lathes to CNC Lasers, and other specialty applications. Compatible with small to large axis motors of all types and can be used with most any AC brushless servo motor drive packages such as: DMM, Delta, Estun, Teco, Teknic, Yaskawa and others. Any drive that accepts step and direction commands. Most all stepper motor drives are compatible with the Acorn board such as the popular Gecko and Leadshine stepper drives. Acorn runs on Centroid’s proven industrial quality CNC control software.

• Centroid AcornSix CNC controller kit (#15136) includes:
  • 1x AcornSix CNC control board
  • 2x Acorn Plug and Play Relay8 Module
  • 1x Dual power 5 VDC and 24 VDC logic power supply
    • 50/60 Hz 100-120 VAC/208-240 VAC input power
  • 1x 15’ Shielded Ethernet cable
  • 1x Riser Mounting Pan

• Additional AcornSix highlights:
  • Comes with Centroid CNC12 "Free" CNC Software Download, Pro, Ultimate, and Ultimate Plus Software sold separately
  • Touch Screen Responsive Operator Controls
  • DIY self-service CNC support thru Centroid Community CNC Forum which is Centroid Technician monitored and maintained.
  • Optional Factory Direct Technical Support: $120/hr.

(Note: A 1920x1080 wide screen LCD Display is required and a Touch Screen is recommended.)

Acorn CNC control kits are both a CNC Hardware and CNC Software DIY system designed to work together for easy CNC setup and operation with minimal fuss.

Centroid "AcornSix" Step and Direction CNC Controller kit: a 6 axis CNC control with built-in motion control CPU.

A reliable, high performance, industrial quality CNC control at a do-it-yourself price. AcornSix utilizes an integrated 1Ghz ARM Cortex A8 Motion Control CPU and communicates with CNCPC via a fast and reliable Ethernet connection. The AcornSix CNC control board controls a wide variety of axis motors and drives with industry standard step and direction command signal. Perfect for many types of machine tools such as: CNC milling machines, a wide variety of CNC Routers, CNC lathes to CNC Lasers, and other specialty applications. Compatible with small to large axis motors of all types and can be used with most any AC brushless servo motor drive packages such as: DMM, Delta, Estun, Teco, Teknic, Yaskawa and others. Any drive that accepts step and direction commands. Most all stepper motor drives are compatible with the AcornSix such as the popular Gecko and Leadshine stepper drives. AcornSix runs on Centroid's proven industrial quality CNC control software.

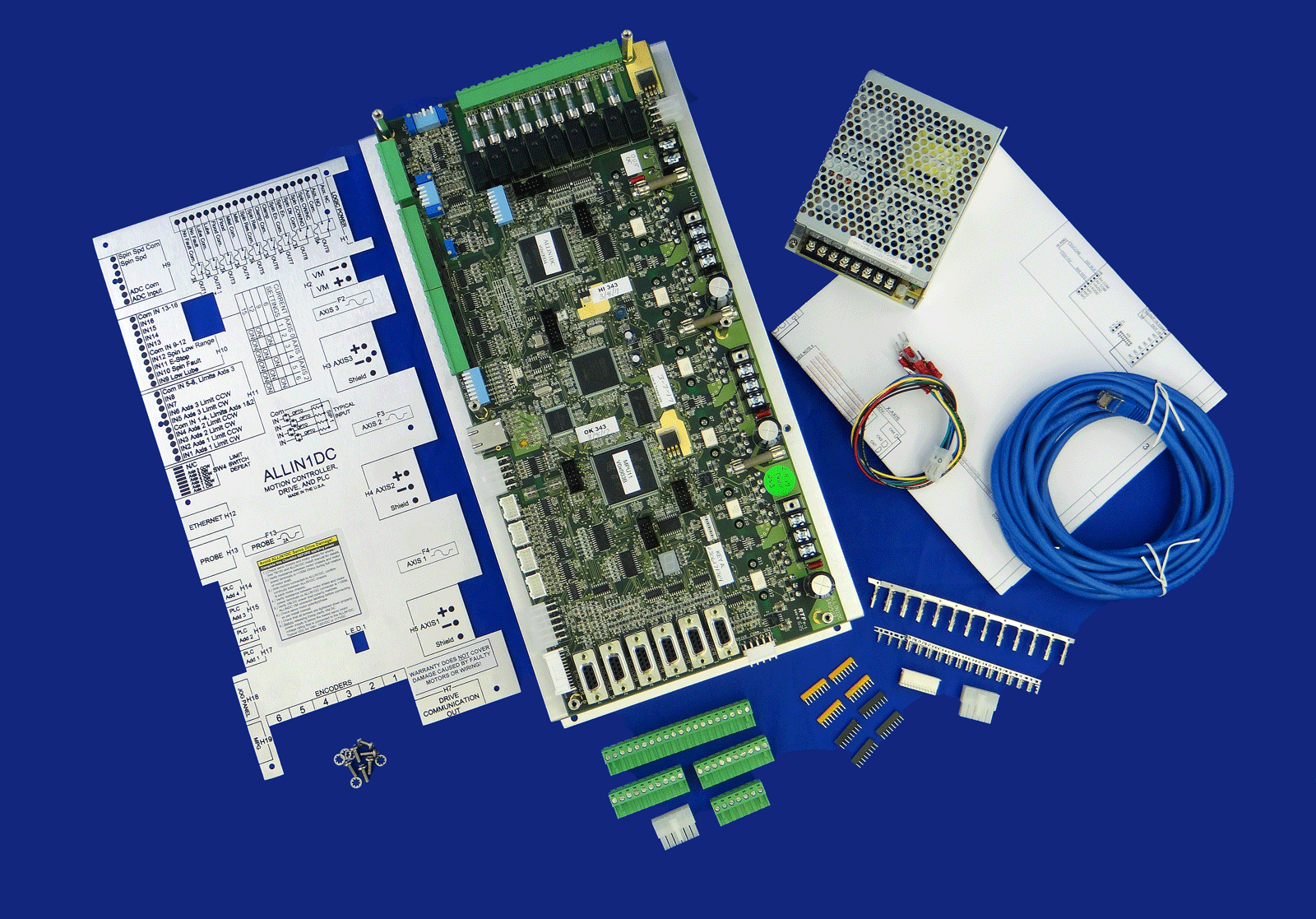

Centroid Allin1DC CNC controller kit (part # 14999) includes:

- Allin1DC CNC control board; a True Closed Loop CNC controller
- Logic power supply with power leads
- DIY Cable connector kit
- 15’ Shielded Ethernet cable
- 3-Axis Digital Servo Drive, drives up to 40in-lb/4.52Nm DC servos up to 180VDC
- Typical CNC machine tool pre-programmed PLC Inputs and Outputs
- Mill and Lathe Conversational Programming Software
- Installation and Operator’s manuals PDF
- Full Size Paper Wiring Schematic
- DIY self service CNC support through Centroid Community CNC Forum which is Centroid Technician monitored and maintained.
- Optional Centroid Factory Engineer remote or phone technical support
- Centroid CNC12 "FREE" version of CNC software. (Purchase Pro or Ultimate for additional feature set, see below.)

Centroid "Allin1DC" DC servo motor based closed loop CNC Controller
A reliable, high performance, industrial quality CNC control available for do-it-yourself CNC control builders. The Allin1DC utilizes an integrated Motion Control CPU and communicates with CNCPC via a fast and reliable Ethernet connection. The Allin1DC control board includes a powerful 15 amp per axis 3 axis digital DC servo motor drive along with a pre configured PLC with built in I/O. Perfect for many types of machine tools such as: CNC milling machines, a wide variety of CNC routers and CNC lathes and other specialty applications. Typically used on CNC machine tool upgrades for older DC servo motor based CNC controls such as Bridgeport, Anilam, Dynapath, Mititoyo, and many more, The Allin1DC allows reuse of the existing DC servo motors saving time and money. The Allin1DC runs on Centroid proven industrial quality Mill or Lathe CNC control software.


Depending on our current order volume, it may take us 5 days of processing before we are able to ship your order.


Centroid Hickory CNC controller kit (part # 14924) includes:
- Hickory control board
- Qty. 4 Plug and Play Relay 8 Modules
- Logic power supply with power leads
(50/60 Hz 100-120 VAC and 208-240 VAC input power)
- Connector kit
- 15’ Shielded Ethernet cable
- Riser Mounting Pan
- Typical CNC machine tool pre-programmed PLC Inputs and Outputs
- Mill and Lathe Conversational Programming Software
- Installation and Operator’s manuals PDF
- Full Size Paper Wiring Schematic
- DIY self-service CNC support through Centroid Community CNC Forum which is Centroid Technician monitored and maintained.
- Centroid CNC12 "FREE" version of CNC software. (Purchase Pro or Ultimate for additional feature set, see below.)

Introductory Offer

- 1 Hour Tech Support included Free

Centroid "Hickory" closed loop CNC Controller.

A reliable, high performance, industrial quality CNC control. Hickory utilizes an integrated Motion Control CPU and communicates with both the CNCPC and the Servo Drives via a fast and reliable EtherCat connection. The Hickory is an 8 axis CNC control board. Perfect for many types of machine tools such as: CNC milling machines of all types, Turning Centers, and a wide variety of CNC Routers and other specialty applications. Typically used on CNC machine tools where a high performance CNC control is needed. Hickory utilizes only approved AC brushless servos with EtherCat communication protocol, compatible drives with Hickory are: Yaskawa Sigma 7, Glentek Gamma series, Estun Summa, Leadshine EL7 and EL8, Inovance SV660N. More makes and models will be added to the compatibility list as we test them. Currently there is no guarantee from Centroid when using Hickory with any other drive other than the Centroid curated drives listed. We are working on Delta at the moment and welcome the opportunity to test others as well.

Hickory significantly reduces electrical cabinet cabling and labor. Hickory is absolute encoder compatible which further reduces cabling, labor and cost to install the CNC control, as well as added convenience to the operators day to day operation in time savings, reduced mistakes and scrap parts due to the elimination of machine homing and resetting of work coordinate systems, the machine always knows where it is at even when the power is off.


Depending on our current order volume, it may take us 5 days of processing before we are able to ship your order.


Centroid Oak CNC controller kit (#15000) includes:
- Oak control board
- Logic power supply with power leads
- Connector kit
- 15’ Shielded Ethernet cable
- Centroid CNC12 CNC Mill and Lathe FREE version of software, see below
- Typical CNC machine tool pre-programmed PLC Inputs and Outputs
- Mill and Lathe Conversational Programming Software
- Installation and Operator’s manuals PDF
- Full Size Paper Wiring Schematic
- DIY self service CNC support through Centroid Community CNC Forum which is Centroid Technician monitored and maintained.
- Centroid CNC12 "FREE" version of CNC software. (Purchase Pro or Ultimate for additional feature set, see below.)
- Optional Centroid Factory Engineer remote or phone technical support

Centroid "Oak" closed loop CNC Controller.
A reliable, high performance, industrial quality CNC control at a do-it-yourself price. The Oak utilizes an integrated Motion Control CPU and communicates with CNCPC via a fast and reliable Ethernet connection. The Oak is a 4 axis CNC control board that is expandable to 8 axis of simultaneous motion. Perfect for many types of machine tools such as: CNC milling machines of all types, Turning Centers and a wide variety of CNC routers and other specialty applications. Typically used on CNC machine tools where a high performance CNC control is needed. Typically used with AC brushless servo in full closed loop operation but also can control DC servos as well. Yaskawa, Delta and SureServo2 are the only DIY recommended servo drive packages for use with Oak. While many other drives have been used with Oak successfully they are NOT a DIY project and are done by seasoned CNC integrators. For DIY sales there is no guarantee from Centroid when using Oak with any other drive other than Delta ASDA-A2, ASDA-B2, Yaskawa Sigma 1,2,5,7 or SureServo2.


Depending on our current order volume, it may take us 5 days of processing before we are able to ship your order.
