Take the control to where the work is! A game changing tool, the Centroid Wireless MPG handwheel CNC Control pendant allows the operator to set up jobs and tools conveniently and precisely remotely. No software or drivers to install. Plug and Play with Centroid CNC12 Pro CNC software, just plug in the included USB transmitter/receiver and start using it! Perfect for all types of Mills, Lathes, Routers and other specialty CNC machines. Control up to Six Axes from the palm of your hand! Multiple units can be used in the same location without issue.
Requirements for use with Acorn
- Acorn CNC12 v4.64+ w/ Mill Pro, Mill Ultimate, Lathe Pro, Lathe Ultimate, Router Pro, Router Ultimate, Plasma Pro, or Plasma Ultimate License
Oak, Allin1DC, Hickory, and MPU11 system Requirements
- CNC12 v4.20+ with Pro or Ultimate License
- Older systems may require a PLC update to fully support WMPG-6 features and functionality

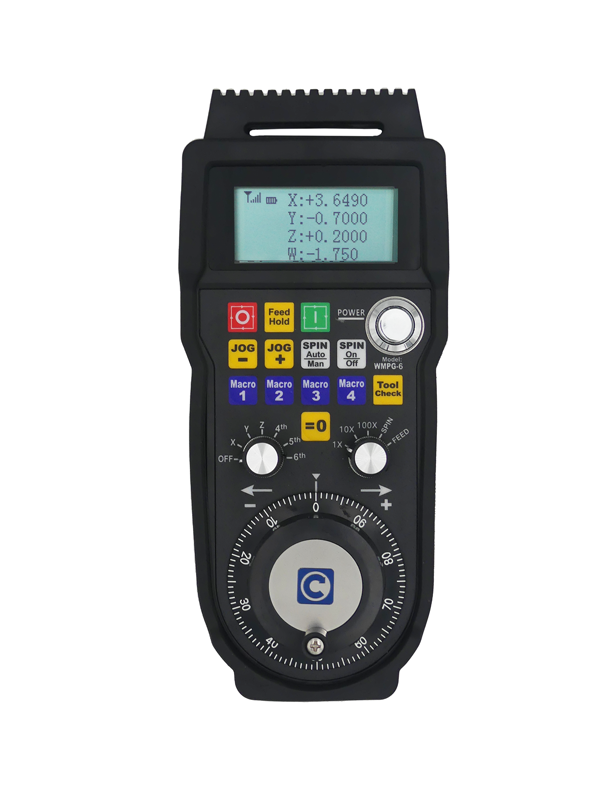

WMPG-6 CNC Control Pendant
$299.00
- WMPG-6 Kit (#9606) includes:
- 1x WMPG-6 Wireless MPG pendant
- 1x USB Wireless Transmitter / Receiver
- 1x Mounting Bracket
- - On-the-fly Feed Rate override
- - On-the-fly Spindle Speed override
- - 6 axis DRO display (4 axis on main screen, 2 axis on sub menu)
- - 6 axis MPG and continuous jogging control
- - Robust wireless communication
- - No software drivers to install
- - Free Tech Support via CNC Forum
- - Hanger bracket mount w/ magnets
- - Smooth motion
- - Long range wireless
- - Robust CENTROID developed drivers
- - Takes 2 AA batteries
- - run time approx. 1 month
- - USB Plug and Play Transmitter / Receiver
- - Rubber case protector
- - Tactile Feedback domed buttons
- - w/ gold plated contacts
- - High quality 3M Overlay
- WMPG Product Sheet & Installation Instructions
- Replacement Antenna instructions and Software (when buying a new WMPG this is not necessary, this is only for cases where a new replacement antenna is being paired to an old WMPG)
When clicked, this video is loaded from YouTube servers. See our Privacy Policy for details.
1 review for WMPG-6 CNC Control Pendant
You must be logged in to post a review.
Related products
-
E-Stop Button with 2 Contact Closure
$45.00 Add to cart -
Acorn Plasma CNC Software License
$175.00 – $399.00 Select options This product has multiple variants. The options may be chosen on the product page -

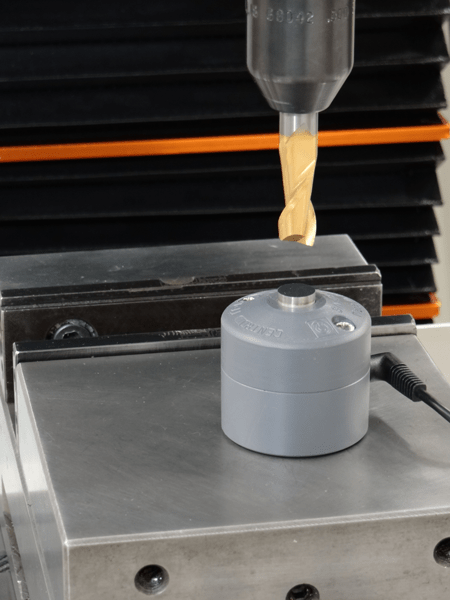

TT-1 CNC Tool Height Measurement Device for Acorn/AcornSix
$725.00 Add to cart -
Acorn Router CNC Software License
$175.00 – $399.00 Select options This product has multiple variants. The options may be chosen on the product page
Uwe Mattern –
I have two of the older WMPG-4 in use. Very handy to set up new parts on the CNC, or do some simple cutting only using the MPG.
The four Macro buttons could run a macro, or with a simple PLC modification set up to do other things, like setting the rapid rate to 20%.
With the magnets it holds on any steel surface, but the drawback is, steel chips are also held by the magnets. No noticeable lag to the CNC and the wireless range is more than you will need.
