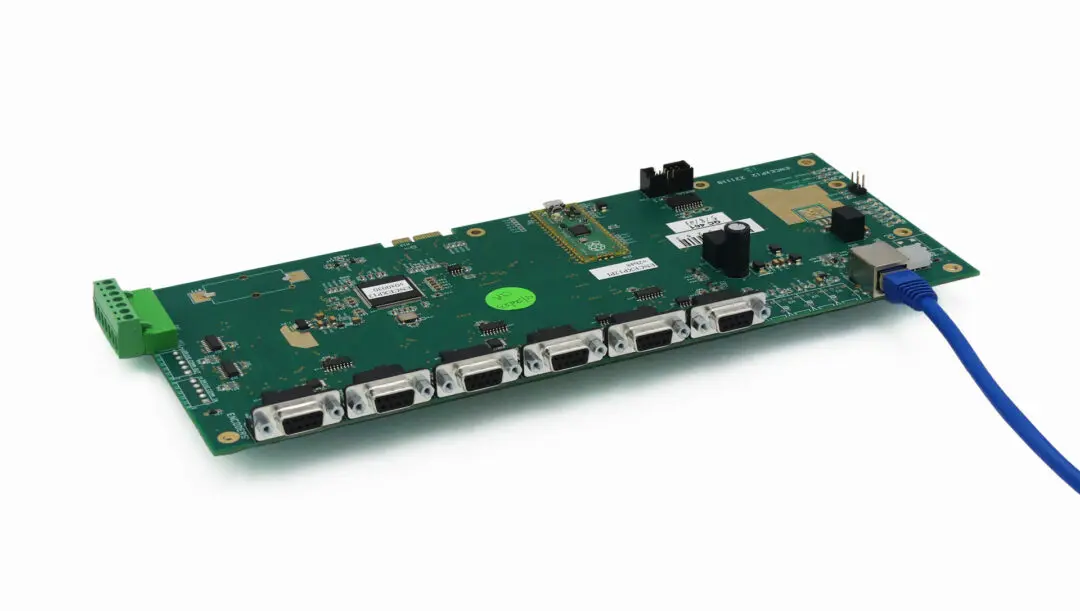

The Centroid AcornSix Scout Encoder Expansion Kit adds six additional encoder/scale/mpg ports for a total of nine to a AcornSix based CNC controller. The additional encoders ports can be used for encoder input, scale input, and MPG input. Connects to the AcornSix via a standard shielded Ethernet cable which is included. Scale input with the AcornSix can be used as a DRO position readout OR for closed loop position correction.
| Encoder Type | Rotary Encoder | Linear Scale | MPG Handwheels |
|---|---|---|---|
| A/B differential quadrature (W/ Index Pulses) |
Yes | Yes | No |
| A/B differential quadrature (W/O Index Pulses) |
No | No | Yes |
| BiSS B/BiSS C Serial Encoders | Yes | Yes | No |
Compatible with:
