$1,495.00

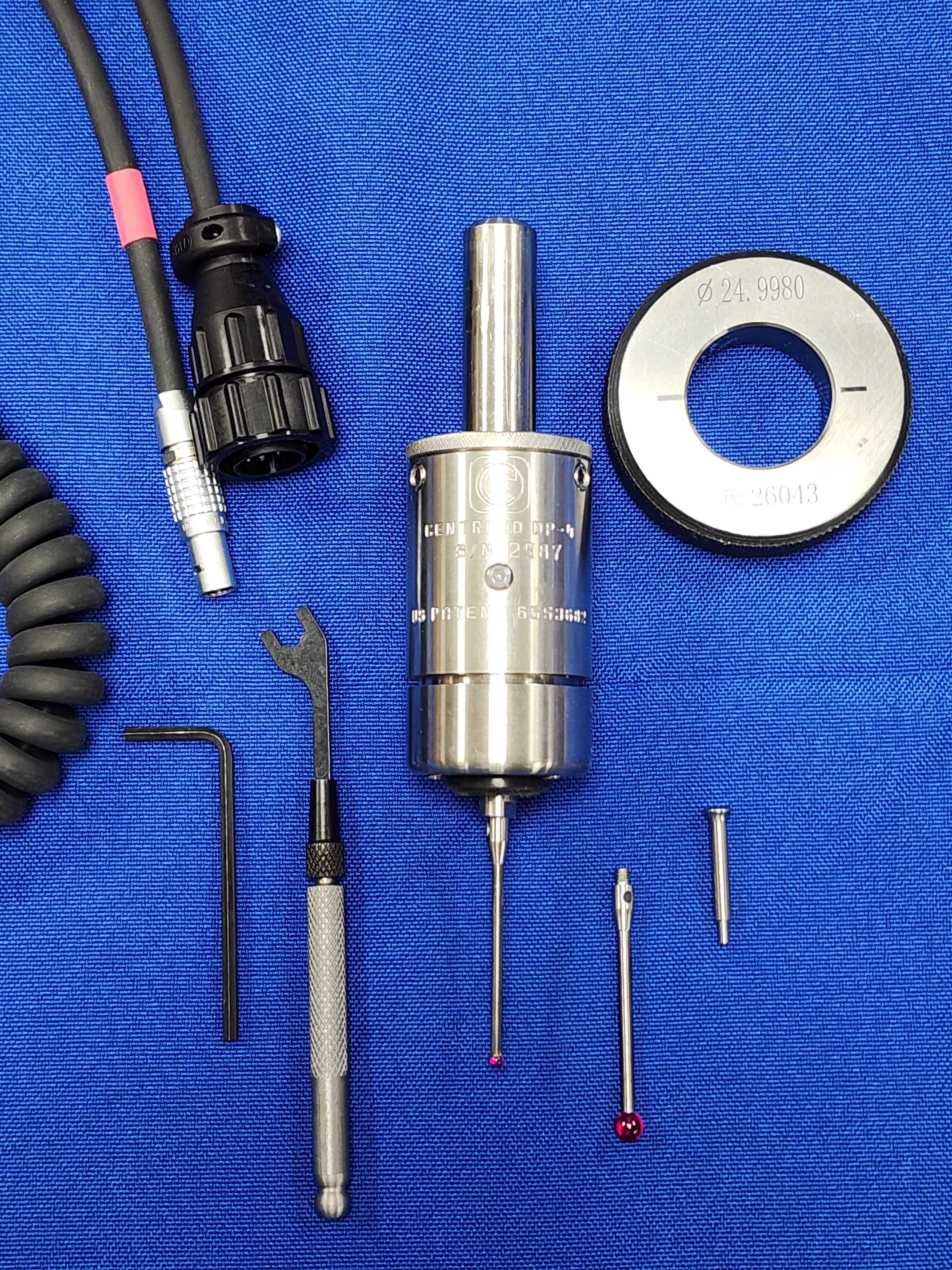

DP-4 Precision CNC Touch ProbeSKU: 10395
  • DP-4 CNC Touch Probe (#10395) includes:
    • 1x DP-4 Probe
    • 1x 5mm x 40mm Carbide Stem, Ruby Tipped Stylus (#3360)
    • 1x 2.5mm x 40mm Carbide Stem, Ruby Tipped Stylus (#3357)
    • 1x Stylus Wrench
    • 1x DP-4 to System Cable
    • 1x DP-4 Users Manual
    • 1x DP-4 to Centroid Controller Schematic

The CENTROID DP-4 CNC Touch probe is designed for Probing (part setup, zero location setup, and CMM type location and measurement of part geometry), component/fixture/work piece setup, inspection and 3D or 2D digitizing/surfacing. The DP-4 CNC Touch probe is made in the USA with patented technology. Manufactured of stainless steel the DP-4’s mechanism requires only a feather’s touch to trigger. The DP-4’s low trigger force allows the use of small styli for maximum detail and accuracy. Commonly used on Milling machines, Machining centers, Routers and Turning centers. The DP-4 is a state-of-the-art mechanical design and is compatible with most CNC controls and DRO’s that have a PLC input for probes and probe software. The CENTROID DP-4 is reliable and is an affordable alternative to Renishaw or Marposs touch probes. Previously sold exclusively for use with a CENTROID CNC control, now the DP-4 is available for use with other CNC controls and DRO’s such as Fagor, Haas, Fanuc, Fadal, Mazak, Mach3 and many more.

Replacement or additional probe tips can be purchased here.

Link to DP-4 Brochure


$699.00
KP-3 CNC Touch Probe for Acorn/AcornSixSKU: 14946
  • KP-3 CNC Touch Probe (#14946) includes:
    • 1x KP-3 Probe
    • 1x 2.5 mm x 40mm Carbide Stem, Ruby Tipped Stylus
    • 1x Stylus Wrench
    • 1x KP-3 to Acorn Lead
    • 1x KP-3 Users Manual
    • 1x KP-3 to Centroid Controller Schematic

Part, Vise and Fixture Probing: Automatically Set Zero points fast and accurate.
Use the KP-3 probe to quickly and accurately find zero points on a vise, fixture or part. Eliminate operator error when setting zero points, finding edges, or center locations of bosses or bores, slots and webs. Eliminates the need for a centerfinder or an edgefinder. You'll never have to spend 30 minutes using a center finder to locate the center of a bore again. The probe will find and set the center of a bore in just seconds. In addition, the probe can be used to verify part dimensions and locations and many other applications. The KP-3 mounts in any 1/2" or 10mm tool holder and has concentric adjustment screws. Also compatible with Mach3/4, WinCNC, LinuxCNC, Pathpilot and others.

Replacement or additional probe tips can be purchased here.




Compatible with:
$699.00
KP-3 CNC touch probe for HickorySKU: 15342
  • KP-3 CNC Touch Probe (#15342) includes:
    • 1x KP-3 Probe
    • 1x 2.5 mm x 40mm Carbide Stem, Ruby Tipped Stylus
    • 1x Stylus Wrench
    • 1x KP-3 to Hickory Lead
    • 1x KP-3 Users Manual
    • 1x KP-3 to Centroid Controller Schematic

Part, Vise and Fixture Probing: Automatically Set Zero points fast and accurate.
Use the KP-3 probe to quickly and accurately find zero points on a vise, fixture or part. Eliminate operator error when setting zero points, finding edges, or center locations of bosses or bores, slots and webs. Eliminates the need for a centerfinder or an edgefinder. You'll never have to spend 30 minutes using a center finder to locate the center of a bore again. The probe will find and set the center of a bore in just seconds. In addition, the probe can be used to verify part dimensions and locations and many other applications. The KP-3 mounts in any 1/2" or 10mm tool holder and has concentric adjustment screws. Also compatible with Mach3/4, WinCNC, LinuxCNC, Pathpilot and others.

Replacement or additional probe tips can be purchased here.

KP-3 Specifications
   -Probing directions X+/-, Y+/-, Z-
   -Unidirectional repeatability (2 sigma) 0.00006” (1.5 micron)
   -Practical use results on a good milling machine .0005”
   -Probe deflection force (X,Y) 3 ounce minimum with 40mm stylus
   -Probe deflection force (Z) 15 ounce minimum
   -Probe body diameter and length D= 1.35” (34.3mm) L= 2.16” (54.9mm)
   -Mounting shank diameter and length D= 0.5” (12.7mm) L= 1.47” (37.3mm)
   -Stylus mount thread M3 thread
   -Power supply required: none
   -LED status indicator red when triggered (powered by input 1ma)
   -Weight of probe and ½”shank 0.40 lb
   -Over travel limit angle (X,Y) +/- 12 degrees from vertical
   -Over travel limit (Z-) 0.25” (6.25mm)
   -Environmental IP64
   -Patented concentric alignment (spindle/tool holder/probe body run out adjustment)



Compatible with:

Documentation & Support

$699.00
KP-3 CNC Touch Probe for Oak/Allin1DC/MPU11SKU: 14944
  • KP-3 CNC Touch Probe (#14944) Includes:
    • 1x KP-3 Probe
    • 1x 2.5 mm x 40mm Carbide Stem, Ruby Tipped Stylus
    • 1x Stylus Wrench
    • 1x KP-3 to bulkhead cable
    • 1x Bulkhead to Oak/Allin1DC cable
    • 1x KP-3 Users Manual

Part, Vise and Fixture Probing: Automatically Set Zero points fast and accurate.
Use the KP-3 probe to quickly and accurately find zero points on a vise, fixture or part. Eliminate operator error when setting zero points, finding edges, or center locations of bosses or bores, slots and webs. Eliminates the need for a centerfinder or an edgefinder. You'll never have to spend 30 minutes using a center finder to locate the center of a bore again. The probe will find and set the center of a bore in just seconds. In addition the probe can be used to verify part dimensions and locations and many other applications. The KP-3 mounts in any 1/2" or 10mm tool holder and has concentric adjustment screws. Also compatible with Mach3/4, WinCNC, LinuxCNC, Pathpilot and others.

Replacement or additional probe tips can be purchased here.

KP-3 Specifications
   -Probing directions X+/-, Y+/-, Z-
   -Unidirectional repeatability (2 sigma) 0.00006” (1.5 micron)
   -Practical use results on a good milling machine .0005”
   -Probe deflection force (X,Y) 3 ounce minimum with 40mm stylus
   -Probe deflection force (Z) 15 ounce minimum
   -Probe body diameter and length D= 1.35” (34.3mm) L= 2.16” (54.9mm)
   -Mounting shank diameter and length D= 0.5” (12.7mm) L= 1.47” (37.3mm)
   -Stylus mount thread M3 thread
   -Power supply required: none
   -LED status indicator red when triggered (powered by input 1ma)
   -Weight of probe and ½”shank 0.40 lb
   -Over travel limit angle (X,Y) +/- 12 degrees from vertical
   -Over travel limit (Z-) 0.25” (6.25mm)
   -Environmental IP64
   -Patented concentric alignment (spindle/tool holder/probe body run out adjustment)



Compatible with:

Documentation & Support

$725.00
Lathe TT-4 CNC Tool Touch Off for Acorn/AcornSixSKU: 15274
  • Lathe TT-4 Acorn/AcornSix Kit (#15274) includes:
    • 1x Lathe TT-4 Tool touch probe
    • 1x Carbide Touch surface
    • 1x 1/2" Mounting Shank

For Lathe use. Quickly and accurately setup tool heights in the tool library with a push of a button. The CENTROID Lathe TT-4 automatic tool height offset touch probe is plug and play with all Centroid CNC controls. Eliminates gauge blocks, paper, and repeated measurements. Save time and increase accuracy. Fully integrated into the CNC control tool library menu, just select the tool and press auto measure to set the tool height automatically. Makes measuring all types of tools faster and more accurate. Find the longest insert in a multiple insert tool quickly. Once you start using the Lathe TT-4 you'll wonder why you waited to purchase this time saving tool. Measure just one tool or a whole group of tools at once. Can also be used in the middle of a job to measure a replacement tool. Integrated with an Automatic tool changer for batch tool measurement. The Lathe TT-4 is based on KP-3 touch probe technology and is a robust kinematic design and works with all spindles even ones that with non-conductive bearings (ceramic) or tooling that doesn't conduct (diamond).



Compatible with:
$725.00
Lathe TT-4 CNC Tool Touch Off for HickorySKU: 15340
  • Lathe TT-4 Hickory Kit (#15274) includes:
    • 1x Lathe TT-4 Tool touch probe
    • 1x Carbide Touch surface
    • 1x 1/2" Mounting Shank

For Lathe use. Quickly and accurately setup tool heights in the tool library with a push of a button. The CENTROID Lathe TT-4 automatic tool height offset touch probe is plug and play with all Centroid CNC controls. Eliminates gauge blocks, paper, and repeated measurements. Save time and increase accuracy. Fully integrated into the CNC control tool library menu, just select the tool and press auto measure to set the tool height automatically. Makes measuring all types of tools faster and more accurate. Find the longest insert in a multiple insert tool quickly. Once you start using the Lathe TT-4 you'll wonder why you waited to purchase this time saving tool. Measure just one tool or a whole group of tools at once. Can also be used in the middle of a job to measure a replacement tool. Integrated with an Automatic tool changer for batch tool measurement. The Lathe TT-4 is based on KP-3 touch probe technology and is a robust kinematic design and works with all spindles even ones that with non-conductive bearings (ceramic) or tooling that doesn't conduct (diamond).



Compatible with:

Documentation & Support

$725.00

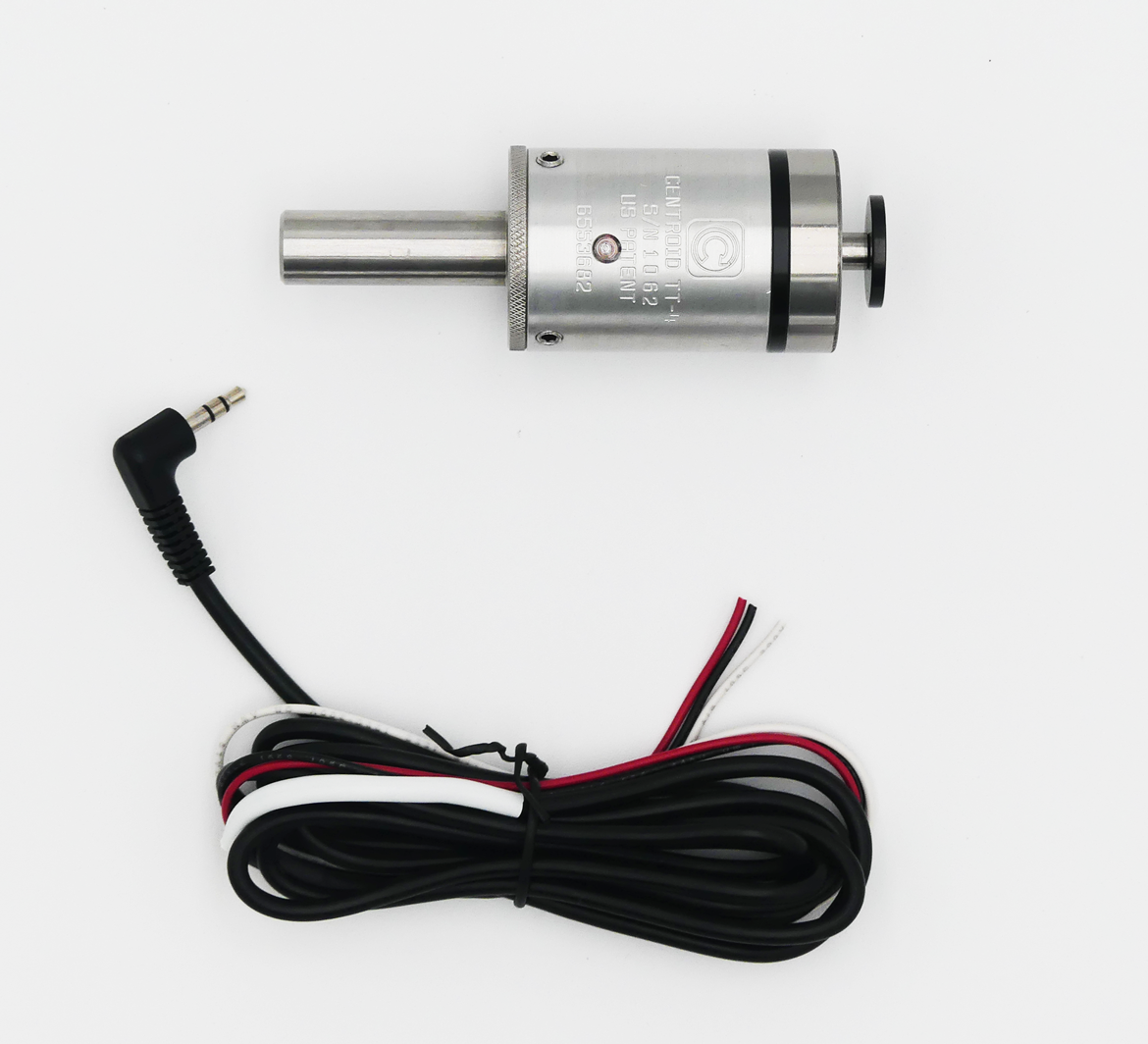

Lathe TT-4 CNC Tool Touch Off for Oak/Allin1DC/MPU11SKU: 15275
  • TT-4 Oak/Allin1DC/MPU11 Kit (#15275) includes:
    • 1x Lathe TT-4 Tool Touch Probe
    • 1x Carbide Touch Surface
    • 1x 1/2" Mounting Shank
    • 1x TT-4 to bulkhead cable
    • 1x Bulkhead to Oak/Allin1DC cable (not shown)

For Lathe use. Quickly and accurately setup tool heights in the tool library with a push of a button. The CENTROID Lathe TT-4 automatic tool height offset touch probe is plug and play with all Centroid CNC controls. Eliminates gauge blocks, paper, and repeated measurements. Save time and increase accuracy. Fully integrated into the CNC control tool library menu, just select the tool and press auto measure to set the tool height automatically. Makes measuring all types of tools faster and more accurate. Find the longest insert in a multiple insert tool quickly. Once you start using the Lathe TT-4 you'll wonder why you waited to purchase this time saving tool. Measure just one tool or a whole group of tools at once. Can also be used in the middle of a job to measure a replacement tool. Integrated with an Automatic tool changer for batch tool measurement. The Lathe TT-4 is based on KP-3 touch probe technology and is a robust kinematic design and works with all spindles even ones that with non-conductive bearings (ceramic) or tooling that doesn't conduct (diamond).



Compatible with:
$660.00

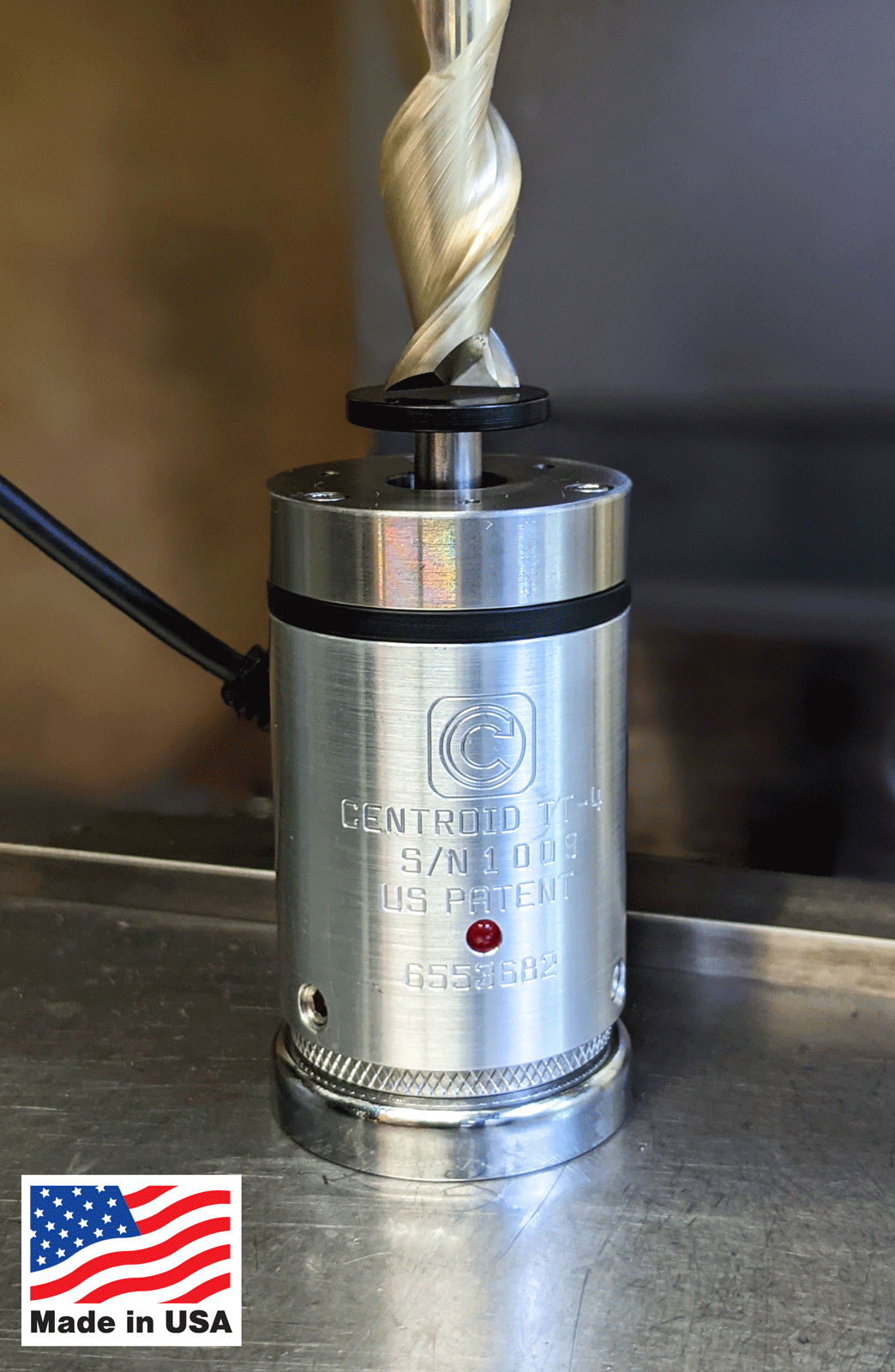

Mill/Router TT-4 CNC Tool Touch Off for Acorn/AcornSixSKU: 15135
  • TT-4 Acorn/AcornSix Kit (#15135) includes:
    • 1x TT-4 Tool touch probe

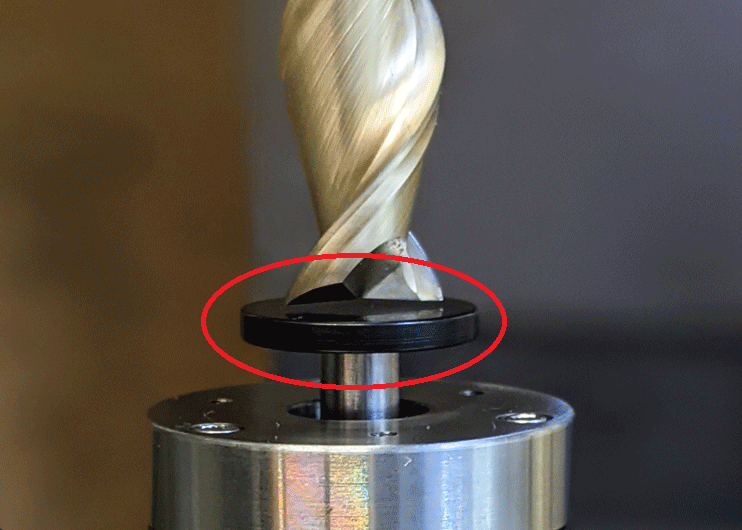

    • 1x Carbide Touch surface

Mill, Lathe or Router use. Quickly and accurately setup tool heights in the tool library with a push of a button. The CENTROID TT-4 automatic tool height offset touch probe is plug and play with all Centroid CNC controls. Eliminates gauge blocks, paper, and repeated measurements. Save time and increase accuracy. Fully integrated into the CNC control tool library menu, just select the tool and press auto measure to set the tool height automatically. Makes measuring all types of tools faster and more accurate. Find the longest insert in a multiple insert tool quickly. Once you start using the TT-4 you'll wonder why you waited to purchase this time saving tool. Measure just one tool or a whole group of tools at once. Can also be used in the middle of a job to measure a replacement tool. Integrated with an Automatic tool changer for batch tool measurement. The TT-4 is based on KP-3 touch probe technology and is a robust kinematic design and works with all spindles even ones that with non-conductive bearings (ceramic) or tooling that doesn't conduct (diamond). Note: Also compatible with most all other CNC controller such as but not limited to: Mach3/4, WinCNC, LinuxCNC, Pathpilot and others.



Compatible with:
$660.00
Mill/Router TT-4 CNC Tool Touch Off for HickorySKU: 15341
  • TT-4 Hickory Kit (#15341) includes:
    • 1x TT-4 Tool touch probe
    • 1x Carbide Touch surface

Mill, Lathe or Router use. Quickly and accurately setup tool heights in the tool library with a push of a button. The CENTROID TT-4 automatic tool height offset touch probe is plug and play with all Centroid CNC controls. Eliminates gauge blocks, paper, and repeated measurements. Save time and increase accuracy. Fully integrated into the CNC control tool library menu, just select the tool and press auto measure to set the tool height automatically. Makes measuring all types of tools faster and more accurate. Find the longest insert in a multiple insert tool quickly. Once you start using the TT-4 you'll wonder why you waited to purchase this time saving tool. Measure just one tool or a whole group of tools at once. Can also be used in the middle of a job to measure a replacement tool. Integrated with an Automatic tool changer for batch tool measurement. The TT-4 is based on KP-3 touch probe technology and is a robust kinematic design and works with all spindles even ones that with non-conductive bearings (ceramic) or tooling that doesn't conduct (diamond). Note: Also compatible with most all other CNC controller such as but not limited to: Mach3/4, WinCNC, LinuxCNC, Pathpilot and others.



Compatible with:

Documentation & Support

$660.00
Mill/Router TT-4 CNC Tool Touch Off for Oak/Allin1DC/MPU11SKU: 15134
  • TT-4 Oak/Allin1DC/MPU11 Kit (#15134) includes:
    • 1x TT-4 Tool Touch Probe
    • 1x Carbide Touch Surface
    • 1x TT-4 to bulkhead cable
    • 1x Bulkhead to Oak/Allin1DC cable (not shown)

Mill or Router use. Quickly and accurately setup tool heights in the tool library with a push of a button. The CENTROID TT-4 automatic tool height offset touch probe is plug and play with all Centroid CNC controls. Eliminates gauge blocks, paper, and repeated measurements. Save time and increase accuracy. Fully integrated into the CNC control tool library menu, just select the tool and press auto measure to set the tool height automatically. Makes measuring all types of tools faster and more accurate. Find the longest insert in a multiple insert tool quickly. Once you start using the TT-4 you'll wonder why you waited to purchase this time saving tool. Measure just one tool or a whole group of tools at once. Can also be used in the middle of a job to measure a replacement tool. Integrated with an Automatic tool changer for batch tool measurement. The TT-4 is based on KP-3 touch probe technology and is a robust kinematic design and works with all spindles even ones that with non-conductive bearings (ceramic) or tooling that doesn't conduct (diamond). Note: Also compatible with most all other CNC controller such as but not limited to: Mach3/4, WinCNC, LinuxCNC, Pathpilot and others.



Compatible with:

Documentation & Support

$725.00
TT-1 CNC Tool Height Measurement Device for Acorn/AcornSixSKU: 10220
  • TT-1 CNC Tool Height Measurement Device (#10220) features:
    • - Set Tool Lengths automatically
    • - Ultra accurate conductive design
    • - Save time, increase accuracy
    • - Magnetic base or hard mounts (T-nut or Shank)
    • - Works w/ CENTROID & most other CNC’s
    • - Easy to achieve high precision measurements
    • - Designed for milling and lathe applications: Knee mills, Bed mills, Machining centers and Routers, Lathes and Turning centers
    • - In process tool reset for worn out or broken tools
    • - Requires conductive tools
    • - Serviceable unit
    • - Auto cable detection

Link to TT-1 Brochure

Set up your tools in a quarter of the time it would normally take. If you often machine short-run parts and are always setting up and tearing down for a new job, the TT-1 Auto tool set will save you time while more accurately setting your tool height offsets. Save time when you have to replace a dull tool with a new one in the middle of a job. The TT-1 is completely automatic. Press “measure” and the tool will automatically touch off the TT-1 and set the tool height offset in the tool library. Works with CENTROID CNC controls and most any other CNC or DRO with a probe input. Requires conductive tooling and spindle.



Compatible with:
$725.00
TT-1 CNC Tool Height Measurement Device for Allin1DC/OakSKU: 10220
  • TT-1 CNC Tool Height Measurement Device (#10220) features:
    • - Set Tool Lengths automatically
    • - Ultra accurate conductive design
    • - Save time, increase accuracy
    • - Magnetic base or hard mounts (T-nut or Shank)
    • - Works w/ CENTROID & most other CNC’s
    • - Easy to achieve high precision measurements
    • - Designed for milling and lathe applications: Kneemills, Bed mills, Machining centers and Routers, Lathes and Turning centers
    • - In process tool reset for worn out or broken tools
    • - Requires conductive tools
    • - Serviceable unit
    • - Auto cable detection

Link to TT-1 Brochure

Set up your tools in a quarter of the time it would normally take. If you often machine short-run parts and are always setting up and tearing down for a new job, the TT-1 Auto tool set will save you time while more accurately setting your tool height offsets. Save time when you have to replace a dull tool with a new one in the middle of a job. The TT-1 is completely automatic. Press “measure” and the tool will automatically touch off the TT-1 and set the tool height offset in the tool library. Works with CENTROID CNC controls and most any other CNC or DRO with a probe input.


Compatible with:

Documentation & Support

$725.00
TT-1 CNC Tool Height Measurement Device for Hickory
  • TT-1 CNC Tool Height Measurement Device (#15341) features:
    • - Set Tool Lengths automatically
    • - Ultra accurate conductive design
    • - Save time, increase accuracy
    • - Magnetic base or hard mounts (T-nut or Shank)
    • - Works w/ CENTROID & most other CNC’s
    • - Easy to achieve high precision measurements
    • - Designed for milling and lathe applications: Kneemills, Bed mills, Machining centers and Routers, Lathes and Turning centers
    • - In process tool reset for worn out or broken tools
    • - Requires conductive tools
    • - Serviceable unit
    • - Auto cable detection

Link to TT-1 Brochure

Set up your tools in a quarter of the time it would normally take. If you often machine short-run parts and are always setting up and tearing down for a new job, the TT-1 Auto tool set will save you time while more accurately setting your tool height offsets. Save time when you have to replace a dull tool with a new one in the middle of a job. The TT-1 is completely automatic. Press “measure” and the tool will automatically touch off the TT-1 and set the tool height offset in the tool library. Works with CENTROID CNC controls and most any other CNC or DRO with a probe input. Requires conductive tooling and spindle.



Compatible with:
