Centroid CNC Rotary Tables

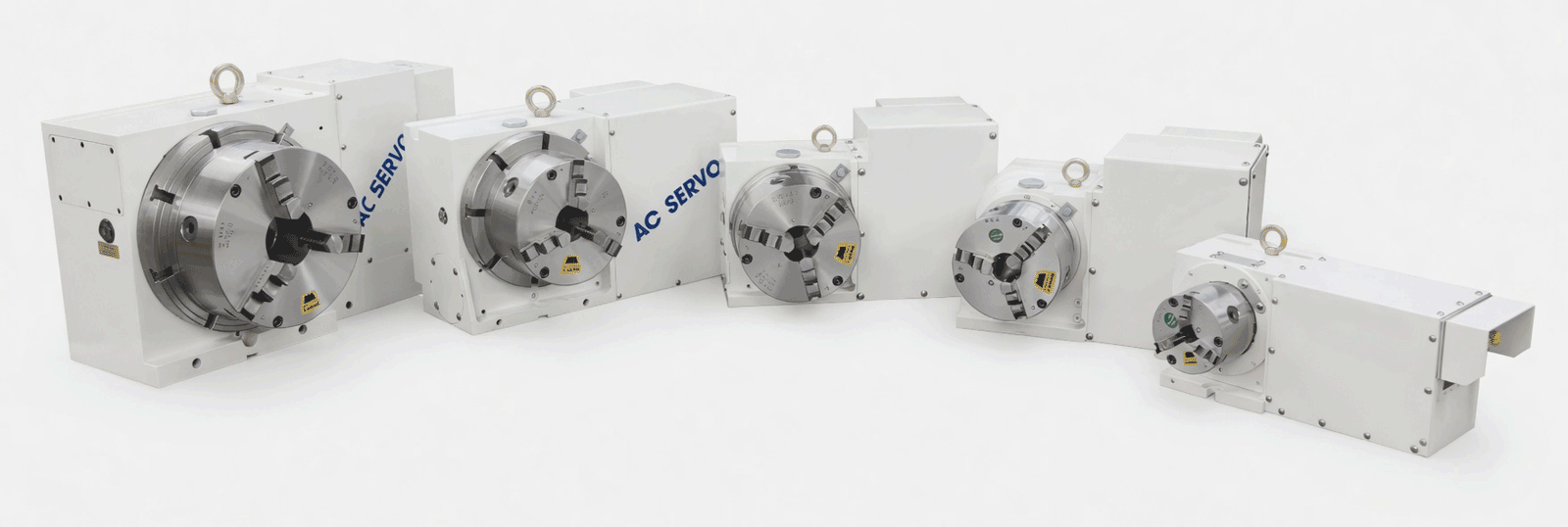

Centroid CNC Rotary Tables bring powerful 4th-axis and rotary machining capability to a wide range of CNC machines!
Designed to integrate seamlessly with Centroid CNC controllers, these precision rotary tables allow your machine to perform indexing and simultaneous multi-axis machining with Centroid reliability and accuracy.
Built for both new machines and CNC retrofits, Centroid rotary tables are engineered for smooth motion, repeatable positioning, and dependable long-term performance. Automatic homing, rigid braking systems, and precision gearing allowing parts to be machined on multiple sides in a single setup, reducing fixture changes, improving accuracy, and increasing productivity.
Centroid rotary tables are available with matched servo drive and motor packages for popular Centroid control platforms such as Allin1DC, Hickory (EtherCAT), and Oak, making installation straightforward and dependable. For Acorn and AcornSix users, the Centroid Rotary Tables are also available without the axis motor/drive/cable in a "Table Only" configuration where you provide and mount your own axis servo/stepper motor.
- Choose from our in-stock table sizes 120mm, 170mm, 200mm, 250mm below
- Select your CNC Controller Platform
- Choose a Servo Motor/Drive/Cable Package
- Pick optional Rotary Table Chuck and/or Tailstock
Note: We offer larger rotary tables in 320mm, 400mm, 500mm, 630mm, and 800mm as well!
Contact us today for pricing, availability, delivery quotes, and configuration options (including matched servo packages, chucks, and tailstocks)
- By Email: DIYSales@centroidcnc.com
- By Phone: (814) 353-9256, Press 3 at the menu

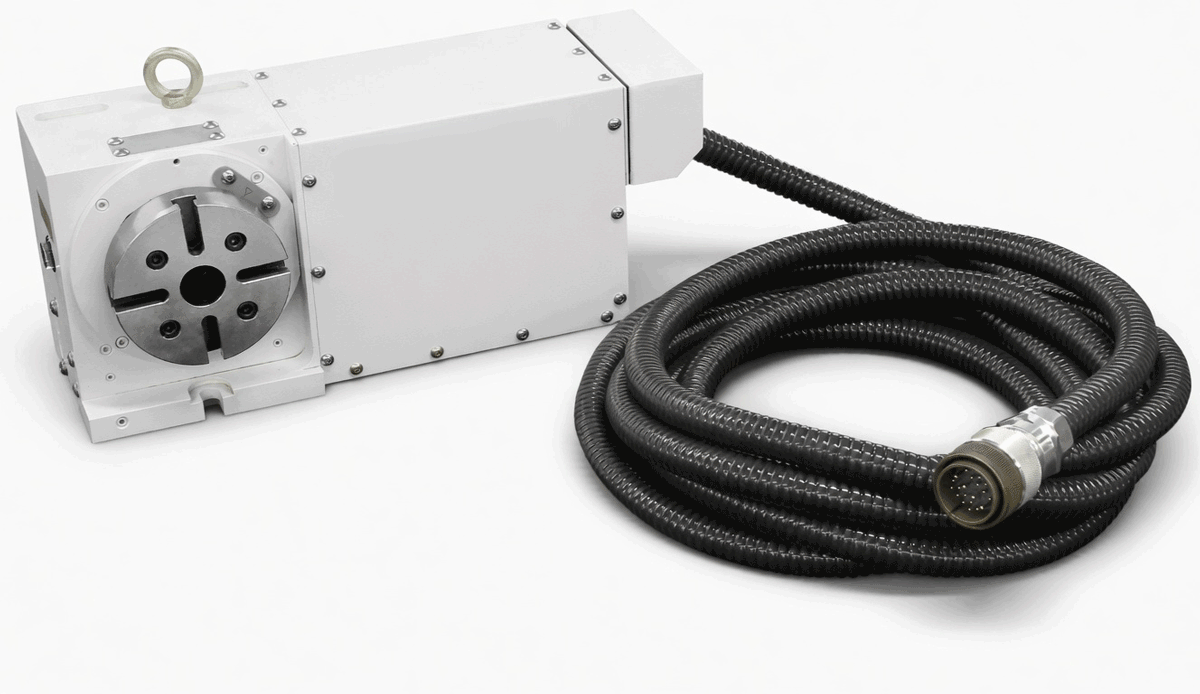

Centroid RT120 CNC Rotary Table
Price range: $4,960.00 through $10,516.00
The RT120 CNC Rotary Table is a compact, high-precision 4th-axis solution designed to add powerful rotary machining capability to mills, routers, and retrofit CNC machines. Featuring a 120 mm (4.72") table diameter, automatic homing switch, and pneumatic brake for rigid positioning, the RT120 delivers accurate indexing and smooth simultaneous 4-axis motion when paired with a CNC control like our Allin1DC, Hickory, or Oak CNC Control Boards.
The RT120 is available as a complete plug-and-play package for several control platforms—including Allin1DC, Hickory (EtherCAT-compatible), and Oak, with matched servo motors, drives, and cables. For integrators, the table is also available without motor or drive, with either a 11 mm or 19 mm output shaft.
Optional accessories such as a manual three-jaw chuck and fixed tailstock allow the RT120 to handle cylindrical parts, engraving, multi-side machining, and complex 4-axis work with ease. Compact, versatile, and easy to integrate, the RT120 is an ideal upgrade for bringing true rotary capability to your CNC machine.
Price range: $5,645.00 through $11,502.00

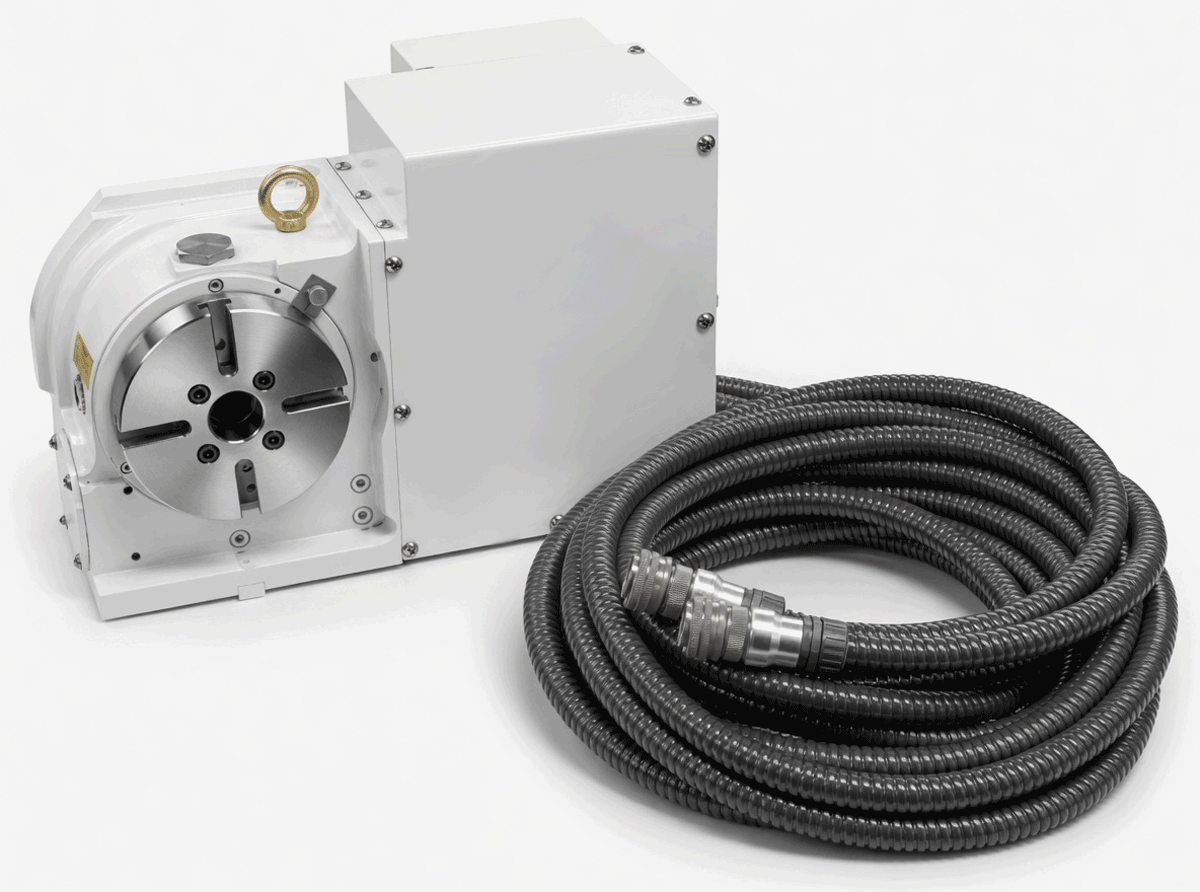

The RT170 CNC Rotary Table is a compact, high-precision 4th-axis solution designed to add powerful rotary machining capability to mills, routers, and retrofit CNC machines. Featuring a 170 mm (6.69") table diameter, automatic homing switch, and pneumatic brake for rigid positioning, the RT170 delivers accurate indexing and smooth simultaneous 4-axis motion when paired with a CNC control like our Allin1DC, Hickory, or Oak CNC Control Boards.
The RT170 is available as a complete plug-and-play package for several control platforms—including Allin1DC, Hickory (EtherCAT-compatible), and Oak, with matched servo motors, drives, and cables. For integrators, the table is also available without motor or drive, with either a 0.625 inch or 19 mm output shaft.
Optional accessories such as a manual three-jaw chuck and fixed tailstock allow the RT170 to handle cylindrical parts, engraving, multi-side machining, and complex 4-axis work with ease. Compact, versatile, and easy to integrate, the RT170 is an ideal upgrade for bringing true rotary capability to your CNC machine.
Price range: $6,151.00 through $12,008.00

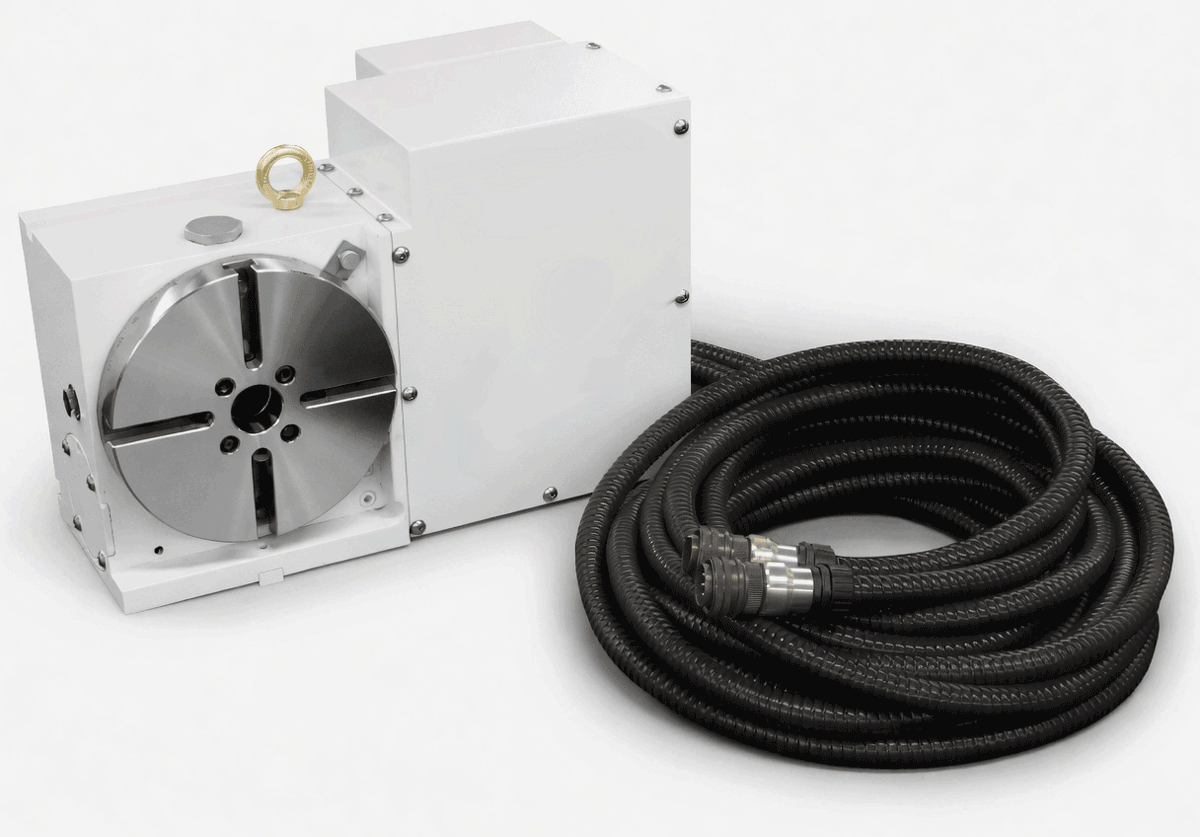

The RT200 CNC Rotary Table is a compact, high-precision 4th-axis solution designed to add powerful rotary machining capability to mills, routers, and retrofit CNC machines. Featuring a 200 mm (7.87") table diameter, automatic homing switch, and pneumatic brake for rigid positioning, the RT200 delivers accurate indexing and smooth simultaneous 4-axis motion when paired with a CNC control like our Allin1DC, Hickory, or Oak CNC Control Boards.
The RT200 is available as a complete plug-and-play package for several control platforms—including Allin1DC, Hickory (EtherCAT-compatible), and Oak, with matched servo motors, drives, and cables. For integrators, the table is also available without motor or drive, with either a 0.625 inch or 19 mm output shaft.
Optional accessories such as a manual three-jaw chuck and fixed tailstock allow the RT200 to handle cylindrical parts, engraving, multi-side machining, and complex 4-axis work with ease. Compact, versatile, and easy to integrate, the RT200 is an ideal upgrade for bringing true rotary capability to your CNC machine.
Price range: $7,170.00 through $13,200.00

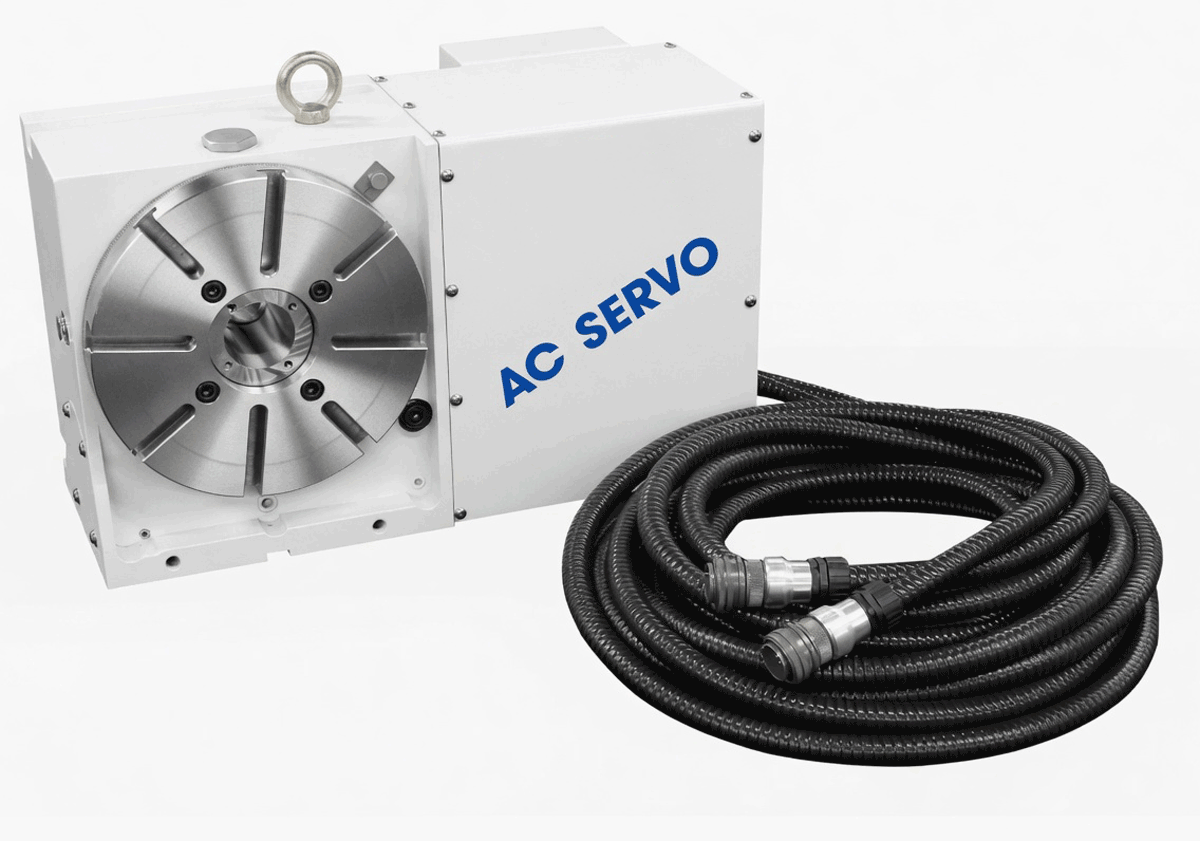

The RT250 CNC Rotary Table is a compact, high-precision 4th-axis solution designed to add powerful rotary machining capability to mills, routers, and retrofit CNC machines. Featuring a 250 mm (9.84") table diameter, automatic homing switch, and pneumatic brake for rigid positioning, the RT250 delivers accurate indexing and smooth simultaneous 4-axis motion when paired with a CNC control like our Hickory or Oak CNC Control Boards.
The RT250 is available as a complete plug-and-play package for several control platforms—including Hickory (EtherCAT-compatible) and Oak, with matched servo motors, drives, and cables. For integrators, the table is also available without motor or drive, only available with a 22 mm output shaft.
Optional accessories such as a manual three-jaw chuck and fixed tailstock allow the RT250 to handle cylindrical parts, engraving, multi-side machining, and complex 4-axis work with ease. Compact, versatile, and easy to integrate, the RT250 is an ideal upgrade for bringing true rotary capability to your CNC machine.
Rotary Table Sizes
CNC Rotary Table |
RT120 |
RT170 |
RT200 |
RT250 |
RT320 |
|
Table Dia (mm/inch) |
120 / 4.72 |
170 / 6.69 |
200 / 7.87 |
250 / 9.84 |
320 / 12.60 |
|
Center Height in Vertical (mm / inch) |
115 / 4.53 |
135 / 5.31 |
160 / 6.3 |
185 / 7.28 |
210 / 8.27 |
|
Table Height in Horizontal (mm / inch) |
170 / 6.69 |
165 / 6.5 |
165 / 6.5 |
200 / 7.87 |
240 / 9.45 |
|
Over all Height in Vertical Without Motor Cover (mm / inch) |
193 / 7.60 |
240 / 9.45 |
265 / 10.63 |
315 / 12.4 |
380 / 14.96 |
|
Thru-Hole Dia (mm / inch) |
30H7 / 1.18H7 |
35H7 / 1.37H7 |
35H7 / 1.37H7 |
70H7 / 2.75H7 |
110H7 / 4.33H7 |
|
Width of T-slot (mm / inch) |
10H7 / 0.39H7 |
12H7 / 0.47H7 |
12H7 / 0.47H7 |
12H7 / 0.47H7 |
14H7 / 0.55H7 |
|
Width of Guide Block (mm / inch) |
14h7 / 0.55h7 |
18h7 / 0.71h7 |
18h7 / 0.71h7 |
18h7 / 0.71h7 |
18h7 / 0.71h7 |
|
Gear Ratio |
1:60 |
1:90 |
1:90 |
1:180/1:90 |
1:180/1:90 |
|
Min. Indexing Unit degree (degree) |
0.001° |
0.001° |
0.001° |
0.001° |
0.001° |
|
Max. R.P.M. (rpm) (motor : 2000 / rpm) |
33.3 |
22.2 |
22.2 |
11.1/22.2 |
11.1/22.2 |
|
Pneu. clamp force (kg•m) (P:5kg / cm2) |
12 |
25 |
25 |
47 |
71 |
|
Hydro. clamp force (kg•m) (P:20kg / cm2) |
24 |
50 |
50 |
94 |
142 |
|
Indexing Accuracy Class (sec.) |
30" |
20" |
20" |
15" |
15" |
|
Repeatability (sec.) |
Unidirectional |
4" |
4" |
4" |
4" |
4" |
Bidirectional |
8" |
8" |
8" |
8" |
8" |
|
Max. Machining Force (kg•m) |
12 |
23 |
23 |
45 |
78 |
|
N.W. (kgs) |
28 |
70 |
84 |
124 |
210 |
|
Max. Load |
Vertical |
W=35 kg |
W=100 kg |
W=125 kg |
W=150 kg |
W=175 kg |
 |
||||||
Horizontal |
W=75 kg |
W=200 kg |
W=250 kg |
W=300 kg |
W=350 kg |
|
 |
||||||
Max. Radial Load |
 |
F=800 kg |
F=1000 kg |
F=1100 kg |
F=1450 kg |
F=2500 kg |
 |
FxL=8 kg•m |
FxL=50 kg•m |
FxL=50 kg•m |
FxL=94 kg•m |
FxL=142 kg•m |
|
 |
FxL=18 kg•m |
FxL=78 kg•m |
FxL=100 kg•m |
FxL=180 kg•m |
FxL=200 kg•m |
|

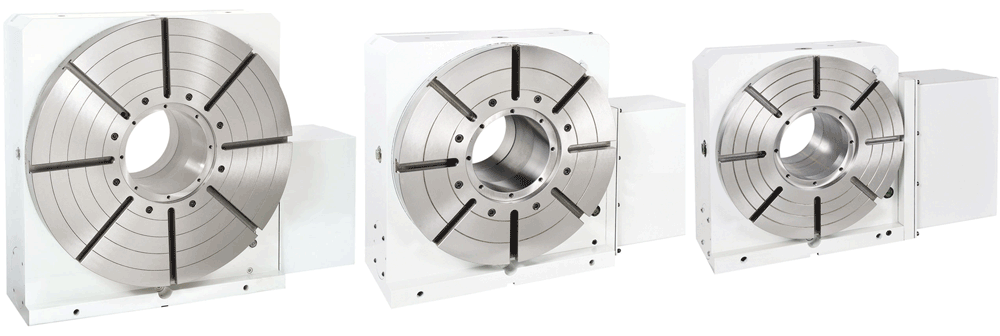

Larger Rotary Tables Available, Contact Us Today!
Need a bigger table for larger parts or higher production demands? Centroid offers larger precision CNC rotary tables in 320mm, 400mm, 500mm, 630mm, and 800mm diameters. These heavy-duty models provide the same seamless integration with Centroid controllers, along with powerful servo performance, rigid pneumatic braking, and high-accuracy positioning—ideal for machining bigger workpieces, multi-sided parts, or demanding applications.
Contact us today for pricing, availability, delivery quotes, and configuration options (including matched servo packages, chucks, and tailstocks)
- By Email: DIYSales@centroidcnc.com
- By Phone: (814) 353-9256, Press 3 at the menu
Why Add a 4th Axis to Your CNC Machine?
Adding a rotary axis dramatically expands what your CNC machine can do. A 4th axis allows parts to be indexed or rotated during machining, making it possible to machine multiple sides of a part in a single setup. This improves accuracy, reduces fixture changes, and saves valuable machining time.
With a CNC rotary table, operations such as cylindrical engraving, wrapped toolpaths, gear cutting, and complex multi-sided machining become easy to perform. Whether used for indexing or simultaneous multi-axis motion, a rotary axis increases productivity while opening the door to entirely new machining capabilities.
- Machine multiple sides of a part without refixturing
- Perform cylindrical engraving and wrapped toolpaths
- Improve accuracy by reducing setup changes
- Enable simultaneous 4-axis machining
- Increase productivity and reduce cycle times
Features of Centroid CNC Rotary Tables
Centroid rotary tables are designed for reliability, precision, and easy integration with modern CNC machines. Each unit is engineered to provide smooth rotary motion, accurate positioning, and long-term durability in demanding machining environments.
- Precision rotary motion for indexing or simultaneous 4-axis machining
- Automatic home switch for consistent repeatable referencing
- Pneumatic brake for rigid positioning during machining
- Compact designs suitable for mills, routers, and retrofit CNC machines
- Optional chuck and tailstock accessories for flexible workholding
- Available as complete servo packages or table-only configurations
These features make Centroid rotary tables an excellent solution for production machining, prototyping, and CNC retrofit applications.
Compatible CNC Control Systems
Centroid rotary tables are designed to work seamlessly with Centroid CNC control systems, providing smooth motion control, accurate positioning, and full support for indexing or simultaneous multi-axis machining.
Complete rotary packages are available with matched servo drives, motors, and cables for easy installation with the following Centroid control platforms:
- Allin1DC – Compact DC servo solution with integrated motion control
- Hickory – High-performance EtherCAT motion control platform
- Oak – Industrial-grade CNC control system used on advanced machines
- Acorn/AcornSix – User provided Step and Direction AC Servo, order the "Table Only" option when using with Acorn or AcornSix
With matched hardware and proven CNC software, Centroid rotary systems are easy to install, reliable to operate, and capable of delivering true multi-axis machining performance.
Use Your Own Servo Motor and Drive
Centroid rotary tables can also be supplied as a table-only configuration, allowing machine builders, integrators, and advanced users to pair the rotary axis with their own servo motor and drive system. This option provides maximum flexibility for custom CNC machines and specialized control systems.
By supplying your own servo hardware, the rotary table can be integrated into virtually any CNC control platform that supports a rotary axis. This makes Centroid rotary tables a practical solution for OEM machine builders, retrofit projects, research systems, and other custom CNC applications.
- Available without servo motor, drive, or cables
- Ideal for OEM machine builders and custom CNC integrations
- Compatible with a wide range of servo motor and drive systems
- Integrates with many CNC controls that support a rotary axis
- Two output shaft options available to match common servo couplings
Whether you are building a custom machine or integrating the rotary axis into an existing CNC platform, the table-only option provides the freedom to choose the motion hardware that best fits your system requirements.
