ECat1616 I/O Expansion Kit CNC Input Output DIY

ECat1616 I/O Expansion Kit

SKU: 14992 Category: Tag:

$499.00

Estimated Shipping Date

Ordered
Shipped

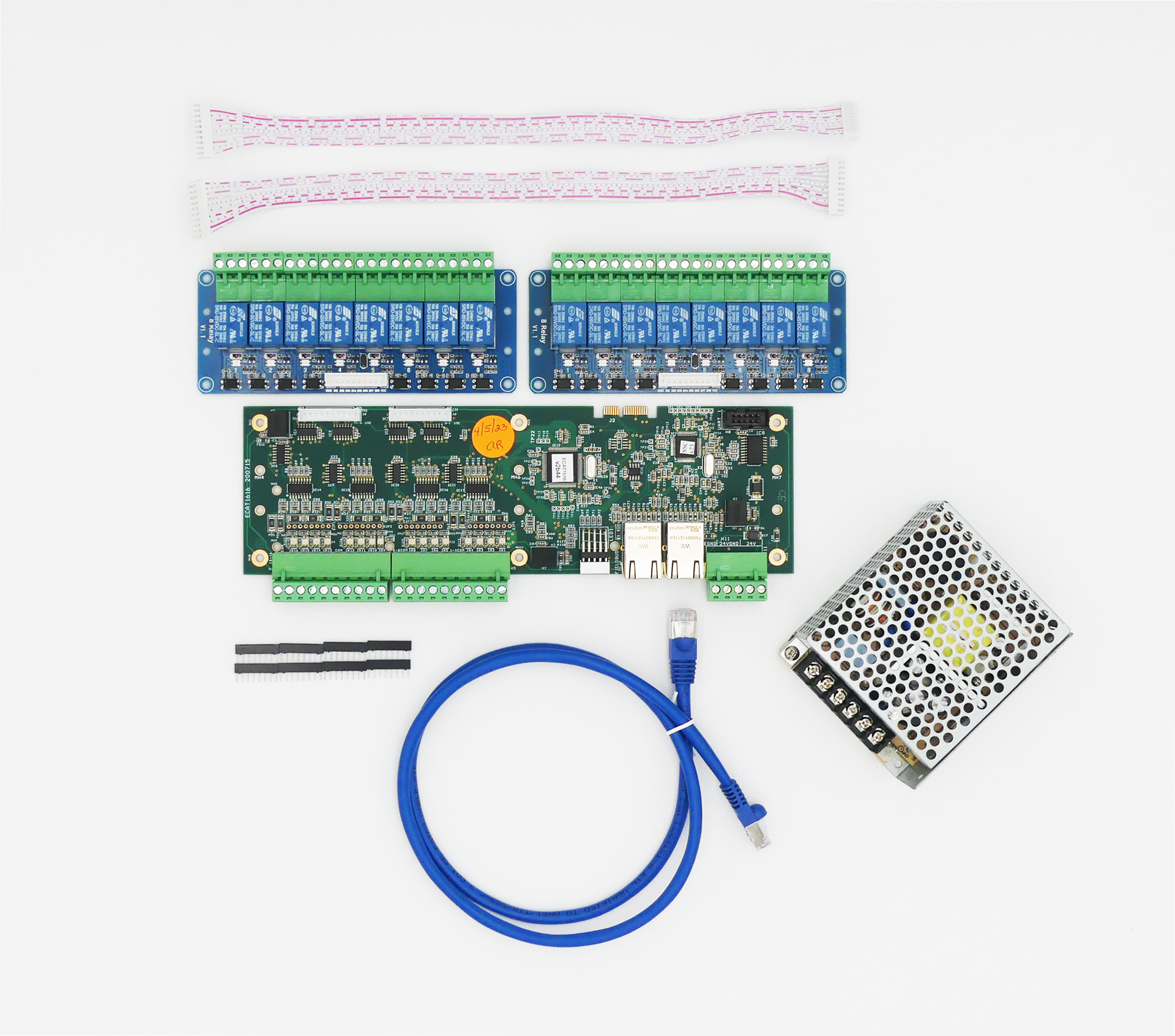

  • ECat1616 I/O Expansion Kit (#14992) includes:
    • 1x ECat1616 Board
    • 2x Relay 8 Modules
    • 2x Keyed Ribbon Cables
    • 1x 24 volt DC power supply
      • 50/60 Hz 100-120 VAC/208-240 VAC input power
    • 1x 15’ Shielded Ethernet cable
    • 4x 220 Ohm SIP resistors for 5 volt input
    • 4x 1k Ohm SIP resistors for 12 volt input

The ECat1616 is an input and output expansion board designed to be used with the Hickory CNC controller. Each ECat1616 board adds an additional 16 optically isolated inputs and 16 relay isolated outputs to the Hickory CNC system, up to five ECat1616 boards can be added to an Hickory system for a total of 80 additional inputs and 80 additional outputs. Three different input voltages can be used: 5 volts, 12 volts and 24 volt. Input voltages are mix and match capable and are selectable via bank of four of inputs at a time with the provided plug-in SIP (Single In-line Pack) resistors. The default input voltage is 24 VDC.

Both the ECat1616 and Relay 8 modules provide both Din Rail mounting holes and Standoff mounting holes to allow the DIY installer a wide variety of mounting possibilities!

The provided dedicated power supply is sized properly to provide enough power to drive the 16 relays. There are indicator LED’s on ECat1616 Inputs and on the Relay 8 Modules that indicate the state of the Inputs and Outputs.

Requirements for use with Hickory
- CNC12 V.5.04+


Compatible with:
