Centroid "USB-BOB" Operator Control Panel Interface Kit
CNC Controllers

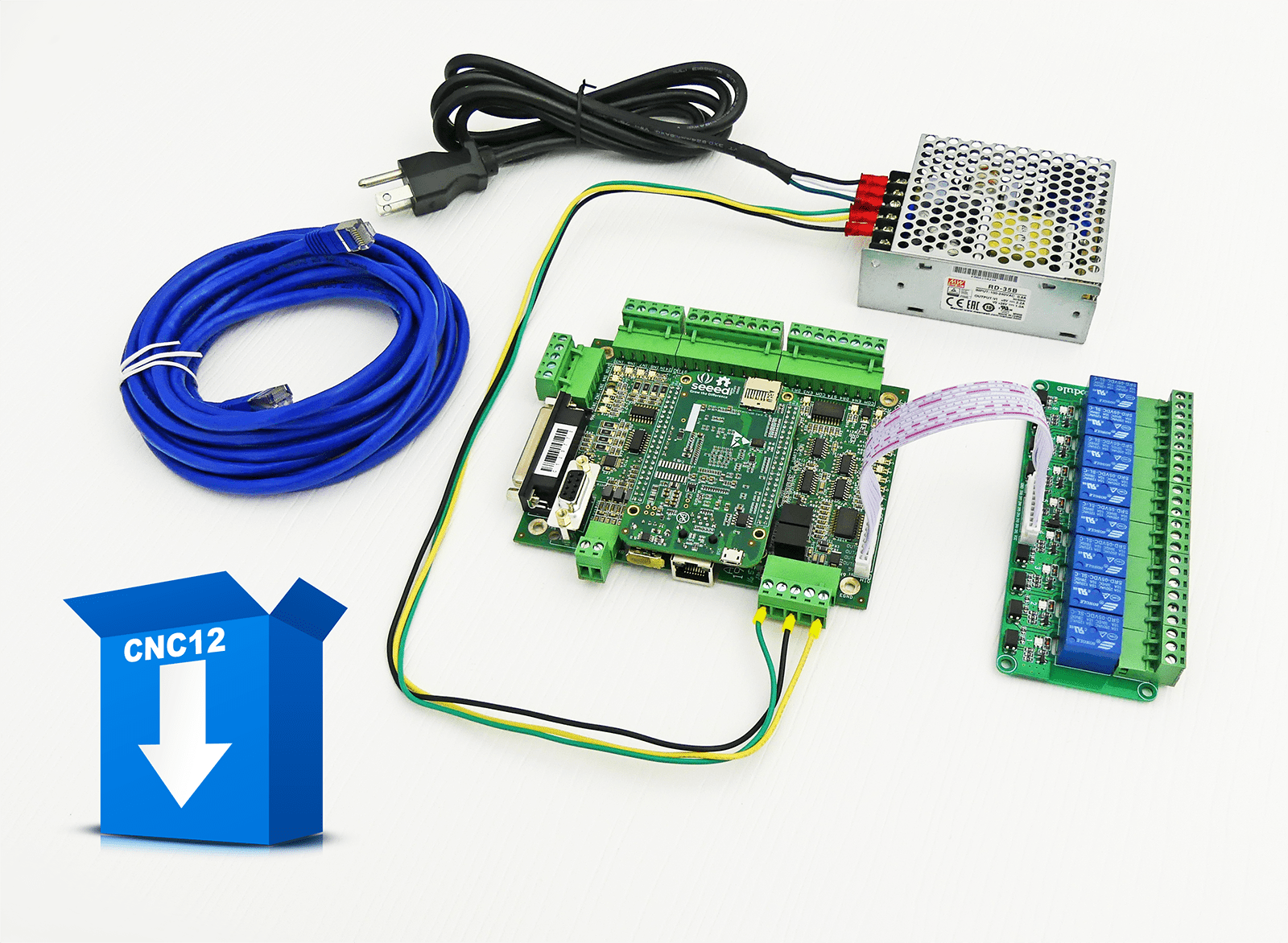

Acorn CNC Controller
- Up to 4 axis Step and Direction, Open Loop or Hybrid Closed Loop
- Hardware Axis Pairing with Auto Squaring
(frees up 4th axis for Rotary)
- Software Axis pairing with Auto Squaring
- 8 inputs and 8 Outputs, Add-on i/o up to 56 in/out
- One Encoder input
(typically used for spindle encoder for Rigid Tapping)
- 1 analog output (0-10/0-5 vdc for Spindle Speed VFD control)
- PWM output (Laser and/or Spindle)
- On board Motion Control CPU
- Ethernet communication to CNCPC

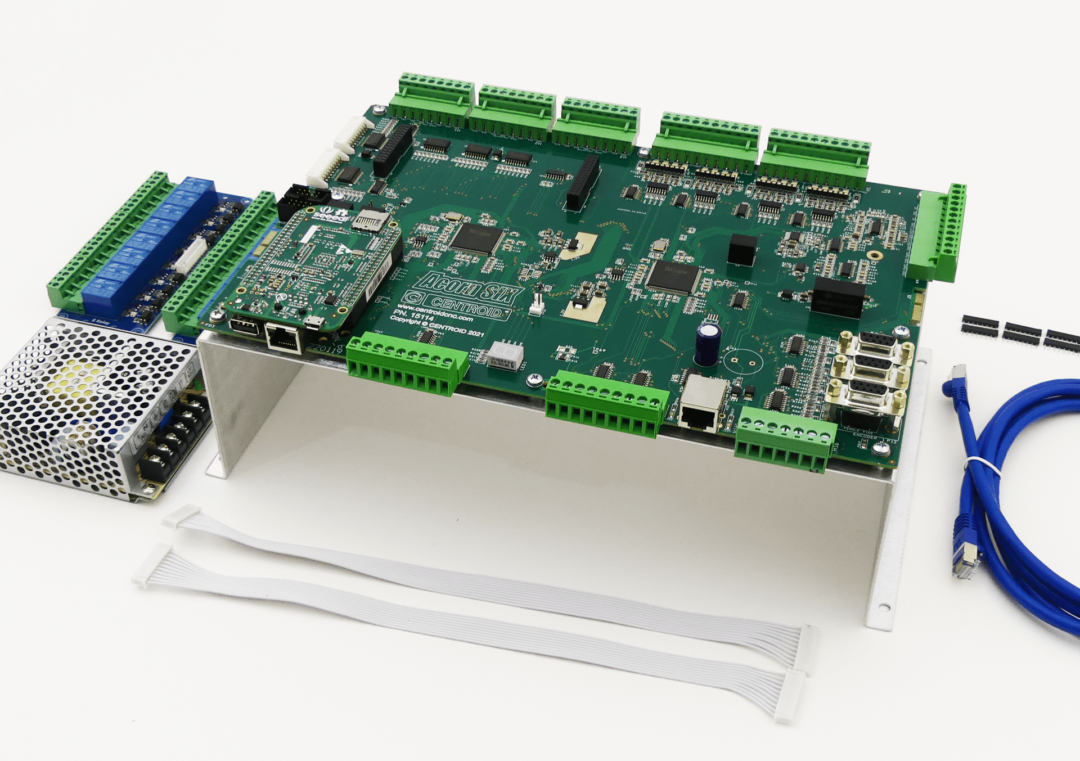

AcornSix CNC Controller
- Up to 6 axis Step and Direction, Open Loop
- 16 inputs and 16 Outputs (Add up to 64 in/64 out)
- Three Encoder inputs
- 2 analog output (0-10/0-5 vdc for VFD control)
- 2 PWM output (Laser and/or Spindle)
- On board Motion Control CPU
- Ethernet communication to CNCPC
- DIY Self Service Tech Support
Hickory CNC Controller
- Closed Loop CNC Controller
- EtherCAT Servo Drive Communication Protocol
- Connect up to 8 axes of servo drives, mix and match make/models
- Select from Plug and play Centroid curated EtherCAT servo drive models
- Onboard 32 in, 32 out. (Add up to 80 in/80 out)
- On board Motion Control CPU
- Ethernet communication to CNCPC
- Two Analog Outputs
- Two PWM Outputs
- One Analog Input
- Expandable, add additional i/o, encoder ports, analog in/out

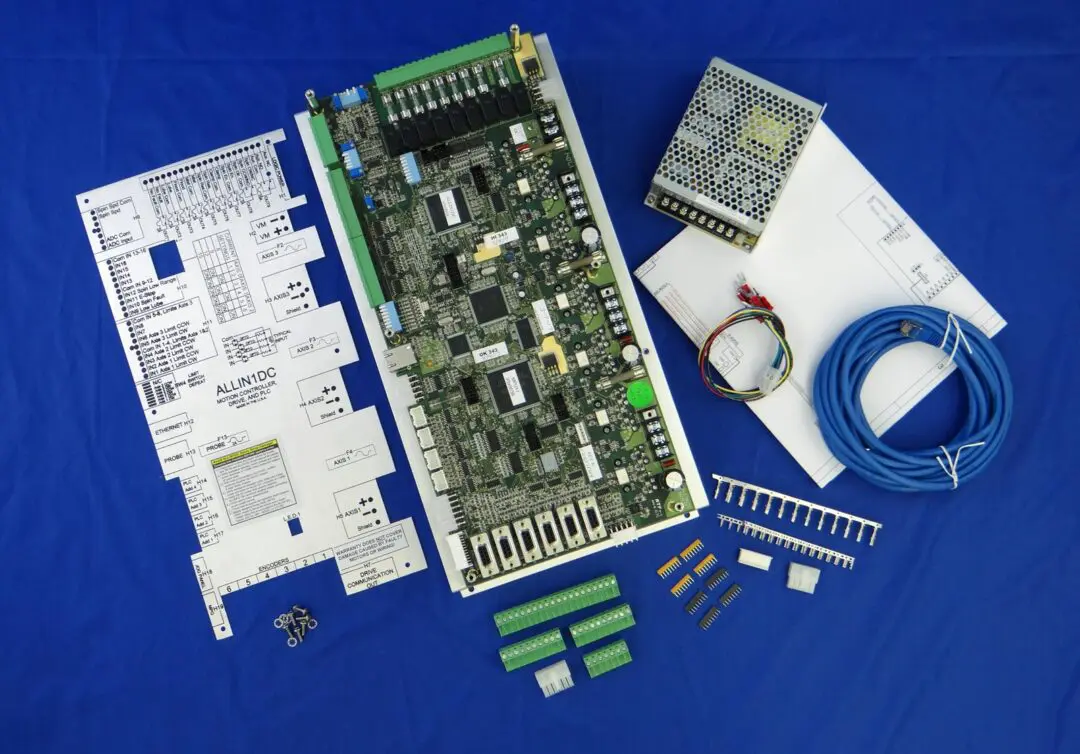

Allin1DC CNC Controller
- Up to six Axis DC servo only, Closed loop
- Onboard 16 inputs, 9 relay outputs (Add up to 272 in/272 out)
- 6 Encoder inputs
- Built-in 3 axis 15 amp per axis DC servo drive
- 1 analog out, 1 analog in, expandable to 16 In/16 Out
- On board Motion Control CPU
- Ethernet communication to CNCPC

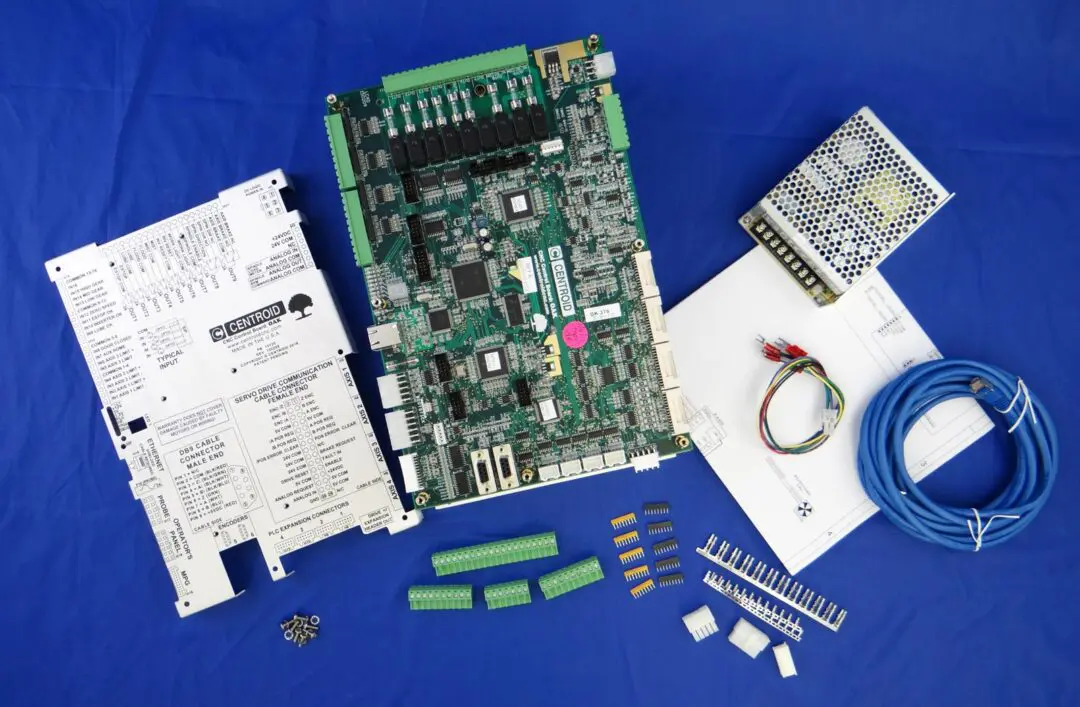

Oak CNC Controller
- Up to 8 axis, AC servo or DC servo, Closed Loop
- Onboard 16 in/9 Out (Add up to 272 in/272 out)
- 6 encoder inputs expanable to 28
- 1 analog out, 1 analog in, expandable to 16 In/16 Out
- On board Motion Control CPU
- Ethernet communication to CNCPC
CNC Control Board Comparison
Acorn | AcornSix | Allin1DC | Oak | Hickory | |
---|---|---|---|---|---|
Servo Motor types | Steppers or AC, Open or Hybrid Closed loop. | Steppers or AC, Open or Hybrid Closed loop. | DC Closed Loop w/built-in drives | AC Closed Loop | EtherCat Closed Loop w/ Centroid Curated Drives |
Maximum number of Axes | 4 | 6 | 6 | 8 | 8 |
Axis Motor Hardware Pairing | Yes, with auto squaring | Yes, with auto squaring | No | No | No |
Axis Motor Software Pairing | Yes, with auto squaring | Yes, with auto squaring | Yes, with auto squaring | Yes, with auto squaring | Yes, with auto squaring |
Compatible with Mills, Lathes, Routers, and other specialty machines | Yes | Yes | Yes | Yes | Yes |
AC Servo Motor/Drive compatible | Yes, (Step and Direction) | Yes, (Step and Direction) | No | Yes, Position/Precision & Velocity modes | Yaskawa Sigma 7, Glentek Gamma series, Estun Summa, Leadshine EL7 and EL8, Inovance SV660N |
DC Servo Motor/Drive compatible | Yes, (Step and Direction) | Yes, (Step and Direction) | Yes, up to 15 amps (continuous) per axis | Yes, using the Centroid AC/DC drive up to 60 amps per axis. | No |
Stepper Motor/Drive compatible | Yes | Yes | No | No | No |
True Closed Loop Operation | No, Hybrid Closed Loop: Yes | No, Hybrid Closed Loop: Yes. Also supports scales for Position correction | Yes, also supports scales for position correction | Yes, also supports scales for position correction | Yes, also supports scales for position correction |
Built in Motion Control CPU | Yes | Yes | Yes | Yes | Yes |
Built in DC servo motor amplifier | No | No | Yes | No | No |
Built in PLC | Yes 8 In, 8 Out | Yes 16 In, 16 Out | Yes, 16 In, 9 relay out | Yes, 16 In, 9 relay out | Yes 32 In, 32 Out |
Maximum Inputs and Outputs | 56 in/ 56 out | 96 in / 96 out | 272 In / 272 Out | 272 In / 272 Out | 110 in/ 110 out |
Optional input output expansion board | Yes | Yes | Yes | Yes | Yes |
Optically Isolated Inputs | Yes | Yes | Yes | Yes | Yes |
Fused Relay Outputs | No, installer adds fuse | No, installer adds fuse | Yes | Yes | No, installer adds fuse |
On board relay output types | Ribbon cable to Relay 8 board (8 relay outputs) | 2x Ribbon cable to Relay 8 board (16 relay outputs) | 7 SPST and 2 SPDT | 7 SPST and 2 SPDT | 4x Ribbon cable to Relay 8 board (32 relay outputs) |
Built-in Analog spindle control output | Yes 0-10 vdc or 0-5 vdc | Yes, 0-10, +-10, 0-5, +-5 12 bit | Yes, 0-10, +-10, 0-5, +-5 12 bit | Yes, 0-10, +-10, 0-5, +-5 16 bit | Yes, 0-10 15 bit, +-10 16 bit, 0-5 14 bit, +-5 15 bit |
PWM output for Laser and/or Spindle | Yes, 1 PWM output | Yes, 2 PWM output | No | No | Yes, 2 PWM output |
Runs on Centroid Mill, Lathe, Router, or Plasma CNC software | Yes | Yes | Mill and Lathe Only | Mill and Lathe Only | Yes |
Base Centroid CNC software included with CNC control board price | Centroid CNC12 "Free" CNC software Mill, Lathe, Router, and Plasma | Centroid CNC12 "Free" CNC software Mill, Lathe, Router, and Plasma | Centroid CNC12 "Free" CNC software Mill and Lathe | Centroid CNC12 "Free" CNC software Mill and Lathe | Centroid CNC12 "Free" CNC software Mill, Lathe, Router, and Plasma |
Centroid CNC Software Licenses | Centroid Mill, Lathe, Router, and Plasma "Pro" CNC software
Centroid Mill, Lathe, Router, Plasma "Ultimate" CNC software |
Centroid Mill, Lathe, Router, and Plasma "Pro" CNC software
Centroid Mill, Lathe, Router, Plasma "Ultimate" CNC software |
Centroid Mill and Lathe "Pro" CNC software
Centroid Mill and Lathe "Ultimate" CNC software |
Centroid Mill and Lathe "Pro" CNC software
Centroid Mill and Lathe "Ultimate CNC software" |
Centroid Mill, Lathe, Router Plasma "Pro" CNC software
Centroid Mill, Lathe, Router, Plasma "Ultimate" CNC software |
Plasma THC Compatible | Yes | Yes | No | No | Yes |
Uses Standard G and M codes | Yes | Yes | Yes | Yes | Yes |
Probing and Digitizing compatible | Yes | Yes | Yes | Yes | Yes |
Compression and Rigid Tapping Compatible | Yes | Yes | Yes | Yes | Yes |
Automatic Tool Measurement Compatible | Yes | Yes | Yes | Yes | Yes |
Spindle Encoder feedback, w/ RPM display | Yes | Yes | Yes | Yes | Yes |
Lathe Constant Surface Speed | Yes | Yes | Yes | Yes | Yes |
Lathe Threading | Yes | Yes | Yes | Yes | Yes |
Compatible with Windows 10/11 | Yes | Yes | Yes | Yes | Yes |
Centroid Touch Screen Operator Control Panel Compatible | Yes | Yes | Yes | Yes | Yes |
Centroid Operator Control Panel Hardware Compatible | No | Yes | Yes | Yes | Yes |
Centroid USB-BOB Compatible | Yes, with Wizard Support | Yes, with Wizard Support | Yes, with PLC Modification | Yes, with PLC Modification | Yes, with Wizard Support |
Xkeys & Xbox Controller/Panel Compatible | Yes | Yes | Yes | Yes | Yes |
Centroid CNC Console Compatible | No | Yes | Yes | Yes | Yes |
Keyboard Jogging and controls compatible | Yes | Yes | Yes | Yes | Yes |
Encoder Expansion Board Compatible | No | Yes | Yes | Yes | TBA |
PLC Expansion Board Compatible | Yes | Yes | Yes | Yes | Yes |
Analog IN/OUT Expansion Board Compatible | No | Yes | Yes | Yes | Yes |
Wireless USB MPG Compatible | Yes | Yes | Yes | Yes | Yes |
CNC Configuration Wizard | Yes | Yes | TBA | TBA | TBA |
Built in Encoder ports | 1 | 3 | 6 | 6 | 3 |
Maximum # of Encoder connections | 1 | 9 | 12 | 12 | 3, future encoder exp. planned |
Maximum # of Analog outputs | 1 | 6 | 17 | 17 | 2, future analog exp. planned |
Velocity Mode | No, (Step and Direction only) | No, (Step and Direction only) | No, (Closed Loop Torque Mode) | Yes | No |
Position Mode | No, (Step and Direction only) | No, (Step and Direction only) | No, (Closed Loop Torque Mode) | Yes | Yes, via EtherCAT |
Real Time Hardware Based Step and Direction Output | Yes | Yes | No | No | No |
Axis Motor Tuning | Yes, Accell/Decell | Yes, Accell/Decell | Yes, Built in Tuning Scope for PID Tuning | Yes, Built in Tuning Scope for PID Tuning | Yes, Built in Tuning Scope for PID Tuning |
Motion control off-loaded from CNC PC CPU | Yes | Yes | Yes | Yes | Yes |
G code Smoothing | Yes | Yes | Yes | Yes | Yes |
DIY Kits available | Yes | Yes | Yes | Yes | Yes |
Any axis can be Linear or Rotary Axis | Yes | Yes | Yes | Yes | Yes |
Rotary Table Compatible | Yes | Yes | Yes | Yes | Yes |
Build your own compatible CNC PC | Yes | Yes | Yes | Yes | Yes |
Factory CNCPC with preloaded CNC software available for purchase | Yes | Yes | Yes | Yes | Yes |
Runs on regular 110 VAC power (USA market 110 VAC, World 220-240 VAC) | Yes | Yes | Yes | Yes | Yes |
Spindle Motor can run on single phase 220-240 VAC | Yes | Yes | Yes | Yes | Yes |
Designed and Made in USA | Yes | Yes | Yes | Yes | Yes |
