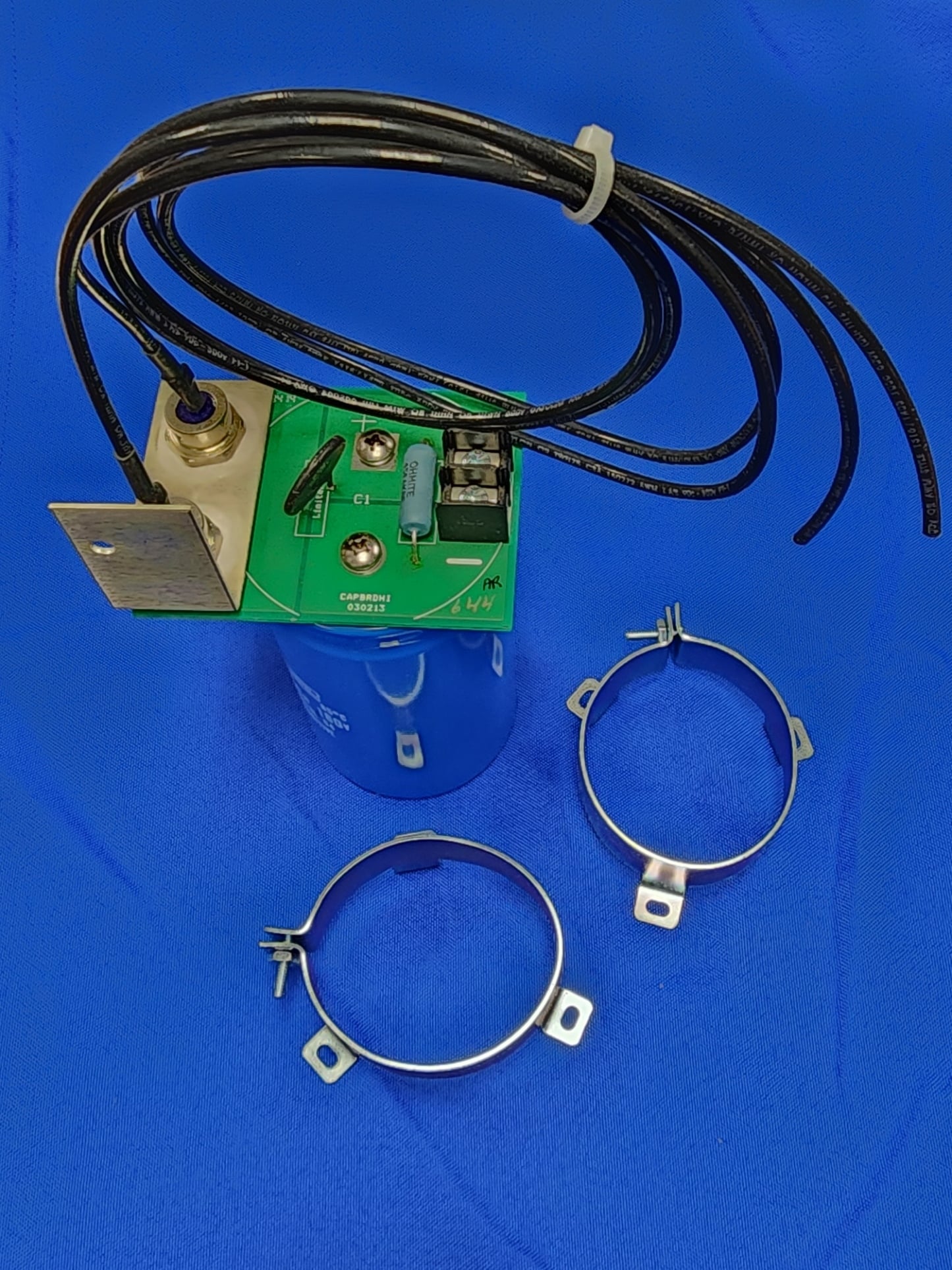

Centroid's "Full Wave Rectifier" DC Servo Motor main bus Power Generator - for use with 220/440VAC

This DC servo main power generator unit is for Large DC servo motor applications.

(Note: For typical knee mill and small bed mill applications the 110/120 volt Centroid DC power generator (#12726) will work just fine, here is the link.)

This unit is designed for systems that already run on 220vac or 440vac for the main input voltage and/or have several large DC axis servo motors (for example 40 in-lb servos on a machining center) This unit has more DC power capacity that the 110/120 volt Centroid DC power generator(#12726)

- Easily powers up to six 40 in-lb DC servo motors
- High quality large capacity for smooth DC voltage output
- Preassembled, ready to use
- Commonly used for both new CNC control installations and retrofit upgrades
- Designed for use with a Center Tap transformer. See typical hook up schematics.
- Allin1DC compatible

Minimum AC input = 100
Maximum AC input = 280

Maximum DC Output = 180 DC volts

Power Conversion Examples:
- AC volts IN x .637 = DC volts out
- 200 VAC input yields 127.4 VDC out
- 183 VAC input yields 116.6 VDC out

Use an input voltage that results in a DC voltage out lower than the rated maximum of the servo motor AND the Allin1DC (180 DC volts max)



Typical hook up schematics:

See this DC Servo motor power discussion for more information.
Schematic is available in the ALLIN1DC Individual Circuit Schematic Set, see Page 6
