KP-3 CNC touch probe for Hickory

SKU: 15342 Category: Tags: ,

$699.00

Estimated Shipping Date

Ordered
Shipped
  • KP-3 CNC Touch Probe (#15342) includes:
    • 1x KP-3 Probe
    • 1x 2.5 mm x 40mm Carbide Stem, Ruby Tipped Stylus
    • 1x Stylus Wrench
    • 1x KP-3 to Hickory Lead
    • 1x KP-3 Users Manual
    • 1x KP-3 to Centroid Controller Schematic

Part, Vise and Fixture Probing: Automatically Set Zero points fast and accurate.

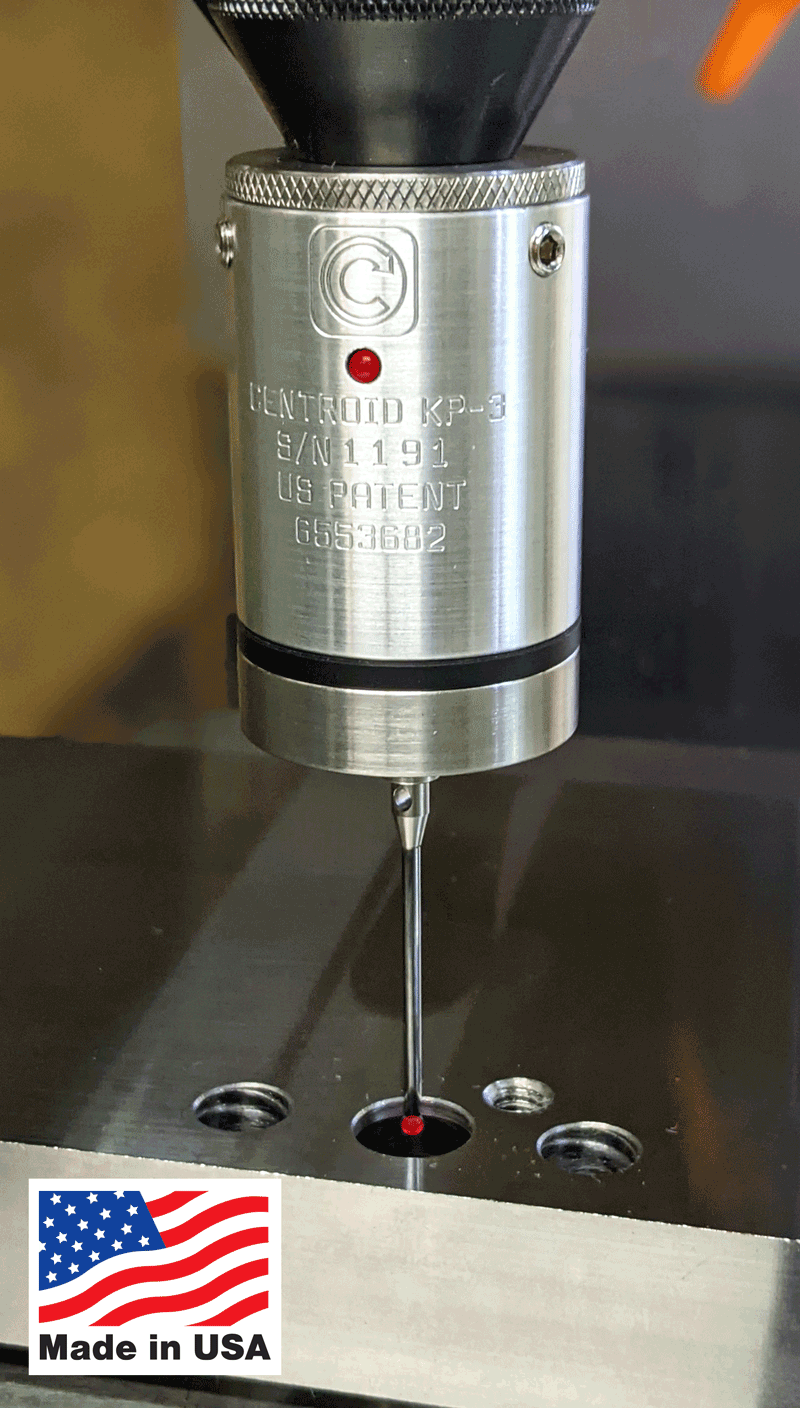

Use the KP-3 probe to quickly and accurately find zero points on a vise, fixture or part. Eliminate operator error when setting zero points, finding edges, or center locations of bosses or bores, slots and webs. Eliminates the need for a centerfinder or an edgefinder. You'll never have to spend 30 minutes using a center finder to locate the center of a bore again. The probe will find and set the center of a bore in just seconds. In addition, the probe can be used to verify part dimensions and locations and many other applications. The KP-3 mounts in any 1/2" or 10mm tool holder and has concentric adjustment screws. Also compatible with Mach3/4, WinCNC, LinuxCNC, Pathpilot and others.

Replacement or additional probe tips can be purchased here.

KP-3 Specifications
   -Probing directions X+/-, Y+/-, Z-
   -Unidirectional repeatability (2 sigma) 0.00006” (1.5 micron)
   -Practical use results on a good milling machine .0005”
   -Probe deflection force (X,Y) 3 ounce minimum with 40mm stylus
   -Probe deflection force (Z) 15 ounce minimum
   -Probe body diameter and length D= 1.35” (34.3mm) L= 2.16” (54.9mm)
   -Mounting shank diameter and length D= 0.5” (12.7mm) L= 1.47” (37.3mm)
   -Stylus mount thread M3 thread
   -Power supply required: none
   -LED status indicator red when triggered (powered by input 1ma)
   -Weight of probe and ½”shank 0.40 lb
   -Over travel limit angle (X,Y) +/- 12 degrees from vertical
   -Over travel limit (Z-) 0.25” (6.25mm)
   -Environmental IP64
   -Patented concentric alignment (spindle/tool holder/probe body run out adjustment)



Compatible with:
  • Probing directions X+/-, Y+/-, Z-
  • Unidirectional repeatability (2 sigma) 0.00006” (1.5 micron)
  • Practical use results on a good milling machine .0005”
  • Probe deflection force (X,Y) 3 ounce minimum with 40mm stylus
  • Probe deflection force (Z) 15 ounce minimum
  • Probe body diameter and length D= 1.35” (34.3mm) L= 2.16” (54.9mm)
  • Mounting shank diameter and length D= 0.5” (12.7mm) L= 1.47” (37.3mm)
  • Stylus mount thread M3 thread
  • Power supply required none
  • LED status indicator red when triggered (powered by input 1ma)
  • Weight of probe and ½”shank 0.40 lb
  • Over travel limit angle (X,Y) +/- 12 degrees from vertical
  • Over travel limit (Z-) 0.25” (6.25mm)
  • Environmental IP64
  • Patented concentric alignment (spindle/tool holder/probe body run out adjustment)
