Acorn and AcornSix Laser CNC Control

Centroid Laser CNC controller kits are both a CNC Hardware and CNC Software DIY system designed to work together for easy CNC setup and operation with minimal fuss. Works with a wide variety of PWM controlled Lasers. The Centroid CNC Laser cutting and engraving system has useful CNC Laser features such as Laser Power Velocity Modulation where the Laser Power is adjusted automatically based on actual machine velocity.

Centroid "Acorn" Step and Direction CNC Controller kit: a 4 axis CNC control with built-in motion control CPU. A reliable, high performance, industrial quality CNC control at a do-it-yourself price. Acorn utilizes an integrated 1Ghz ARM Cortex A8 Motion Control CPU and communicates with CNCPC via a fast and reliable Ethernet connection. The Acorn CNC control board controls a wide variety of axis motors and drives with industry standard step and direction command signal. Compatible with small to large axis motors of all types and can be used with most any AC brushless servo motor drive packages such as: DMM, Delta, Estun, Teco, Teknic, Yaskawa and others. Any drive that accepts step and direction commands. Most all stepper motor drives (open and closed loop drives) are compatible with the Acorn board such as the popular Leadshine stepper drives. Acorn runs on Centroid's proven industrial quality CNC control software.
The Acorn CNC system has been engineered, built, and tested at our Centroid facility in the USA. All units ship ready to run after thorough testing and quality control.
Acorn Controller Kit
SKU: 14455 Category: Tags: ,

$363.00

Estimated Shipping Date

Ordered
Shipped
  • Centroid Acorn CNC controller kit (#14455) includes:

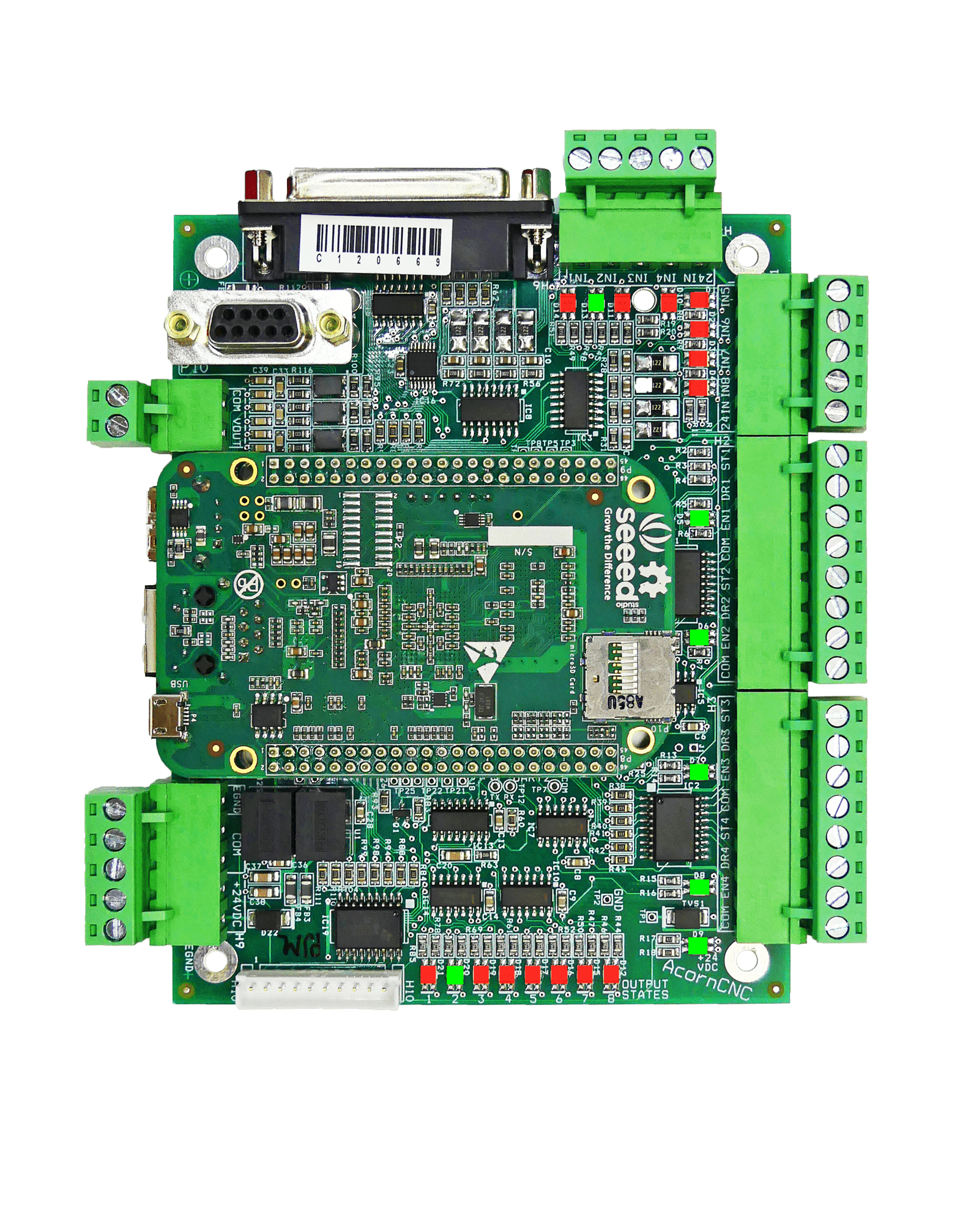

    • 1x Acorn CNC control board

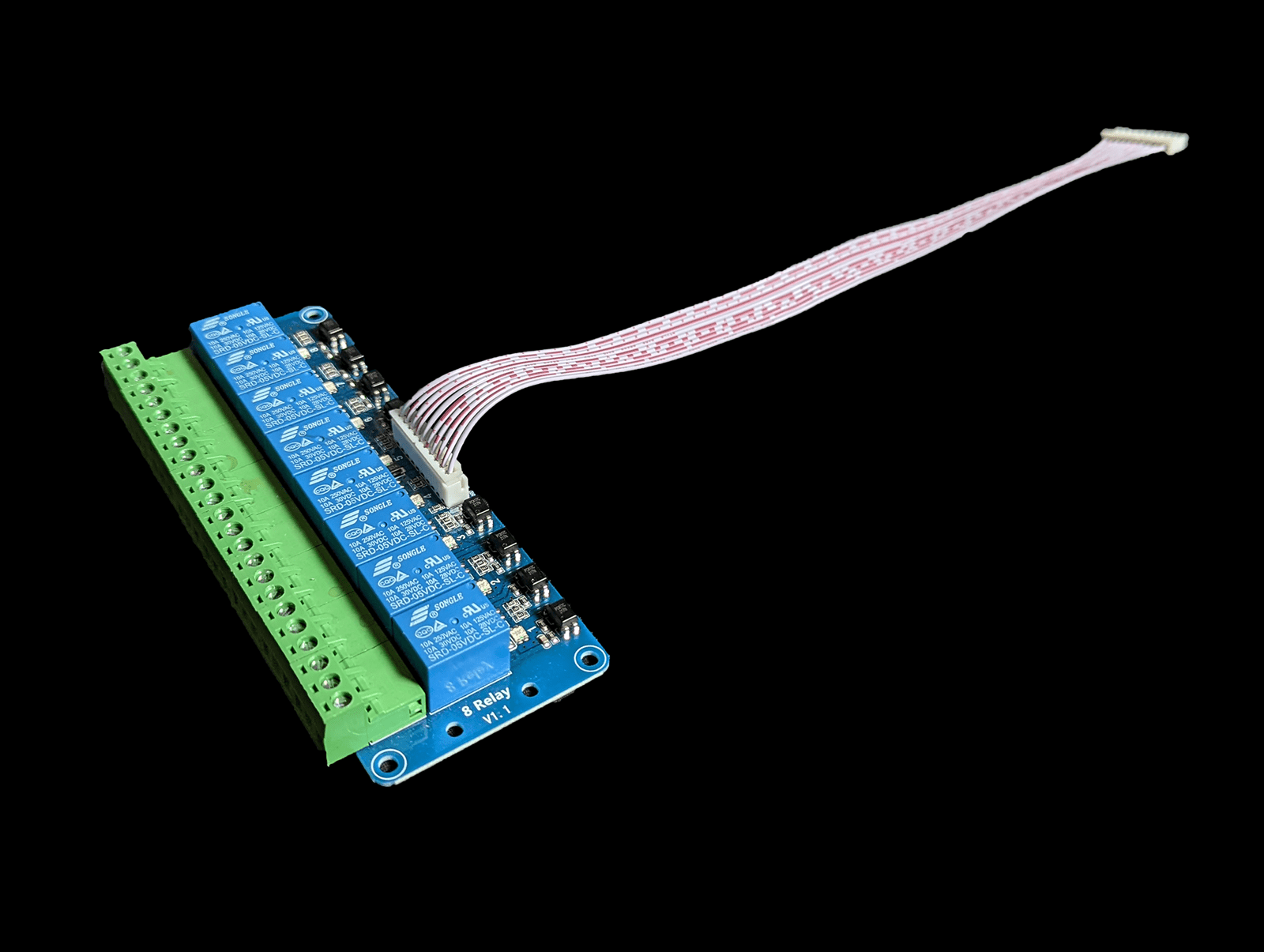

    • 1x Acorn Plug and Play Relay8 Module
    • 1x Dual power 5 VDC and 24 VDC logic power supply
      • 50/60 Hz 100-120 VAC/208-240 VAC input power
    • 1x Logic power supply hookup leads
    • 1x 110 VAC power cord
    • 1x 15’ Shielded Ethernet cable

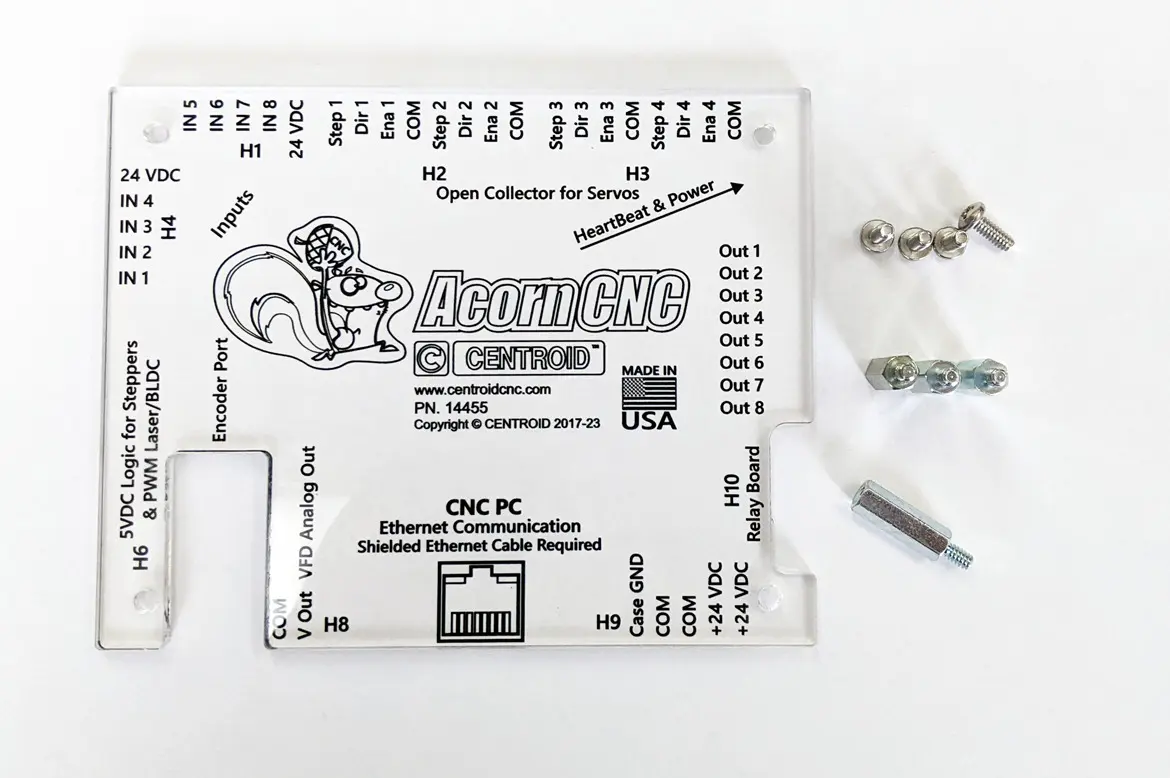

    • 1x Plexi Acorn Cover
    • 4x 6-32x3/4" Standoffs for Acorn Cover
    • 4x 6-32x3/8" Screws for Acorn Cover

(Note: A 1920x1080 wide screen LCD Display is required and a Touch Screen is recommended.)

Email and Phone orders are also accepted.
Email diysales@centroidcnc.com or call 814-353-9256 ext 122
M-F 9-5 EST to place your orders.

AcornSix Kit
SKU: 15136 Category: Tag:

$1,099.00

Estimated Shipping Date

Ordered
Shipped

Please download, complete, and sign these documents then attach them below and click 'Add to Cart'. These documents are required by the US Government because of export restrictions placed on proprietary 5 or more axes simultaneous contouring software.



  • Centroid AcornSix CNC controller kit (#15136) includes:
    • 1x AcornSix CNC control board
    • 2x Acorn Plug and Play Relay8 Module
    • 1x Dual power 5 VDC and 24 VDC logic power supply
      • 50/60 Hz 100-120 VAC/208-240 VAC input power
    • 1x 15’ Shielded Ethernet cable
    • 1x Riser Mounting Pan

(Note: A 1920x1080 wide screen LCD Display is required and a Touch Screen is recommended.)

Acorn CNC control kits are both a CNC Hardware and CNC Software DIY system designed to work together for easy CNC setup and operation with minimal fuss.

Centroid "AcornSix" Step and Direction CNC Controller kit: a 6 axis CNC control with built-in motion control CPU.

A reliable, high performance, industrial quality CNC control at a do-it-yourself price. AcornSix utilizes an integrated 1Ghz ARM Cortex A8 Motion Control CPU and communicates with CNCPC via a fast and reliable Ethernet connection. The AcornSix CNC control board controls a wide variety of axis motors and drives with industry standard step and direction command signal. Perfect for many types of machine tools such as: CNC milling machines, a wide variety of CNC Routers, CNC lathes to CNC Lasers, and other specialty applications. Compatible with small to large axis motors of all types and can be used with most any AC brushless servo motor drive packages such as: DMM, Delta, Estun, Teco, Teknic, Yaskawa and others. Any drive that accepts step and direction commands. Most all stepper motor drives are compatible with the AcornSix such as the popular Gecko and Leadshine stepper drives. AcornSix runs on Centroid's proven industrial quality CNC control software.

Support & Documentation
Features
FAQ
  • On board 1Ghz Motion Control CPU
  • Plasma software with setup Wizard
  • Touch screen operators control panel (user configurable VCP)
  • Reliable Ethernet communication with CNCPC
  • Runs on Windows 10 or 11
  • Compatible with CAD/CAM systems
  • Float Head support
  • Breakaway head support
  • Ohmic sensor support
  • Conductive Torch Tip support
  • Laser XY zero set
  • Scribe support
  • Closed Loop Torch Height Controller
  • Runs Standard G & M Codes
  • True G-code back plot
  • 2000 line accell decell look ahead
  • 1200 blocks per second
  • Backlash compensation
  • Ballscrew compensation
  • Feed rate override operator variable 0-200% at 1% increments
  • Rapid rate override
  • Target Voltage override
  • Spindle Control. on/off cw/cw, speed w/override
  • 8 optically isolated inputs, user configurable
  • 8 Relay Outputs, user configurable
  • DB25 drive connection for stepper motors.
  • Gecko G540/Mach3 standard pin out AND programmable pin out on DB25
  • Screw Terminal for AC motor/drive connections
  • Single 24 vdc logic power input
  • Target Voltage Display
  • Simple Menu Driven Operator Interface
  • Stop and Restart Job at any point
  • Torch Check, Jog and Restart at any point
  • Lube Pump control (user configurable to match pump type)
  • MDI mode with recent command memory
  • Programmable Auxiliary Function keys
  • Multiple Language Support
  • User editable PLC programming
  • Part counter, Time, Time estimation
  • Simple Future Software updates available
  • Notepad ++ G code editor
  • Utility Menu
  • Backup and Restore CNC config
  • Message Display and Logs
  • Open Loop CNC operation
  • Unlimited Program Storage (Pro License, only limited by hard drive size)
  • Large easy to read DRO display
  • Menu Driven Part setup
  • Menu Driven Tool setup
  • Menu driven machine configuration setup
  • Fill in the blank Setup Menus
  • Run Menu
  • CNC control configuration menu
  • Restart Job Automatically
  • Any axis can be linear or rotary axis
  • G-code smoothing (user adjustable)
  • Auto Home to switch, user selectable direction per axis
  • Auto Parking, User editable
  • ZRI input homing
  • User editable Homing program
  • Software Travel Limits (+ and - directions)
  • User configurable Slow, Fast, Max rates
  • User configurable axis motor acceleration
  • Spindle encoder input Plasma Torch Voltage Feedback
  • Dry Run
  • User editable Park program
  • Wireless MPG control pendant (Pro license required)
  • Keyboard Operator Control panel emulator,
  • Xkeys USB control pad compatible
  • Contour ShuttleXpress compatible
  • Xbox controller compatible
  • Gcode backplot checks work envelope
  • G code backplot shows true cutter comp moves
  • Vary part backplot speed and pause w/ G-code line display
  • Real Time Part Graphics, shows tool position while running
  • Optional Stops
  • User editable Subprograms and Macros
  • Engraving compatible (short vector g code no problem)
  • Run in Inch or MM mode
  • Laser cutting and engraving support
  • PWM output control for Laser and/or Spindle
  • Long part names
  • USB and Network Drive Compatible
  • Distance to go DRO
  • Machine Coordinates DRO
  • Active G codes display
  • Software or Hardware paired axes
  • Auto Squaring of paired axis Gantry
  • Reset Home
  • Control relays and contactors thru Manual or Program control
  • User configurable custom DIY M-codes
  • Canned Cycles
  • X/Y axis Deskew, corrects for axes out of square.
  • Mouse and Keyboard jogging in addition to VCP, MPG Pendant and Xkeys pendant, Contour Shuttle
  • Runs on 100-120 VAC OR 200-240 VAC power input.
  • Runs on USA and International Power

    •   Can I buy one Pro Acorn CNC12 license and use it on several Acorn CNC control boards?

    •   No, the Centroid Acorn Pro and Ultimate licenses are tied to the Acorn board serial number. When purchasing a Pro or Ultimate license, the Acorn serial number is required and then a Pro or Ultimate license is created that matches the Acorn board serial. When the CNC12 software starts, it checks the Pro or Ultimate license against the Acorn board that is connected to the CNCPC for a match. If it matches, then that particular level (Pro or Ultimate) of CNC12 software is made active. If it doesn't match, then the CNC12 software runs at the "Free" level. (So Acorn CNC12 will run without any license installed)

    •   If I buy an Acorn Mill Pro CNC12 license and then decide to upgrade to the Ultimate license how much does that cost?

    •   $299

    •   Can I buy an Acorn Mill Pro and Acorn Lathe Pro and Acorn Ultimate for use on the same Acorn Board?

    •   Yes.

    •   Can I ask Centroid to move a Pro or Ultimate software License from one Acorn board to another?

    •   If Centroid issues an RMA for an Acorn board to be returned, any License associated with that board can be transferred to another Acorn board.

    •   Do I have to state at time of purchase what machine I plan on using the Acorn with?

    •   No. Both the Mill and Lathe Free version of Acorn CNC12 control software is available for download so you can configure the Acorn controller for a wide variety of machine tools. The hardware doesn't care what kind of machine it connected to.

    •   If I bought an Acorn Mill Pro License, can I use it with the Acorn Lathe Software?

    •    No. The Acorn Pro License is Mill and Lathe specific. There is a Pro License for Mill and there is a Pro license for Lathe.

    •   If I destroyed the BBG (Beagle Bone Green) that came with my Acorn board can I supply my own?

    •   Yes, but the License file(s) that were issued for that Acorn will not work with the new BBG. Centroid offers License transfer service for $29 which requires you to email us a report.zip file to diysales@centroidcnc.com. Information on how to generate a report.zip file is here.

    •   How big of a G-code program can I run with the Free version of CNC12 software?

    •   50Kb.
      To give you an idea of what can be done with the Free version of the Acorn CNC12 software: on our website is a part program for a SEM DC servo motor cover plate, below on the left is the plate being installed and on the right is the tool path that was used to make the cover plate. This G code program to make this part is 5Kb in size. This is pretty typical of a home hobby shop type part. The G code file generated by a cad cam system or in this case Centroid's Intercon conversational programming software (with comments!) to make this part the G-code program is only 5kb in size. The Centroid FREE version of CNC12 has a file size limitation of 50KB so you could run a G code program 10 times this size with the Free version of CNC12. As you can see, you can do a lot even with the Free version of the Acorn CNC12 software.

      The 5kb Gcode program used to cut this SEM servo motor cover plate is available here (click to view, right click link and Save as to download).

      Note: The Centroid PRO version of CNC12 has no file size limitation so you could run a file as large as the hard drive on the CNCPC and the Ultimate License also has no file size limitation. (only limited by the size of the CNCPC hard drive space)

    •   How long does it take to ship the Acorn CNC control kit?

    •   Typically the Acorn CNC control kits are in stock ready to ship and ship within one or two business day from Howard, PA via UPS GND. You will receive an email with tracking number when your kit ships.

    •   How do I contact Technical Support?

    •   Free Acorn Technical Support is available 24/7 on the Acorn CNC community support forum. Here is how to sign up for the Free Support Forum. Centroid Direct Technical Support is available for $120/hr. one hour min. purchase support here and email support@centroidcnc.com with a current Report.zip file.

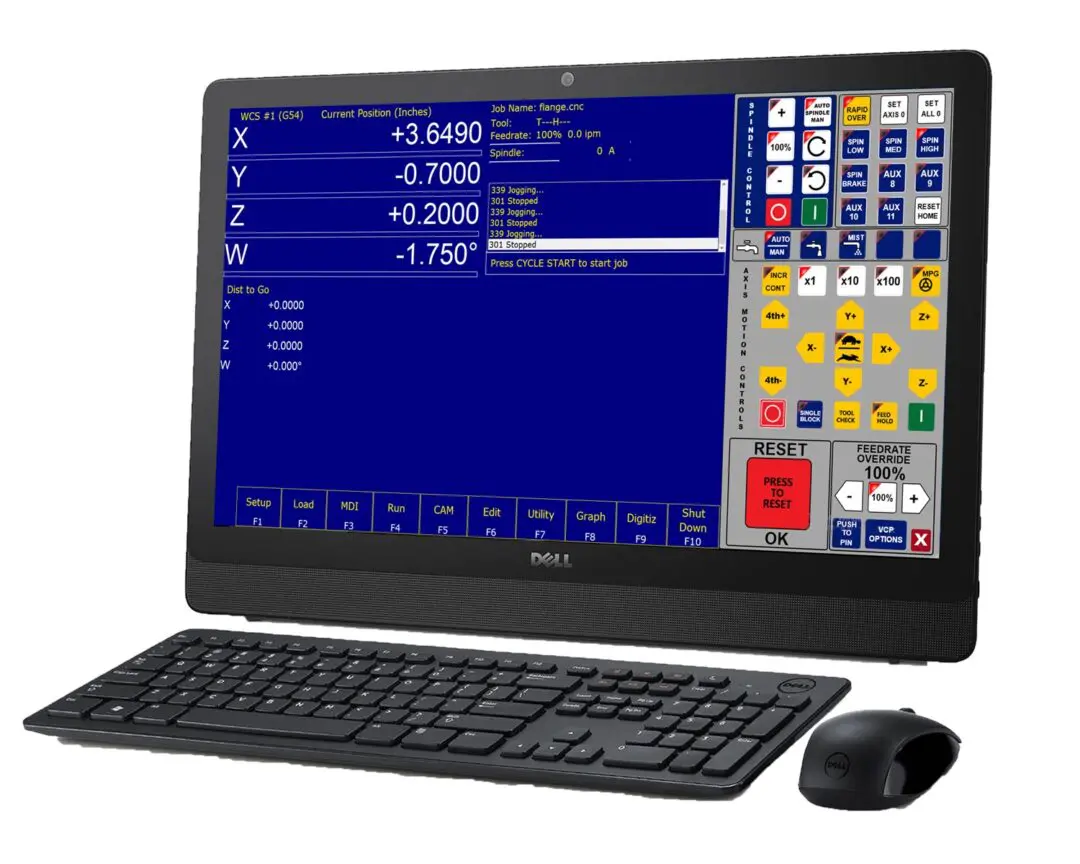

    •   Do I need to purchase a PC from Centroid or can I build my own?

    •   Ready to run Centroid CNCPC's are avalible for sale from Centroid, alternatively you can supply your own CNCPC as long as it meets the Centroid Minimum PC performance specifications found here.

    •   What is the Acorn Return, Warranty and Repair policies?

    •   Please see this page for complete details.

    •   Is there a return restocking fee?

    •   Yes. There is a 15% restocking fee on all returned parts and products.

Centroid Laser CNC Software Licenses

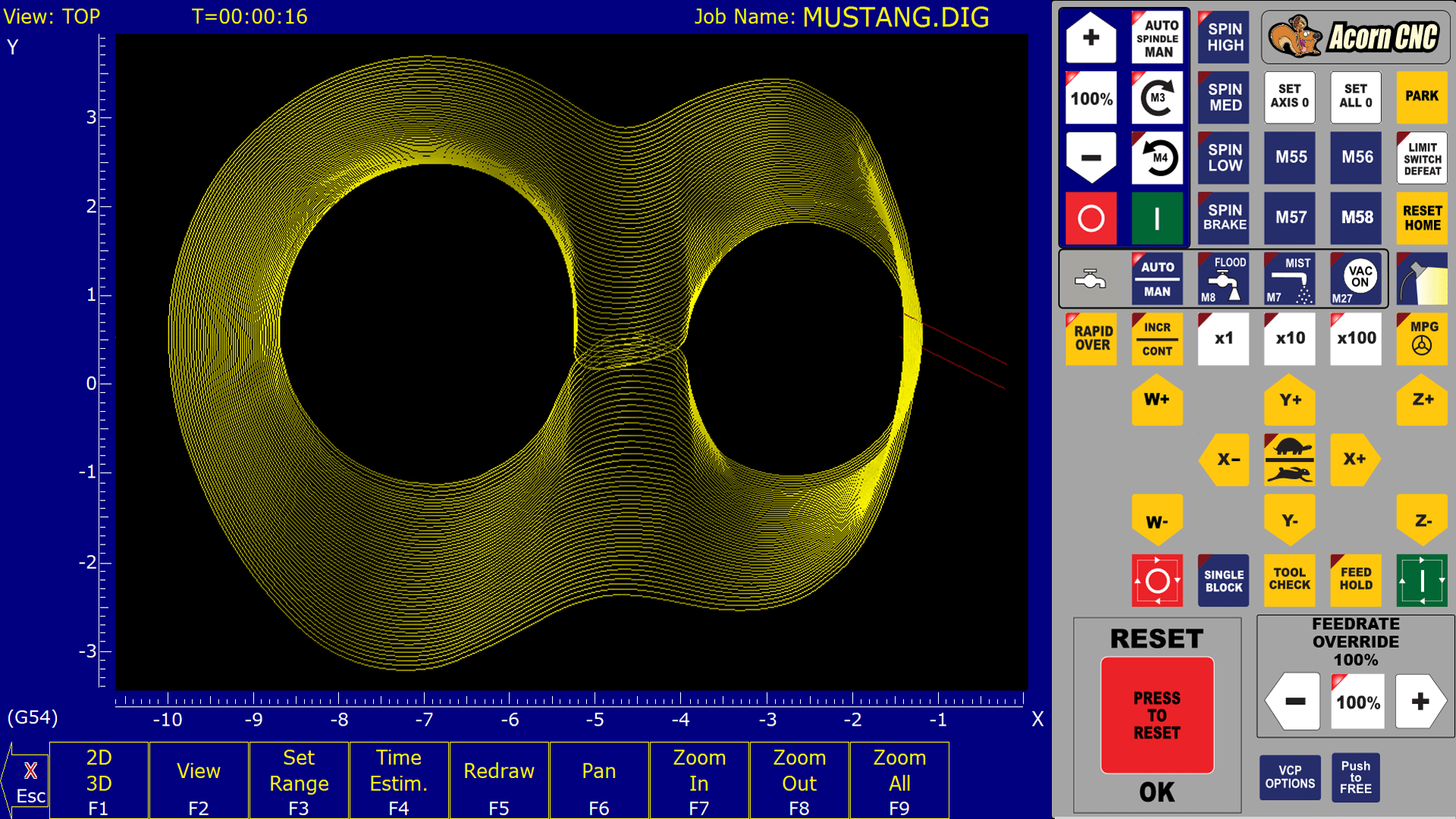

A digitizing graph is shown
SKU: 15255 Category: Tag:

$229.00$1,399.00

Estimated Processing Date

Ordered
Processed



If you are buying a License for an existing control, please upload the Report.zip from that control before pressing 'Add to Cart' or you can Email your Report.zip file to diysales@centroidcnc.com, please note your order number in the email. Alternatively, if you have the Barcode or Serial Number from an existing control, you can enter it in the box below then click 'Add to Cart'. If you are purchasing a new CNC Controller and a License file, you do not have to upload a Report.zip file or enter a Barcode or Serial Number as we will automatically assign the license file to the CNC Controller you are purchasing.



Please see the detailed table below describing the differences between Pro and Ultimate software levels

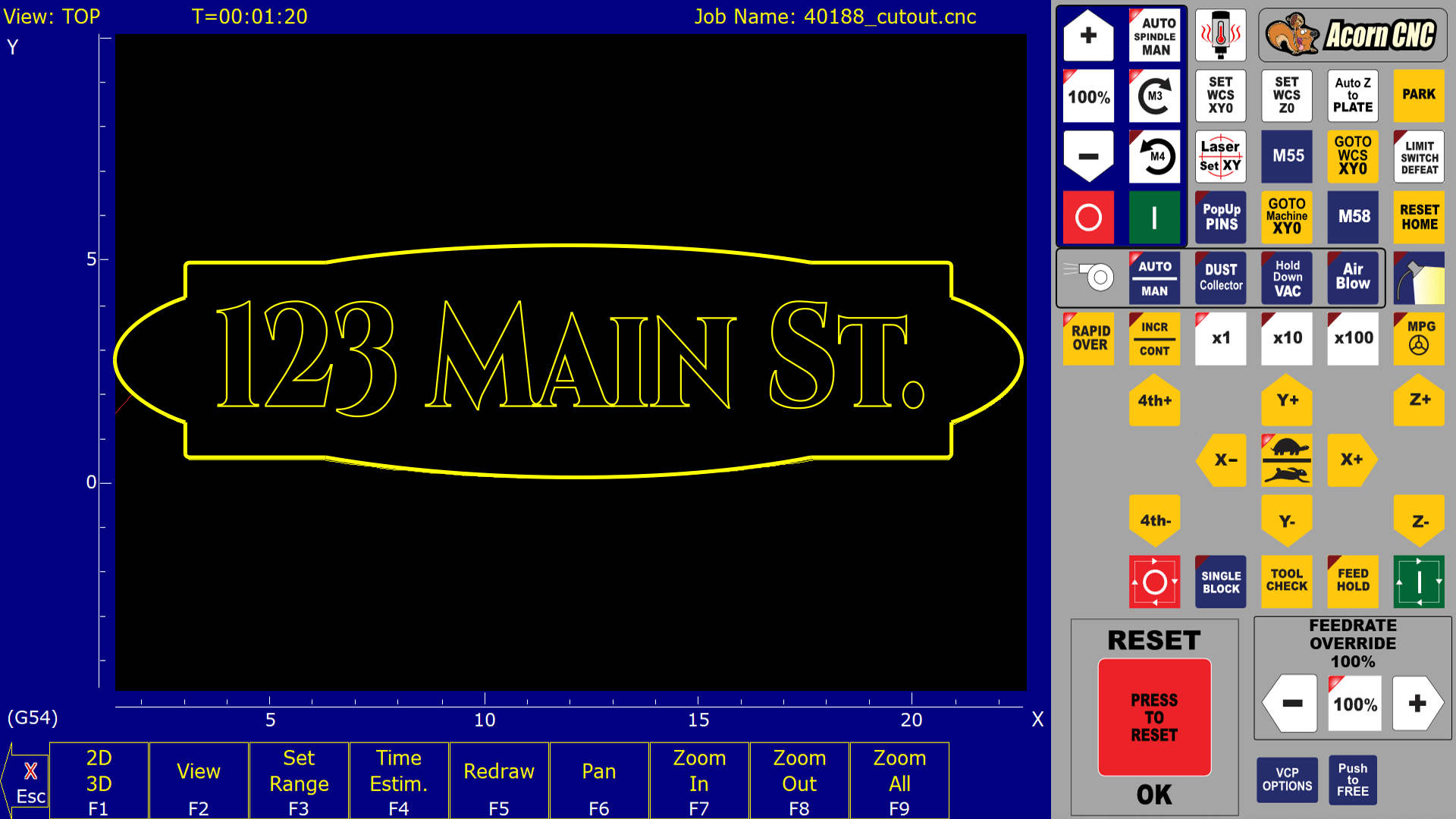

CNC12 is displaying a plot of a house number sign
SKU: 15257 Category: Tag:

$229.00$1,399.00

Estimated Processing Date

Ordered
Processed



If you are buying a License for an existing control, please upload the Report.zip from that control before pressing 'Add to Cart' or you can Email your Report.zip file to diysales@centroidcnc.com, please note your order number in the email. Alternatively, if you have the Barcode or Serial Number from an existing control, you can enter it in the box below then click 'Add to Cart'. If you are purchasing a new CNC Controller and a License file, you do not have to upload a Report.zip file or enter a Barcode or Serial Number as we will automatically assign the license file to the CNC Controller you are purchasing.



Please see the detailed table below describing the differences between Pro and Ultimate software levels

Centroid Acorn Laser CNC Software Levels

Features Acorn Free v5.0+ Acorn Pro v5.0+ Acorn Ultimate v5.0+
Mill and Lathe Intercon Conversational programming Limited to 20 blocks of conversational Unlimited Unlimited
Wireless MPG Pendant WMPG-4 or WMPG-6 support Not included Included Included
G-code program size Limited to 50Kb G-code file size Unlimited G-code file size Unlimited G-code file size
Work Coordinates Systems (WCS) One (G54) Eighteen (G54-G59 plus extended WCS) starting with v5.08 Eighteen (G54-G59 plus extended WCS)
Menu driven Probing cycles Center of bore Complete Set of menu driven probing cycles. Bore, Boss, Slot, Web, Inside Corner, Outside corner, Single edge find, find angle, auto probe for CSR Complete Set of menu driven probing cycles. Bore, Boss, Slot, Web, Inside Corner, Outside corner, Single edge find, find angle, auto probe for CSR
Menu driven Digitizing cycles Grid, Radial, Contour, Wall following, limited to 2500 points Grid, Radial, Contour, Wall following, limited to 2500 points Unlimited point Grid, Radial, Contour, Wall following
Auto Tool Height Measurement Unlimited auto measure on: Reference Tool & Tools 1,2,3 Unlimited auto measure on all tools. Unlimited auto measure on all tools.
Coordinate System Rotation Manual Manual Automatic and Manual
Tool Library 10 Tools 200 Tools, (99 Tools Lathe) 200 Tools Mill, (99 Tools Lathe)
Sub Programs and Macros (M98 & G65) Write your own custom macros, many uses Included Included Included
Cutter Compensation G41/G42 Included Included Included
Backlash Compensation Included Included Included
Screw compensation (laser or manual!) Included Included Included
3 axis simultaneous Included Included Included
4 th Axis linear or rotary conversational programming. limited to 20 blocks of Intercon Unlimited Unlimited
Operate as a 2 axis CNC with Manual Quill Included Included Included
Operate as a 2 or 1 axis CNC control Included Included Included
Any axis can be Linear or Rotary Included Included Included
Supported Axes Labels X,Y,Z,U,V,W,A,B,C Mill/Router/Plasma X,Y,Z,C,A,B Lathe X,Y,Z,U,V,W,A,B,C Mill/Router/Plasma X,Y,Z,C,A,B Lathe X,Y,Z,U,V,W,A,B,C Mill/Router/Plasma X,Y,Z,C,A,B Lathe
Spindle Encoder feedback,w/ RPM display Included Included Included
Mill Rigid Tapping Not Included Included Included
Lathe Threading Not included Included Included
Lathe Automatic CSS Not Included Included Included
Lathe Rigid Tapping Not included Included Included
Lathe Automatic Tool Measurement Unlimited auto measure on: Tools 1,2,3 Unlimited auto measure on all tools. Unlimited auto measure on all tools.
G81 drilling cycles Included Included Included
Compression Tapping Gcode Cycles Included Included Included
Mill G-code scaling and mirroring Included Included Included
True G-code backplot graphics Included Included Included
Run Time Program Graphics Included Included Included
Smart Search (stop and restart at any point) Included Included Included
User Configurable Touch Screen Virtual Control Panel Included Included Included
Backlash compensation Included Included Included
CNC Configuration Wizard Included Included Included
Menu driven Part and Tool setup menus Included Included Included
Intercon Teach Mode Limited to 20 blocks of Intercon Unlimited Unlimited
Intercon Drilling cycles: Drilling, Deep Hole, Chip Breaking Limited to 20 blocks of Intercon Unlimited Unlimited
Intercon Pocketing: Circular,Rectangular, Irregular Limited to 20 blocks of Intercon Unlimited Unlimited
Intercon Contouring Limited to 20 blocks of Intercon Unlimited Unlimited
Intercon Threadmilling Limited to 20 blocks of Intercon Unlimited Unlimited
Intercon Conversational Compression Tapping Limited to 20 blocks of Intercon Unlimited Unlimited
Intercon Auto Connect Radius Limited to 20 blocks of Intercon Unlimited Unlimited
Intercon Lathe Cycles. Auto profile cleanout, grooving, cutoff, chamfer, turning, end face turning, Limited to 20 blocks of Intercon Unlimited Unlimited
Intercon Math/Geometry Help Limited to 20 blocks of Intercon Unlimited Unlimited
Intercon DXF Import for Mill and Router. Yes, Limited to 20 blocks of Intercon Yes, Mill, Router, Plasma only Yes, Mill, Router, Plasma only.
Operate in Millimeter or Inches Yes Yes Yes
XY Diagonal Jogging Yes Yes Yes
4th axis Jogging Yes Yes Yes
Software Axis Pairing (pair 4th axis any other axis in software) No Yes Yes
Auto Squaring of Software Paired axis with auto homing No Yes Yes
Hardware Axis Pairing Yes Yes Yes
4th axis G-code moves: 4&1,4&2,4&3,4&1&2,4&2&3,4&1&3&4, 4&1&2&3 No, "Free" is limited to 3 axis simultaneous moves with single axis 4th axis moves. (aka (3+1) Yes, 4 axis simultaneous movement with full interpolation. (move any axis in combination with any others) Yes, 4 axis simultaneous movement with full interpolation. (move any axis in combination with any others)
BCD Tool Changer output No Included Included
ATC Programs for Rack Mount Yes Yes Yes
ATC Programs for Lathe Turret Yes Yes Yes
CNC Setup Wizard with auto PLC program generation Included Included Included
PLC Detective Software Included Included Included
Use one input for all axis Homing Included Included Included
Contour ShuttleXpress Support Included Included Included
Xkeys, Xbox and other USB keyboard emulator support Included Included Included
Laser Engraving Yes Yes Yes
PWM output for Laser power Yes Yes Yes
PWM output for Spindle speed control Yes Yes Yes
Laser power Velocity modulation Yes Yes Yes
0-5 VDC or 0-10 VDC analog output Yes Yes Yes
Support for "Probe App" by swissi No Yes Yes

Laser Examples

Laser Cutting with a DIY CNC Mill

When clicked, this video is loaded from YouTube servers. See our Privacy Policy for details.

Knifebox Laser Cutting with Acorn DIY CNC

When clicked, this video is loaded from YouTube servers. See our Privacy Policy for details.

DIY Centroid Acorn CNC Laser Engraving with a Techno Router

When clicked, this video is loaded from YouTube servers. See our Privacy Policy for details.

Acorn CNC control kit unboxing video

When clicked, this video is loaded from YouTube servers. See our Privacy Policy for details.

CNCPC Options

All-In-One PC

$1,350.00

Estimated Shipping Date

Ordered
Shipped
  • All-in-one Touch Screen CNCPC (#15021,15022) Features:
    • - Pre-loaded with Windows 10/11
    • - Pre-configured for CNC PC duty
    • - Pre-loaded with Centroid CNC software
      • CNC12 'Free' Level of Selected Preinstalled Software Version
      • G code Editor
      • Intercon
      • Stock PLC programs
      • Touch Screen Operator Control panel
      • Acorn Install Wizard
    • - Touch Screen
    • - Wifi, Ethernet, webcam with mic, card reader, USB ports
    • - Powercord, Keyboard, Mouse
    • - Centroid tested and pre-qualified to work with Centroid CNC controllers
  • NOTES:
    • Model, Specifications and COLOR may vary.
    • There are NO VESA mounting holes on this unit.

The Centroid ALLIN1PC comes pre-configured for CNC Duty. It's ready to use and communicate with our Controls. The PCs run Windows 10/11 and are equipped with a Touchscreen. Product may vary from image.


Compatible with:

Planning to build or use your own PC as a CNCPC?

Be sure the PC meets the Centroid CNCPC minimum requirements found here.
The latest Centroid CNC software requires a Windows 10/11 PC that meets the requirements.
Laptops are not recommended. Tablets are not compatible.
The minimum CPU performance benchmark is critical for good Plasma Performance. Mobile processors are not compatible.
- If you plan to build your own CNCPC follow the recommendations here.
- If you plan to buy your own PC we recommend the Intel NUC (be sure to purchase a NUC that meets the Centroid minimum pc requirements) and a 1920x1080 16:9 aspect Touch Screen monitor
- Centroid also offers for purchase CNCPC's with preloaded and pre configured software see below.



$799.00

Estimated Shipping Date

Ordered
Shipped
  • Centroid Mini CNCPC kit (#15024, #15028) includes:
    • 1x Intel based Mini PC
    • 1x Centroid Aluminum CNCPC Multi-mount Plate
    • 2x M3x6 screws to mount the Mini PC to the included plate
    • 1x 100-240 VAC power brick
    • 1x Pre-installed and pre-configured SSD
      • w/ Windows 11
      • w/ CNC12
  • Centroid Mini CNCPC (#15023) Features:
    • - Use a LCD monitor (regular or Touch screen), 1920x1080 recommended
    • - Preloaded with a licensed copy of Windows 11. Windows is pre-configured for CNC PC duty!
    • - Preloaded Centroid CNC12 software Mill, Router, Lathe, and Plasma 'Free' version
    • - Preconfigured with Centroid Software
    • - Preconfigured Notepad ++ G code Editor
    • - Mill, Lathe, Plasma Intercon Conversational compatible
    • - Centroid CNC setup Wizard
    • - Touch Screen Operator Control compatible
    • - Intel processor and SSD (solid state drive)
    • - Display port, HDMI, Ethernet Ports, USB
    • - Powercord, Keyboard, Mouse
    • - Centroid tested and pre-qualified to work with Centroid CNC controllers
  • NOTES:
    • Model, Specifications and COLOR may vary.



Compatible with:

Laser Accessories

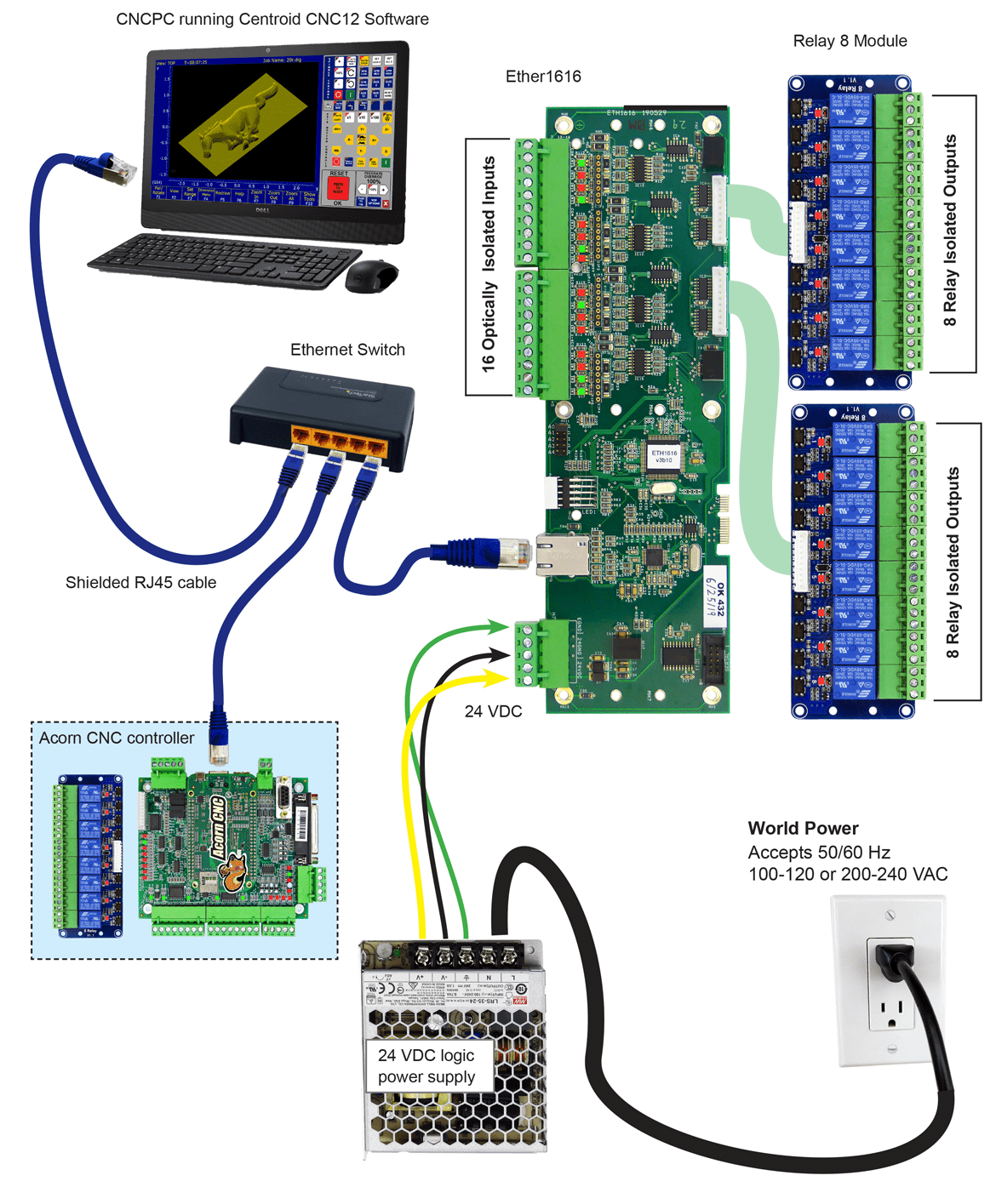

Ether1616 Example Layout
SKU: 14850 Category: Tags: ,

$329.00

Estimated Shipping Date

Ordered
Shipped
  • Ether1616 I/O Expansion Kit (#14850) includes:
    • 1x Ether1616 Board
    • 2x Relay 8 Modules
    • 2x Keyed Ribbon Cables
    • 1x 24 volt DC power supply
      • 50/60 Hz 100-120 VAC/208-240 VAC input power
    • 1x Ethernet Switch
    • 2x 15’ Shielded Ethernet cable
    • 4x 220 Ohm SIP resistors for 5 volt input
    • 4x 1k Ohm SIP resistors for 12 volt input

The Ether1616 is an input and output expansion board designed to be used with the Acorn CNC controller. Each Ether1616 board adds an additional 16 optically isolated inputs and 16 relay isolated outputs to the Acorn CNC system, up to three Ether1616 boards can be added to an Acorn system for a total of 56 inputs and 56 outputs. Three different input voltages can be used: 5 volts, 12 volts and 24 volt. Input voltages are mix and match capable and are selectable via bank of four of inputs at a time with the provided plug-in SIP (Single In-line Pack) resistors. The default input voltage is 24 VDC.

Both the Ether1616 and Relay 8 modules provide both Din Rail mounting holes and Standoff mounting holes to allow the DIY installer a wide variety of mounting possibilities!

The provided dedicated power supply is sized properly to provide enough power to drive the 16 relays. There are indicator LED’s on Ether1616 Inputs and on the Relay 8 Modules that indicate the state of the Inputs and Outputs.

The Ether1616 as the name implies communicates with the Centroid CNC12 software via Ethernet connection to the CNC PC. Ether1616 documentation is here.

Requirements for use with Acorn
- CNC12 V.4.20+


Compatible with:

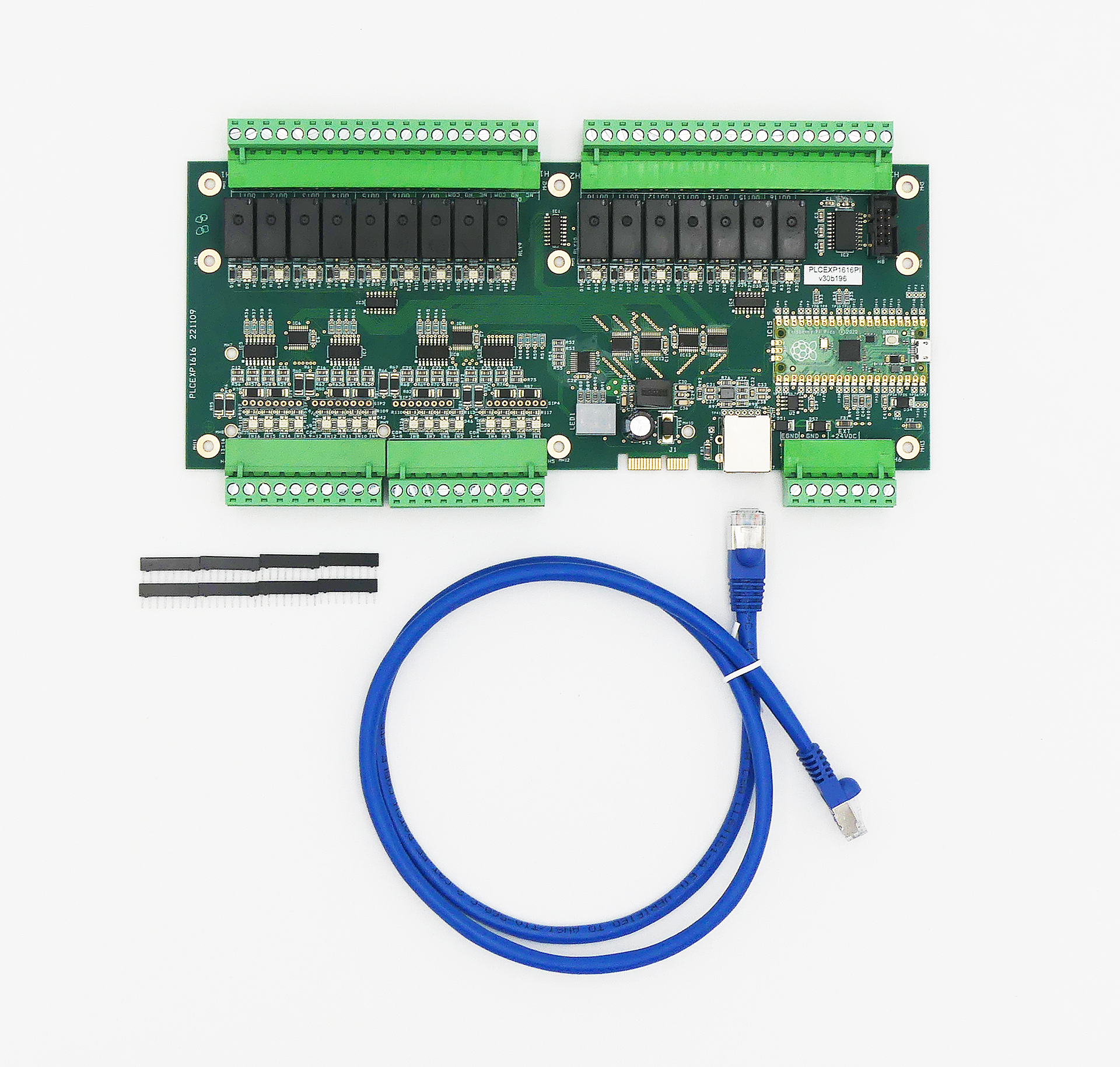

SCOUT PLCEXP1616 I/O Expansion Kit for AcornSix DIY CNC
SKU: 14575 Category: Tag:

$399.00

Estimated Shipping Date

Ordered
Shipped

PLCEXP1616 Kit (part #14575) includes:
1x PLCEXP1616 Board
1x 6 foot shielded Ethernet cable
4x 220 Ohm SIP resistors for 5 volt input
4x 1k Ohm SIP resistors for 12 volt input

The PLCEXP1616 is an input and output expansion board designed to be used with the AcornSix CNC controller using the ethernet cable SCOUT communications protocol. Each PLCEXP1616 board adds an additional 16 optically isolated inputs and 16 relay isolated outputs to the AcornSIX CNC system, up to five PLCEXP1616 boards can be added to an AcornSix system for a total of 96 inputs and 96 outputs. Three different input device voltages can be used: 5 volts, 12 volts and 24 volt. AcornSix and PLCEXP1616 input device voltages are mix and match capable and are selectable via bank of four of inputs at a time with the provided plug-in SIP (Single In-line Pack) resistors. The default input voltage is 24 VDC (no SIP installed).

The PLCEXP1616 has Din Rail mounting holes and Standoff mounting holes to allow the DIY installer a wide variety of mounting possibilities. Requires 24 VDC logic power of at least 1 Amp rating.PLCEXP1616 Spec Manual.



Compatible with:

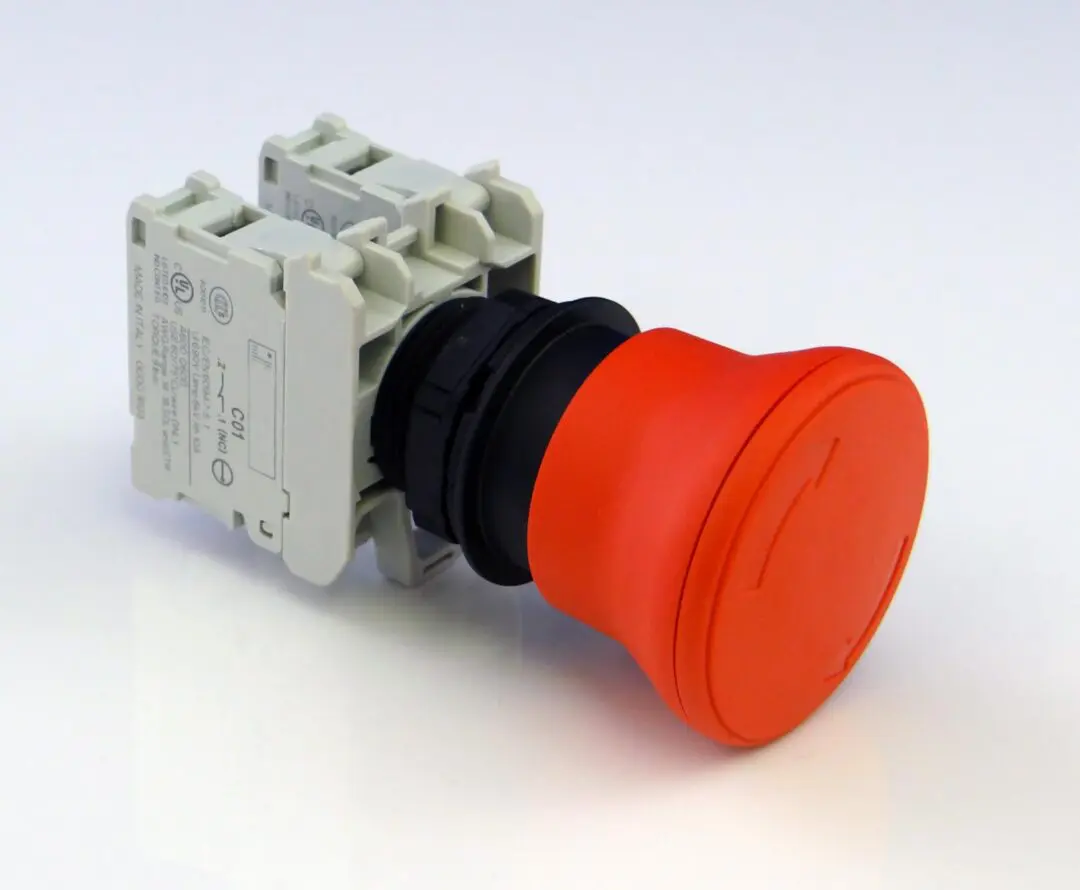

EStop Button

$45.00

Estimated Shipping Date

Ordered
Shipped
  • Emergency Stop Button (#14534) includes:
    • 1x E-Stop Button

- Industrial quality reliable Emergency Stop Button with two switches.
- Two contact closures for two estop circuits
- Use just one contact closure or use both
- For use with the Acorn, Allin1dc and Oak CNC control boards.
- Thru Hole Panel Mount

Replacement Parts

8 Output Relay Board

$27.00

Estimated Shipping Date

Ordered
Shipped

If you are purchasing a new Acorn kit, you do not need to purchase this item.

The Acorn Relay Board Kit (#14734) Includes:
   1x Acorn “8 Relay Module”
   1x Ribbon Cable

Tech Support

Professional 1-on-1 Tech Support Available

$120.00$360.00

Estimated Processing Date

Ordered
Processed



Please upload the most recent Report.zip from the control you need support for then click 'Add to Cart'. A report file contains much needed information about how your specific cnc system is setup and allows our tech support crew to better help you. You can also supply the Barcode or Serial Number from the control then click 'Add to Cart'.



Professional experienced Centroid CNC control engineers will work with you to configure your CNC machine tool.
Centroid Factory Direct Technical Support is provided through Phone, E-mail, and the preferred and most effective method is remote support via TeamViewer.

After Purchasing Technical Support Fill out this Support Request form.

Then, Please call to schedule a one-on-one CNC Tech Support appointment. +1-814-353-9256 press 4. Mon-Fri 9-5 EST

Have your TeamViewer ID and password ready. See this forum post for how to setup Teamviewer.

The CNC Engineer will ask you for detailed Photos of the machine tool and of the control cabinet as photos are worth a thousand words. The best way to provide photos is to post them to a online photo album and send the link to the album to support@centroidcnc.com (Google photos is free and the preferred method.)

Tech Support Time is non-refundable, we will keep track of tech support time used and any unused time will remain in our system for future Tech Support Calls

Centroid Acorn CNC controller reviews

Looking to order boards and other parts from you this week. I've got to admit - SO NICE having a board and software made by the same company. No plug ins from other places and the headaches. Literally followed the video and the motors were turning by the time it was done.
- Revy
After dealing with Mach 3 and LinuxCNC for years, I must say Centroid is Light years ahead. Up and running bench test in a matter of minutes instead of days as with those other products. There is much to learn about Centroid but I am confident it is a very solid product. I can't find the words to properly describe the difference.
 - Makeron
My son came to me and said that the students in his high school woodworking class could not finish their projects due to their CNC router is broken. Well I couldn't let this be and in less than an hour, I installed a acorn on their router and all the students were able to finish their projects. I donated the board to the school so they could continue to use the router and many students will be able to familiarize themselves and use the Centroid control. Thank you Centroid for making such an awesome easy to use and install product. Keep up the good work!
- Extreme industrial
I have to say a big THANK YOU to Centroid for providing the best value in DIY CNC on the market today. I just completed the upgrade of my CNC router table to Acorn and couldn't be happier! Followed the schematics for the GeckoDrive 203V (only thing I kept from my old controller) and everything just worked without any issues. Watched a lot of video's that provided almost everything I needed to get my machine working. I saved so much money over upgrading to Mach4, Smooth Stepper and PMDX boards that I had planned for my initial upgrade that I bought a touch screen monitor, wireless pendant and upgraded to Mill Pro. The pendant is just amazing to use. I feel like I have a professions system now! Not sure how you can sell the entire acorn kit for the price you do, but thank you for providing this to the DIY community.
- cnc_jim
Yesterday, I received a model 4 Acorn and an extra relay board for my model 3 Acorn that I bought almost a year ago. Opening that package reminded me of the care and concern that Centroid has for its customers. The power supply was pre-wired for the Acorn. The instruction sheet is comprehensive. The backside of the instruction sheet that shows a connection schematic that should make initial connections fool-proof. I just noticed that even those schematics are printed in color. (My eyes have serious problems.) The new schematics that Keith notified us of have fixed all of the connection problems that I've experienced with ClearPath servos, Gecko G203 drives, and Leadshine (clone) drives. Those problems were not Centroid's fault. (The older schematics followed wiring diagrams from other manufacturers that were somewhat lacking. I've read Teknic's manual carefully about the fault signal. The older schematics followed the Teknic manual. Keith and Gary solved that problem months ago, but because I had a work-around, I didn't carefully read the revised schematic that Centroid published months ago.) I was able to work around those problems; but the new schematics make those work-arounds obsolete. It amazes me that Centroid is willing to spend money on so many do-it-yourself motors, drivers, spindles, VFDs and other non-Centroid products, test those products, draw up schematics to use those products and still sell the Acorn for $329 with the amazing Centroid software.

Next, the forum along with YouTube videos are great. Keith, Marty, Gary and Franco not only show how to use the Acorn, but teach general principles about CNC machining. Late last night when I couldn't sleep, I watched a video where Keith showed how to use a vertical mill. The video contained everything that anyone would need to see how to use Centroid products to make their equipment work. Clicking on "Acorn User Videos" from the Acorn page shows a list of videos that show how to use the Acorn. Going on YouTube and searching "Marty CNC" brings up Marty's channel with a comprehensive list of how-to videos. Searching "Gary Campbell CNC" brings up Gary's channel and his expertly produced videos. (Gary and I go back decades to my Shopbot days when I constantly used his advice to solve my problems.) Clicking on "Centroid CNCKeith" brings up Keith's videos. His knowledge and easy-going style should make anyone comfortable in trying an Acorn. One of his videos was with "MecTechMike". Mike's mill and lathe conversions should impress everyone. He surely impressed me and gave me ideas that will take at least a year to try. There are many, many others who have taken the time to post videos showing how they use the Acorn and other Centroid products.

The forum is invaluable. Questions are answered expertly (in most cases). Since I tend to be disruptive in some of my posts (unintentionally - I like to think outside the box and try things that might seem to be controversial), I expected harsh feedback or even censoring, but I've been treated with respect and courtesy. More, importantly, by reading what others are doing, I get ideas that would take a life-time to implement.

Thanks Centroid and thanks to all of you in the Acorn community for your help.
- M Richards
All prices and specifications are subject to change without notice
Shopping cart0
There are no products in the cart!
Continue shopping
Code Snippet ma-gdpr-youtube 1.5.0
