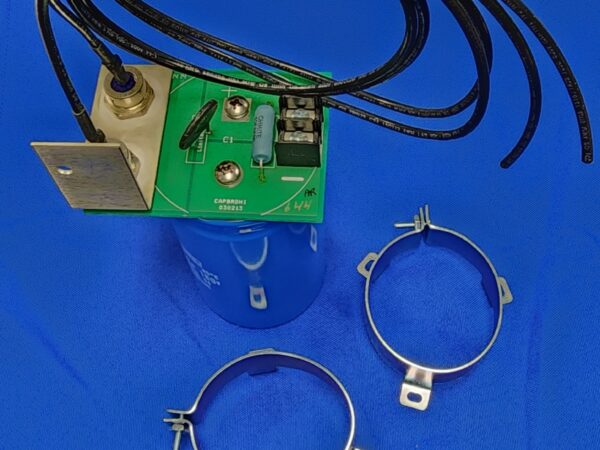

Centroid's "Cap and Bridge Combo" DC Servo Motor Power Generator for 3 Phase AC power input

This unit converts 3 phase AC power to DC power for use with the Allin1DC main servo bus power input.
Typical AC input power is anywhere from 70 to 110 volts from the 3 phase step down transformer. AC power input voltage depends on the DC max voltage rating of the servo motor. AC volts IN x 1.41 = DC volts out
See typical hook up schematic here.


- Easily powers up to six 29 in-lb DC servo motors
- High quality large capacity for smooth DC voltage output
- Preassembled, ready to use
- Commonly used for both new CNC control installations and retrofit upgrades
- Works with both 50 hz and 60 hz cycle AC power
- Includes Snubbers on the AC power input side.

Maximum practical AC input voltage = 128 volts AC

Minimum practical AC input voltage = 50

Maximum DC Voltage output = 180 DC volts

Power Conversion Examples:
- AC volts IN x 1.41 = DC volts out
- 110 VAC input yields 155 VDC out
- 83 VAC input yields 117 VDC out
