KP-1 CNC Touch Probe

SKU: 15460 Category: Tags: ,

$349.00$384.00

Estimated Shipping Date

Ordered
Shipped
  • KP-1 CNC Touch Probe (#15460) includes:
    • 1x KP-1 Probe
    • 1x 5 mm x 30mm Styli (#2904)
    • 1x Stylus Tightening Pin
    • 1x KP-1 Cable (choose cable type before adding to cart)
    • 1x KP-1 to Centroid Controller Hookup Schematics

Part, Vise and Fixture Probing: Automatically Set Zero points fast and accurate.
3 axis CNC Touch Probe triggers in all directions. Use the KP-1 probe to quickly and accurately find zero points on a vise, fixture or part. Eliminate operator error when setting zero points, finding edges, or center locations of bosses or bores, slots and webs. Eliminates the need for a center finder or an edge finder. You'll never have to spend 30 minutes using a center finder to locate the center of a bore again. The probe will find and set the center of a bore in just seconds. In addition, the probe can be used to verify part dimensions and locations, 3D digitizing and many other applications. The KP-1 mounts in any 1/2" tool holder and has concentric adjustment screws. Also compatible with Mach3/4, WinCNC, LinuxCNC, Pathpilot and others.

KP-1 Specifications
   -Probing directions X+/-, Y+/-, Z-
   -Unidirectional repeatability (2 sigma) 0.0001” (2.54 micron)
   -Practical use results on a good milling machine .0005”
   -Probe deflection force (X,Y) 3 ounce minimum with 40mm stylus
   -Probe deflection force (Z) 15 ounce minimum
   -Probe body diameter and length D= 1.625” (41.275mm) L= 1.68” (42.672mm)
   -Mounting shank diameter and length D= 0.5” (12.7mm) L= 1.47” (37.3mm)
   -Stylus mount thread M3 thread
   -LED status indicator: Red when triggered, Green when not triggered or when powered.
   -Weight of probe and ½”shank 0.40 lb
   -Over travel limit angle (X,Y) +/- 12 degrees from vertical
   -Over travel limit (Z-) 0.25” (6.25mm)
   -Patented concentric alignment (spindle/tool holder/probe body run out adjustment)
   -The KP-1 Probe closes the input on the CNC controller when triggered.
   -The KP-1 Probe is equipped with a detection wire so the CNC control knows that the probe is plugged in
   -Works with Centroid's Probe Protection mode which prevents probe crashes while user is jogging


KP-1 review by Uwe Mattern.

Allin1DC and Oak users can purchase an Oak/Allin1DC to Cabinet Bulkhead connector Cable (#11211) here

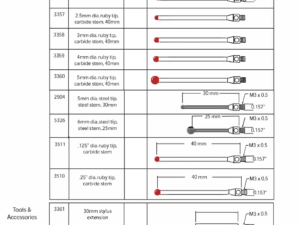

Replacement or additional probe styli can be purchased here.
