Centroid Allin1DC CNC controller kit (part # 14999) includes:

- Allin1DC CNC control board; a True Closed Loop CNC controller
- Logic power supply with power leads
- DIY Cable connector kit
- 15’ Shielded Ethernet cable

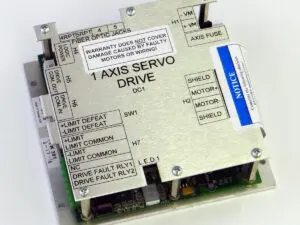

- 3-Axis Digital Servo Drive, drives up to 40in-lb/4.52Nm DC servos up to 180VDC
- Typical CNC machine tool pre-programmed PLC Inputs and Outputs
- Mill and Lathe Conversational Programming Software
- Installation and Operator’s manuals PDF
- Full Size Paper Wiring Schematic
- DIY self service CNC support through Centroid Community CNC Forum which is Centroid Technician monitored and maintained.
- Optional Centroid Factory Engineer remote or phone technical support
- Centroid CNC12 "FREE" version of CNC software. (Purchase Pro or Ultimate for additional feature set, see below.)

Centroid "Allin1DC" DC servo motor based closed loop CNC Controller
A reliable, high performance, industrial quality CNC control available for do-it-yourself CNC control builders. The Allin1DC utilizes an integrated Motion Control CPU and communicates with CNCPC via a fast and reliable Ethernet connection. The Allin1DC control board includes a powerful 15 amp per axis 3 axis digital DC servo motor drive along with a pre configured PLC with built in I/O. Perfect for many types of machine tools such as: CNC milling machines, a wide variety of CNC routers and CNC lathes and other specialty applications. Typically used on CNC machine tool upgrades for older DC servo motor based CNC controls such as Bridgeport, Anilam, Dynapath, Mititoyo, and many more, The Allin1DC allows reuse of the existing DC servo motors saving time and money. The Allin1DC runs on Centroid proven industrial quality Mill or Lathe CNC control software.


Depending on our current order volume, it may take us 5 days of processing before we are able to ship your order.


  • Built in Motion Control CPU
  • Mill and Lathe CNC software
  • 3 axis servo drive built into the Allin1DC
  • Reliable Ethernet communication with CNCPC
  • Runs on Windows 10
  • Compatible with CAD/CAM systems
  • Runs Standard G & M Codes (see list in operator manuals)
  • 4 Mb G code program size (unlimited optional)

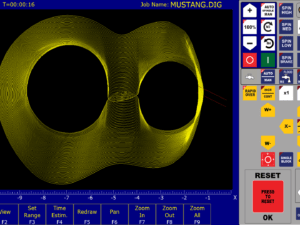

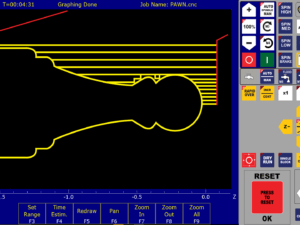

  • True G-code back plot graphics w cutter comp moves
  • 2000 line accell decell look ahead
  • 1200 blocks per second
  • Feed rate override operator variable 0-200% at 1% increments
  • Plug and Play dedicated MPG port
  • Rapid rate override
  • Spindle Control. on/off cw/cw, speed w/override
  • 12 bit analog output 0-10 VDC for VFD control
  • 16 optically isolated inputs, user configurable
  • 9 fused relay outputs, user configurable
  • Centroid Operator control pendant compatible
  • Six Encoder Inputs
  • Single 24 vdc logic power input
  • Spindle Encoder RPM display
  • Simple Menu Driven Operator Interface
  • Stop and Restart Job at any point
  • Tool Check, Jog and Restart at any point
  • Cutter Compensation
  • Conductive touch probe compatible
  • Kinematic touch probe compatible
  • Dedicated Touch Probe port
  • 6 WCS G54 - G59 (12 more optional)
  • Lube Pump control (user configurable to match pump type)
  • MDI mode with recent command memory
  • Programmable Auxiliary Function keys
  • Multiple Language Support
  • Stock PLC programs
  • User editable PLC programming
  • Part counter, Time, Time estimation
  • Simple Future Software updates available
  • G code editor
  • Utility Menu
  • Backup and Restore CNC config
  • Message Display and Logs
  • True Closed Loop CNC operation
  • Unlimited Program Storage (only limited by hard drive size)
  • Large easy to read DRO display
  • Menu Driven Part setup
  • Menu Driven Tool setup
  • Menu driven machine configuration setup
  • Fill in the blank Setup Menus
  • Run Menu
  • CNC control configuration menu
  • Restart Job Automatically
  • Any axis can be linear or rotary axis
  • G-code smoothing (user adjustable)
  • Auto Home to switch, user selectable direction per axis
  • Jog to Home or Home to Marks
  • Software Travel Limits (+ and - directions)
  • User configurable Slow, Fast, Max rates
  • User configurable axis motor acceleration
  • Coordinate System Rotation
  • Backlash compensation
  • G-code backplot checks work envelope
  • G-code backplot shows true cutter comp moves
  • Vary part backplot speed and pause
    w/ G-code line display
  • Real Time Part Graphics, shows tool position while running
  • Optional Stops
  • Subprograms and Macros
  • Engraving compatible (short vector g code no problem)
  • Threadmilling (Mill)
  • Run in Inch or MM mode
  • Tool Library
  • Long part names
  • Drilling and Tapping Cycles
  • USB and Network Drive Compatible
  • Keyboard Operator Control panel emulator,
  • Xkeys USB control pad compatible
  • Tool Life Management
  • Ballscrew mapping table
  • Control relays and contactors thru Manual or Program control
  • User configurable custom DIY M-codes
  • Canned Cycles
  • Constant surface speed (lathe)
  • Threading (lathe)
  • Profiling with auto cleanout (lathe)
  • Lathe canned cycles (thread, groove, chamfer, cutoff,turning diameter and end face)
  • Scale input for DRO positional display of a manual axis
  • X/Y axis Deskew
