$1,350.00
- All-in-one Touch Screen CNCPC (#15021,15022) Features:
- - Pre-loaded with Windows 10/11
- - Pre-configured for CNC PC duty
- - Pre-loaded with Centroid CNC software
- CNC12 'Free' Level of Selected Preinstalled Software Version
- G code Editor
- Intercon
- Stock PLC programs
- Touch Screen Operator Control panel
- Acorn Install Wizard
- - Touch Screen
- - Wifi, Ethernet, webcam with mic, card reader, USB ports
- - Powercord, Keyboard, Mouse
- - Centroid tested and pre-qualified to work with Centroid CNC controllers
- NOTES:
- Model, Specifications and COLOR may vary.
- There are NO VESA mounting holes on this unit.
The Centroid ALLIN1PC comes pre-configured for CNC Duty. It's ready to use and communicate with our Controls. The PCs run Windows 10/11 and are equipped with a Touchscreen. Product may vary from image.
$799.00
- Centroid Mini CNCPC kit (#15024, #15028) includes:
- 1x Intel based Mini PC
- 1x Centroid Aluminum CNCPC Multi-mount Plate
- 2x M3x6 screws to mount the Mini PC to the included plate
- 1x 100-240 VAC power brick
- 1x Pre-installed and pre-configured SSD
- w/ Windows 11
- w/ CNC12
- Centroid Mini CNCPC (#15023) Features:
- - Use a LCD monitor (regular or Touch screen), 1920x1080 recommended
- - Preloaded with a licensed copy of Windows 11. Windows is pre-configured for CNC PC duty!
- - Preloaded Centroid CNC12 software Mill, Router, Lathe, and Plasma 'Free' version
- - Preconfigured with Centroid Software
- - Preconfigured Notepad ++ G code Editor
- - Mill, Lathe, Plasma Intercon Conversational compatible
- - Centroid CNC setup Wizard
- - Touch Screen Operator Control compatible
- - Intel processor and SSD (solid state drive)
- - HDMI, Ethernet Ports, USB
- - Includes Powercord, Keyboard and Mouse not included
- - Centroid tested and pre-qualified to work with Centroid CNC controllers
- - Use a LCD monitor (regular or Touch screen), 1920x1080 recommended
- NOTES:
- Model, Specifications and COLOR may vary.
Compatible with:
$299.00

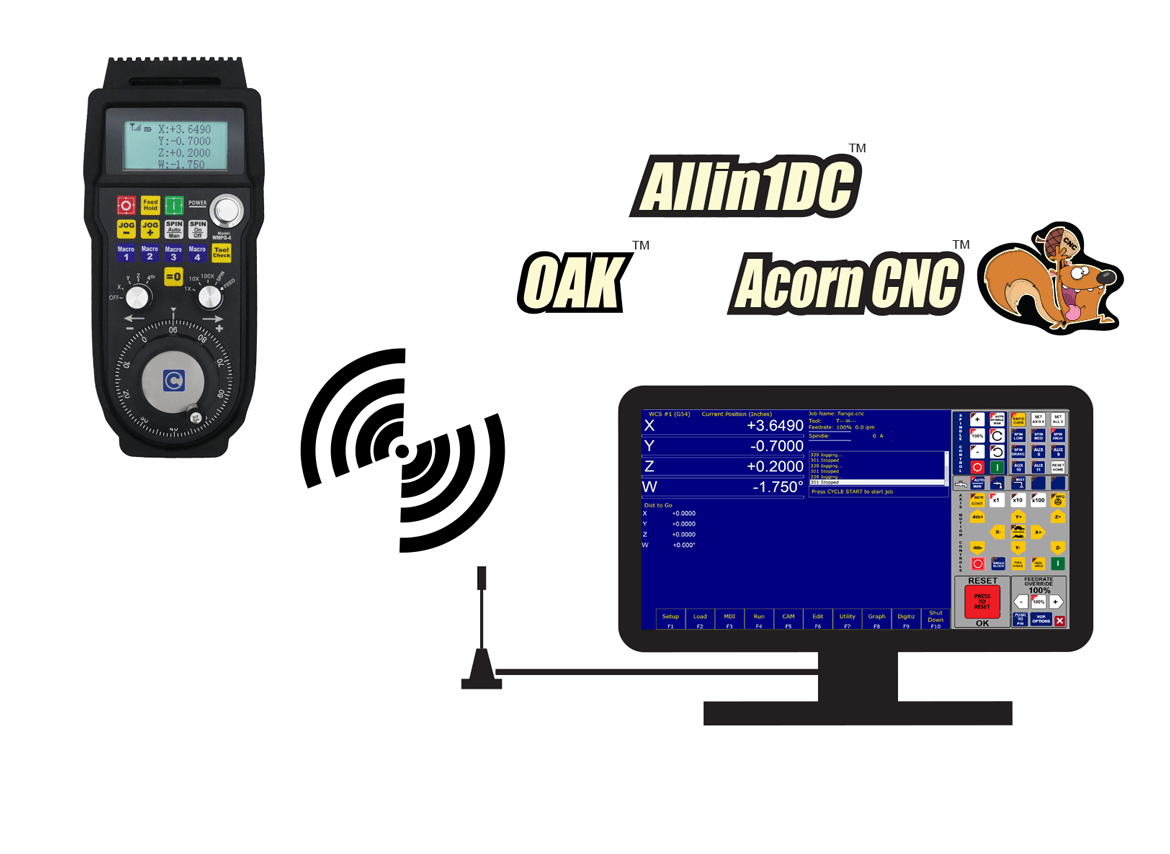

- WMPG-6 Kit (#9606) includes:
- 1x WMPG-6 Wireless MPG pendant
- 1x USB Wireless Transmitter / Receiver
- 1x Mounting Bracket
Take the control to where the work is! A game changing tool, the Centroid Wireless MPG handwheel CNC Control pendant allows the operator to set up jobs and tools conveniently and precisely remotely. No software or drivers to install. Plug and Play with Centroid CNC12 Pro CNC software, just plug in the included USB transmitter/receiver and start using it! Perfect for all types of Mills, Lathes, Routers and other specialty CNC machines. Control up to Six Axes from the palm of your hand! Multiple units can be used in the same location without issue.
Requirements for use with Acorn
- Acorn CNC12 v4.64+ w/ Mill Pro, Mill Ultimate, Lathe Pro, Lathe Ultimate, Router Pro, Router Ultimate, Plasma Pro, or Plasma Ultimate License
Oak, Allin1DC, Hickory, and MPU11 system Requirements
- CNC12 v4.20+ with Pro or Ultimate License
- Older systems may require a PLC update to fully support WMPG-6 features and functionality
$299.00
We have sold our stock of WMPG-4 Pendants, they have been replaced with the WMPG-6 which offers control for two additional Axis for the same price as the WMPG-4!

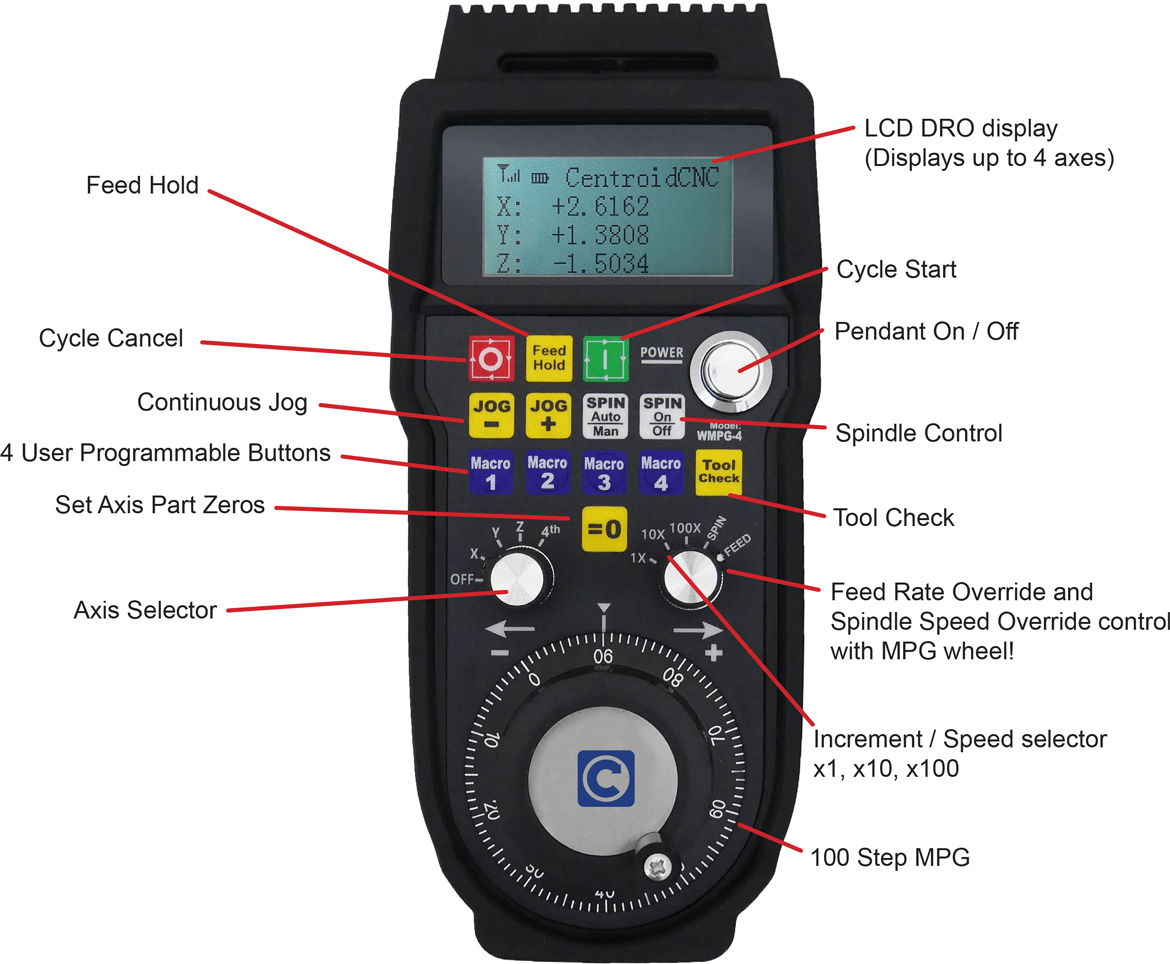

- WMPG-4 Kit (#8928) includes:
- 1x WMPG-4 Wireless MPG pendant
- 1x USB Wireless Transmitter / Receiver
- 1x Mounting Bracket
- WMPG-4 Kit (#8928) includes:
- 1x WMPG-4 Wireless MPG pendant
- 1x USB Wireless Transmitter / Receiver
- 1x Mounting Bracket
Take the control to where the work is! A game changing tool, the Centroid Wireless MPG handwheel CNC Control pendant allows the operator to conveniently and precisely set up jobs and tools remotely. No software or drivers to install. Plug and Play with Centroid CNC12 Pro CNC software, just plug in the included USB transmitter/receiver and start using it! Perfect for all types of Mills, Lathes, Routers and other specialty CNC machines. Controls up to 4 Axes.
Requirements for use with Acorn
- Acorn CNC12 v4.64+ w/ Mill Pro, Mill Ultimate, Lathe Pro, Lathe Ultimate, Plasma Pro, or Plasma Ultimate License
Oak, Allin1DC, Hickory, and MPU11 system Requirements
- CNC12 v4.20+ with Pro or Ultimate License
$2,499.00 – $3,604.00
Centroid Oak CNC Operator's Console with Integrated CNCPC (#13181) Features:
- 15" Touch Screen full color LCD display
- Dedicated Operator Control Panel with extra programmable buttons
- USB ports
- Thin at 2.88" Thick
- Made in USA Steel construction
- Uses Standard USB keyboards, keyboard included
- Variety of mounting possibilities
- Compatible with Allin1DC, OAK and MPU11 systems. (not compatible with Acorn)
- Optional Custom Control Panel Overlays are made to order for specialty machine tools. call or email for details.
- Preloaded Centroid CNC software (Free Version) with G code Editor, Intercon, Stock PLC programs, Touch Screen Operators Control Panel (VCP)
Note: Optional MPG Shown in photo with Console
Note: Panel Mount does not include keyboard tray so it is not compatible with Mouse Tray and Utility Tray
Standard Mount is compatible with the Optional Floor Stand, Optional Mouse Tray, and Optional Utility Tray
Other mounting options are available, such as the Adapt to Existing Arm Kits (Direct Mount and Swivel Mount) and Arm Kit
Available with built-in CNCPC or without CNCPC, call or email for options.
Available in "panel mount" configuration for mounting in existing console enclosure. (Panel Mount = made to bolt into an existing machine tool console space. Typically used on large machines with a preexisting CNC control so existing console hardware can be re purposed with new Centroid CNC operators console. )
Build your own console to machine mounting hardware or use any of Centroid various Arm and Console Floor Stand mounting options, click here for dimensional drawings
Download Centroid CNC console brochure click here..
Depending on our current order volume, it may take us 2 days of processing before we are able to ship your order.
$495.00 – $609.00
Custom sizes available via phone or email. Add $28.50 for each foot additional conduit length.
$595.00 – $989.00
Make your own Console mounting hardware or purchase ready to go CNC console mounting hardware kits!
Operator Console Floor Stand
- Adjustable Console Height and Angle Articulation
- Vesa Standard 200mmx200mm mount
- Heavy Duty Steel Construction
- Locking Floor Casters
- Optional Utility Tray and Mouse tray
- Shown with Optional Utility Tray, Optional Mouse Tray, and Wired MPG (sold separately)
$550.00
Operator Console Arm Hardware Kit
- Mounts Console to Machine Tool
- Swivel joints at both ends
- Top or Bottom console mount
- Flexible mounting options at Machine end
- Heavy Duty Steel Construction
- Smooth 90 degrees console swivel rotation
- Through Arm control cables chase
- Integral Left/Right Level Adjustment
- Optional Utility Tray and Mouse tray
- Made in USA
$305.00
This is the same hardware used on our Arm mounting kits and allows the installer to use an existing console support arm by adapting Centroid CNC console mounting hardware to that existing arm using this kit.
This hardware bolts to the existing arm and mounts to the Centroid M400/T400 CNC consoles allowing smooth swiveling action with adjustable resistance. Popular on retrofit applications or when the integrator wants to create their own console support system.
$810.00 – $910.00
Centroid Operator's Control Pendant (#11077):
Centroid CNC software allows operator machine control through a number of different methods.
This Operator's Control Pendant is for when hard buttons are preferred over touch screen controls. Useful on large and small machine tools alike when setting up parts, fixtures and tools, the pendant allows the operator to take the controls to where the work is. Steel case with magnets on the back and rubber handles, this control pendant uses the same operator control panel found in the M400/T400 CNC console.
The control panel can be removed from the pendant and flush mounted in your own console enclosure as well.
A lower cost ($0) alternative to this piece of hardware is the software based Touch Screen Virtual Machine Control Panel (VCP). The VCP allows the functionality of this Hardware based Operators Control Pendant when using a Touch Screen LCD as the CNC control display. The touch screen VCP is included with Centroid CNC control software CNC12 v4.12+ and can be used without or in conjunction with this hardware based Operator's Control Pendant.
Longer cords up to 50' are available call for quote or just use the Wireless MPG for long distance applications.
Same control panel that is on the M400/T400 CNC consoles but placed in a box with a 20' cord.
Compatible with:
$1,225.00 – $2,575.00
Centroid DC Servo Motor with Encoder and Cable (#12872, 10667, 10816, 10935, 12731) Features:
- Made in USA
- Windings specifically designed for torque characteristics needed for machine tool use
- Advanced ferrite long life brushes
- 180 VDC max voltage allows direct rectification of 110 vac so no transformer is needed
- 29 and 40 in-lb sizes are Nema 42 for compatibility as replacement motors on a variety of machine tools
- Centroid installed encoder and cable
- Centroid Tested and ready to run
- Backward compatible with older Centroid CNC control systems
- Available sizes: 10 in-lb, 16 in-lb 29 in-lb, 40 in-lb and 40 in-lb with brake
- Used on a wide variety of machine tools from knee mills, bed mills, lathes, VMC's, Routers and other specialty CNC machinery
Servo Motor Dimensions click here..
$202.00

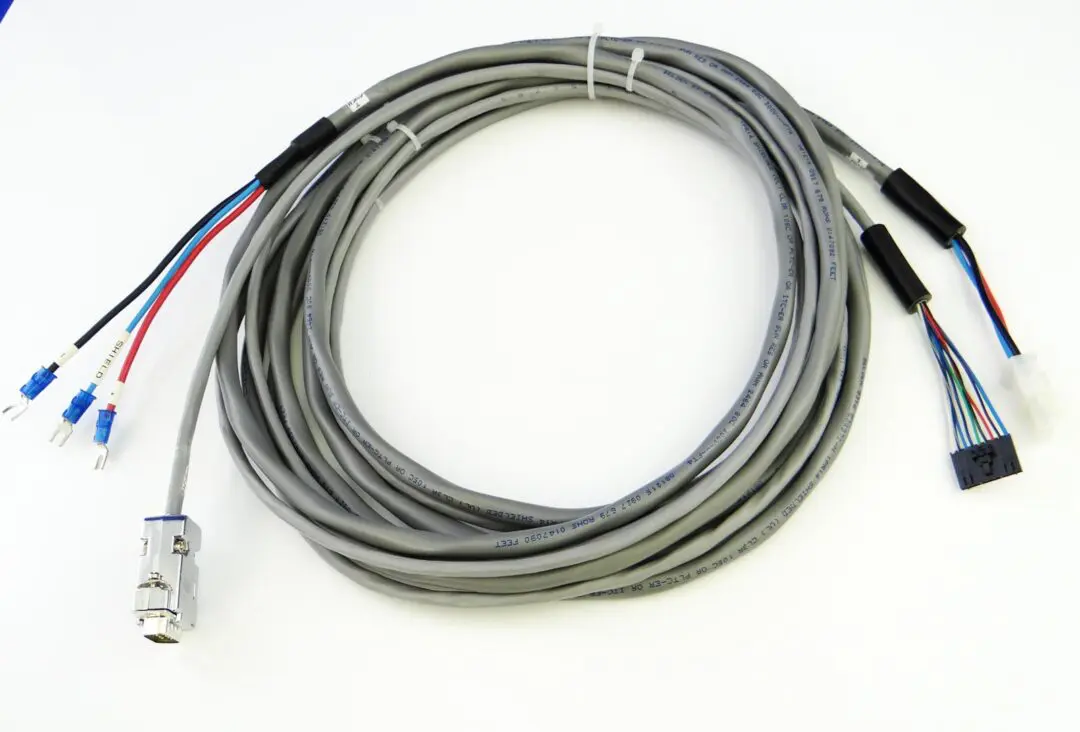

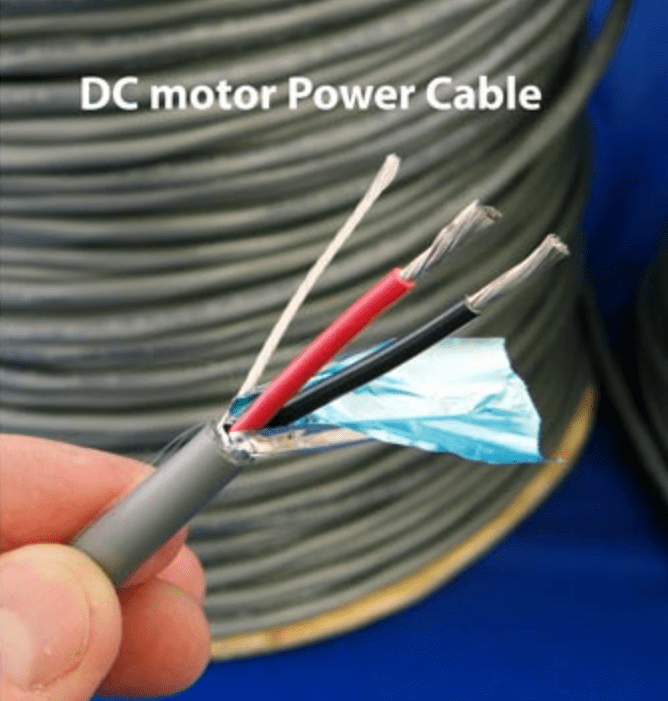

Plug and Play Centroid DC Servo Motor Power and Encoder Cable (10694)
Custom Lengths over 20' available on a made to order basis add $7 per foot for custom cable price over 20'. Call or email diysales@centroidcnc.com.
Typically used for replacement or retrofit upgrade of an existing DC servo motor for use with the Allin1DC CNC controller. You can make your own cables or buy these ready to go units to save time. High quality Cable with Polyurethane jacket, Color coded encoder cable is twisted pair with Shield and Drain for proper noise immunity. Power cable is high quality stranded copper with proper terminals at both ends for plug and play use with the Allin1DC. Both cables have thick rubber liquid tight strain relief seal at the motor end.
Compatible with:
$85.00 – $90.00

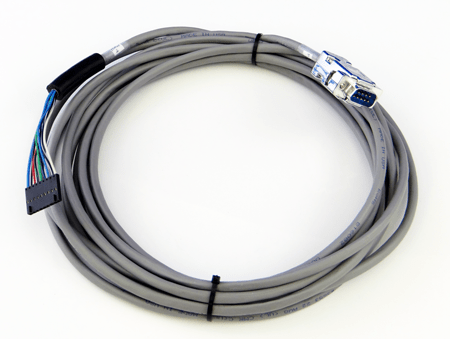

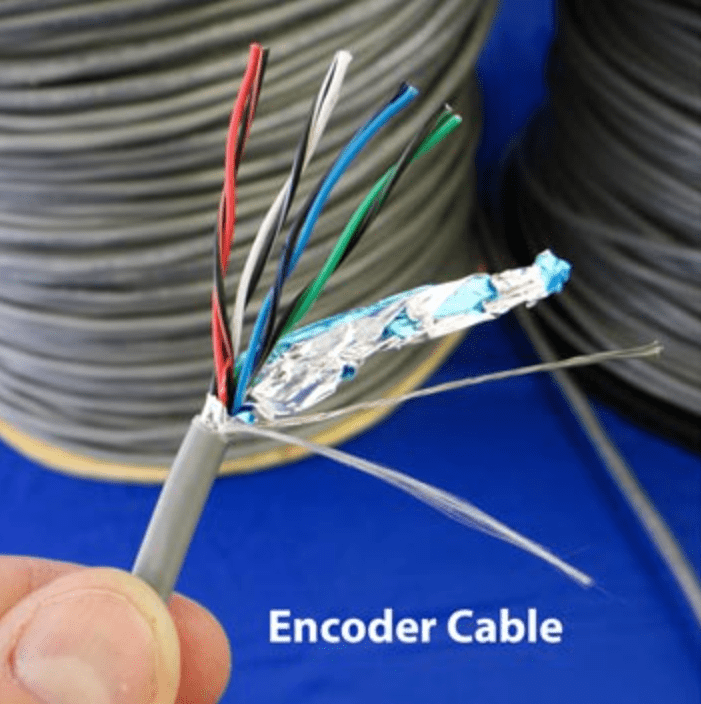

Choose between two stock lengths, 12 foot and 16 foot. These cables use twisted pair made-in-USA wire and are properly shielded and grounded for reliable encoder signal and are built and assembled by Centroid in the USA. (If a longer cable is required, we suggest purchasing the bulk encoder cable)
These cables are commonly used when upgrading DC servo motor encoders for use with the Allin1DC CNC controller. These cables can also be used for spindle encoder applications on both the Allin1DC and Acorn CNC controllers. One end of the cable is a DB9 connector which plugs directly into the Allin1DC or Acorn CNC controller, the other end of the cable is a single row flat pin connector (9 pin C-grid connector) which plugs into the Centroid Encoder pig tail mating connector.

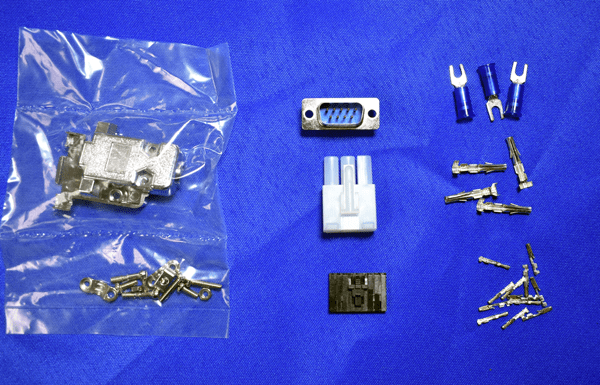

A mating 9 pin C-grid connector and pins are optional with this cable for the case when a non-Centroid encoder is used. The optional mating 9 pin C-grid connector can be installed on the non-Centroid encoder pig tail wires which then allows the encoder to plug directly into this cable with no soldering or cutting of this cable.
$19.00

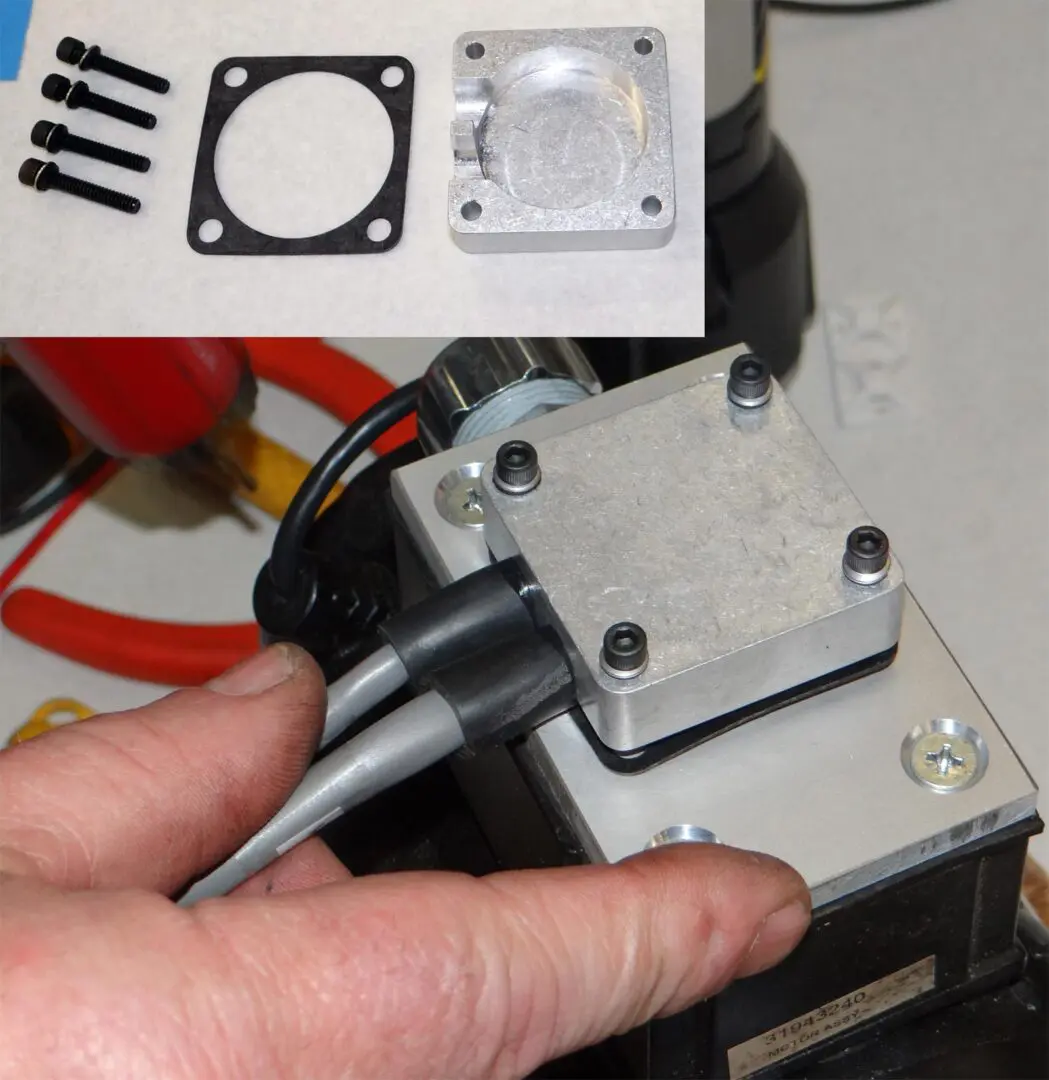

- Centroid Servo Motor Cable "Direct Wire" Seal and Strain Relief Cap Kit (#5031) includes:
- 1x Aluminum Cap
- 1x Gasket
- 4x 6-32 Screws
For use with Centroid motor cables, this direct wire cable strain relief makes a water/oil tight seal against both the motor power and encoder cables to any flat surface. Very useful when converting both old and new servo motors to a direct wire configuration as seen on this page.
$640.00

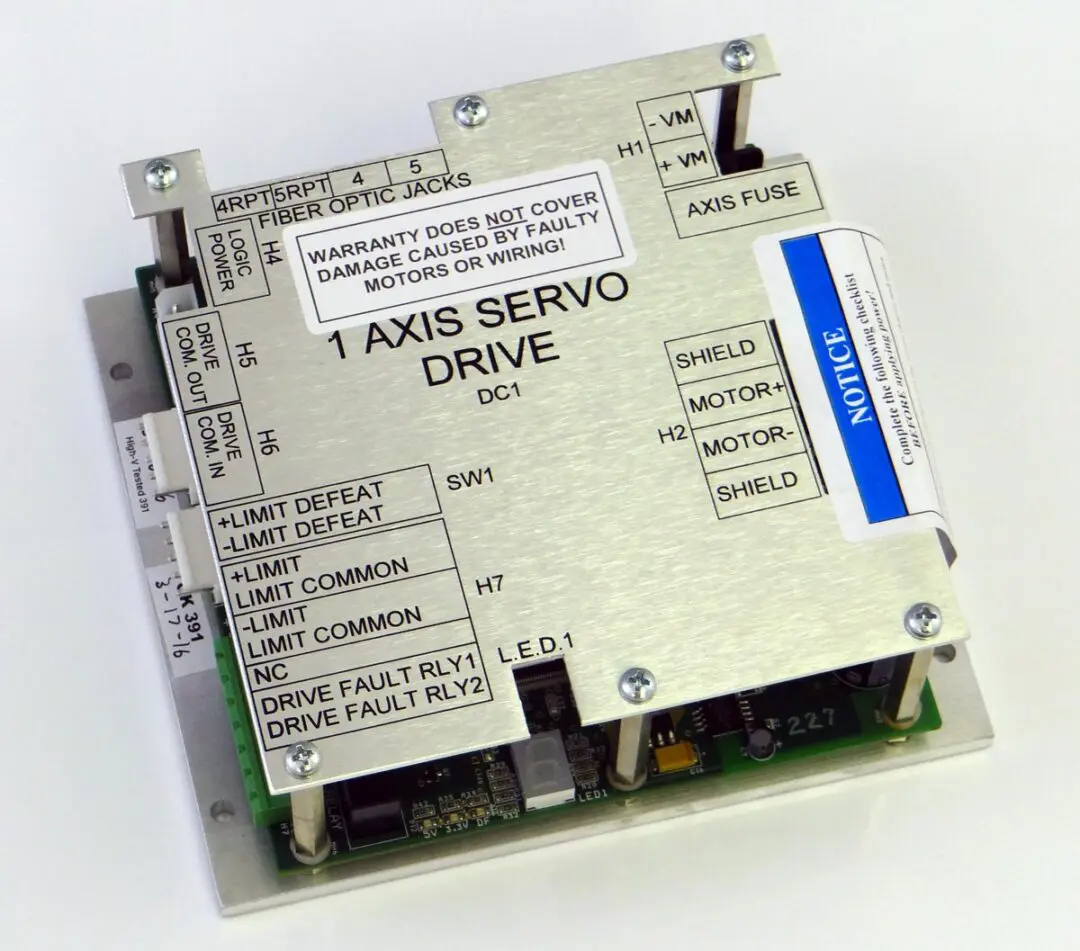

Centroid DC1 Single Axis DC Servo Drive (#11112) Features:
- Includes 4th axis software and programming capabilities.
- Digital Communication between Allin1DC and the DC1.
- Additional DC1's simply Daisy Chain with one another back to the Allin1DC
- The communication cable is included (not shown)
- Connect up to three DC1's to an Allin1DC CNC control board
- Allows the Allin1DC to become a 4 axis, 5 axis or 6 axis CNC control
Add a 4th Axis the Allin1DC with the DC1 single axis digital servo drive
The DC1 axis add-on servo drive is designed with simplicity in mind. The drive is a plug-n-play addition to the Allin1DC CNC control board. This drive can be used for rotary or linear axes.
$455.00

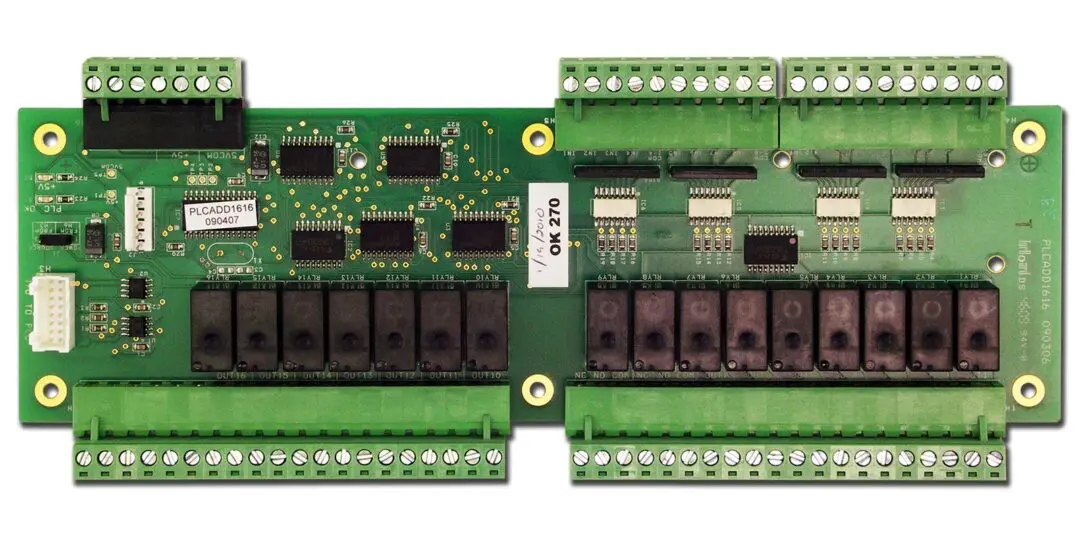

PLCAdd1616 I/O Expansion Board (#11025) Features:
- Add an additional 16 optically isolated inputs and 16 relay outputs to the Allin1DC
- Plug and Play, PLCAdd1616 to Allin1DC and Oak communication cable included.
- Typically used to control an Automatic Tool Changer
- User definable inputs and outputs
- User configurable, commanded by the Allin1DC PLC program
- PLCAdd1616 user manual
The PLCADD1616 is a PLC expansion board used to add digital inputs and outputs to a compatible host PLC. The PLCADD1616 has 16 relay outputs and 16 optically isolated inputs. The PLCADD1616 communicates with a host PLC through a cable connection to an expansion port. The host PLC may have up to 16 PLC expansion ports, labeled “PLC ADD 1” through “PLC ADD 16”. The PLCADD1616 may connect to any available expansion port. See the PLCAdd1616 user manual for more information.
$600.00

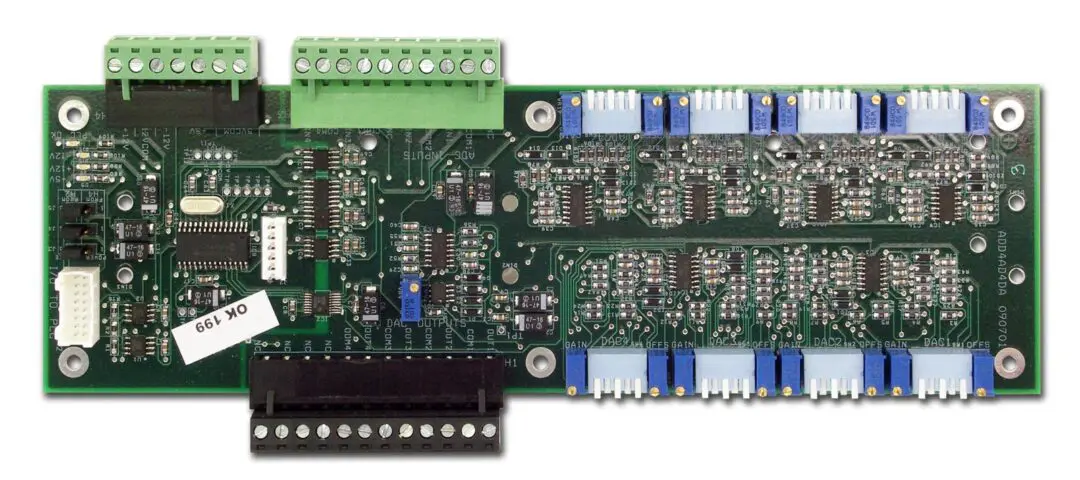

Add4AD4DA Expansion Board (#11141) Features:
- Add additional 4 analog to digital inputs and 4 analog to digital
- Plug and Play, Add4AD4DA to Oak communication cable included
- Typically used for multiple spindle machines tools with individual VFD's for each
- User configurable, commanded by the PLC program
- Add4AD4DA user manual
The ADD4AD4DA is a PLC expansion board used to add analog inputs and outputs to a compatible host PLC. The ADD4AD4DA has 4 analog outputs and 4 analog inputs. Four voltage output ranges are available on each analog output. Each analog output has a block of five DIP switches that must be set properly to get the desired output range. Please see the Add4AD4DA Manual for more information.
$395.00
Encoder/Scale Expansion Board (#13085) Features:
- Add additional 6 Encoder or Scale ports to an Oak Board
- Plug and Play, Encoder Expansion board to Oak communication cable included
- Typically used for multiple MPG or Scale inputs.
- User configurable
- Encoder Expansion Board user manual
The Encoder Expansion Board can support standard differential quadrature encoders or BiSS serial protocol encoders. Standard encoders must have output levels compatible with the specifications in the “ENCEXP Specifications” table found in the manual. Standard encoders have “A” and “B” signals to transmit position information. A signal edge must be produced for every count of position change, which may limit the top speed, particularly on high resolution models. Check both the encoder’s maximum frequency and “quadrature encoder input frequency” in the “ENCEXP Specifications” table in the manual to determine the maximum RPM an encoder is capable of before use. More information is available in the Encoder Expansion Board user manual.
| Encoder Type | Rotary Encoder | Linear Scale | MPG Handwheels |
|---|---|---|---|
| A/B differential quadrature (W/ Index Pulses) |
Yes | Yes | No |
| A/B differential quadrature (W/O Index Pulses) |
No | No | Yes |
| BiSS B/BiSS C Serial Encoders | Yes | Yes | No |
Compatible with:

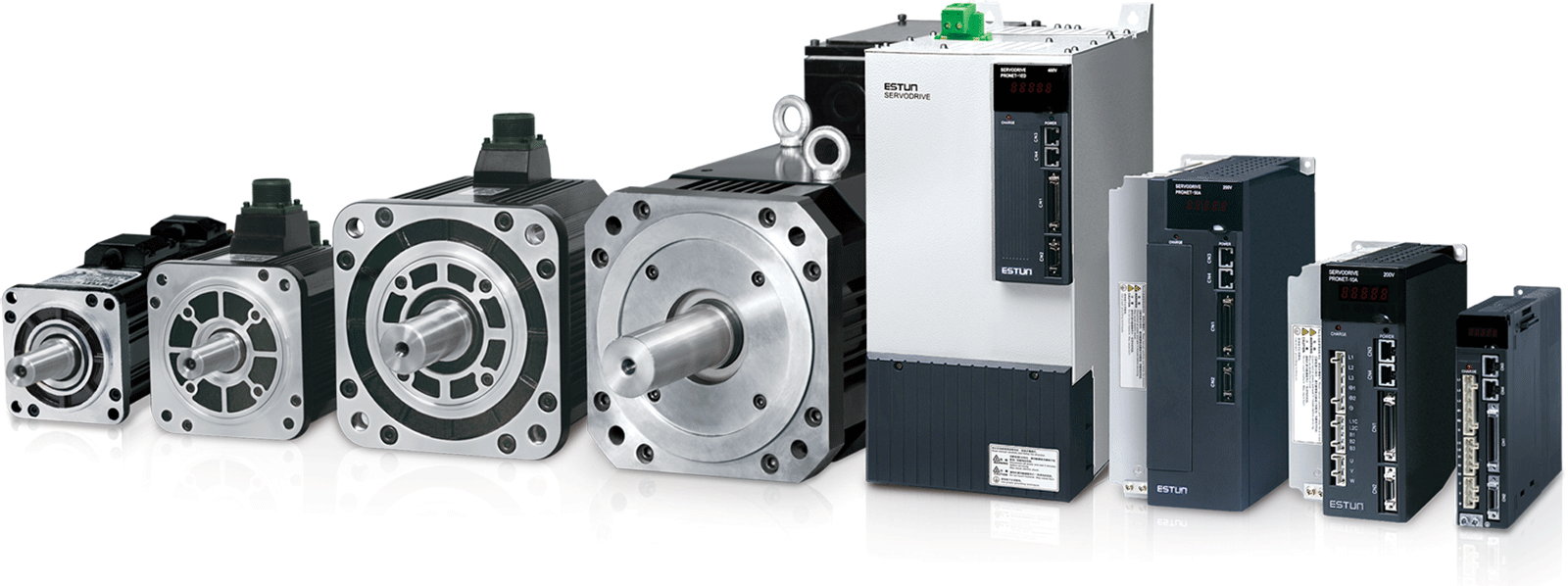

Estun AC Brushless Servo Motor, Drive and Cables packages
Estun AC Brushless Servo Motor, Drive and Cables packages
Please call 814-353-9256 or email sales@centroidcnc.com for a quote!

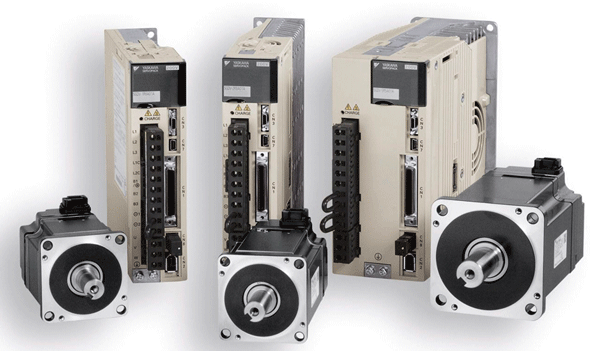

For new machine tools, retrofit upgrades or as replacement motors. Yaskawa's are high quality, long lasting, powerful servo motor and drive packages.
see more Yaskawa motors an drives, prices and part numbers on this page..
Yaskawa Servo motor dimensional drawings
Call or email for pricing on larger sizes
Yaskawa to Acorn setup instructions
Yaskawa to Oak setup instructions
YaskawaSigmaWin configuration software download.
$120.00 – $155.00

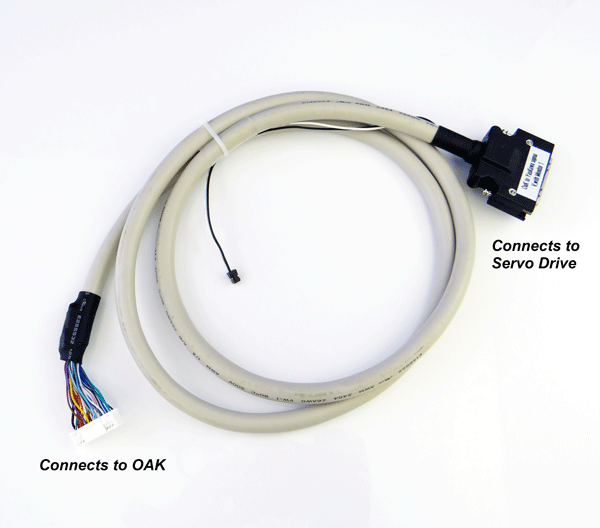

Oak Board to Servo Drive Cable (#13134, 13131, 15236, 13133) is a communications cable that connects a servo drive to the Oak CNC controller. One end plugs into the servo drive, and the other end plugs into the Oak CNC control board. Sold in 4 variations.
1.) Yaskawa. Works with Yaskawa Sigma 1,2,5,7 Servo drives
2.) Delta ASD-A or ASD-AB
3.) SureServo2
4.) Flying lead. Servo drive end of cable is left "flying lead" so user can mount any kind of connector necessary to connect to a drive other than Yaskawa, Delta or SureServo2
*Yaskawa cable shown
Compatible with:
$240.00 – $285.00

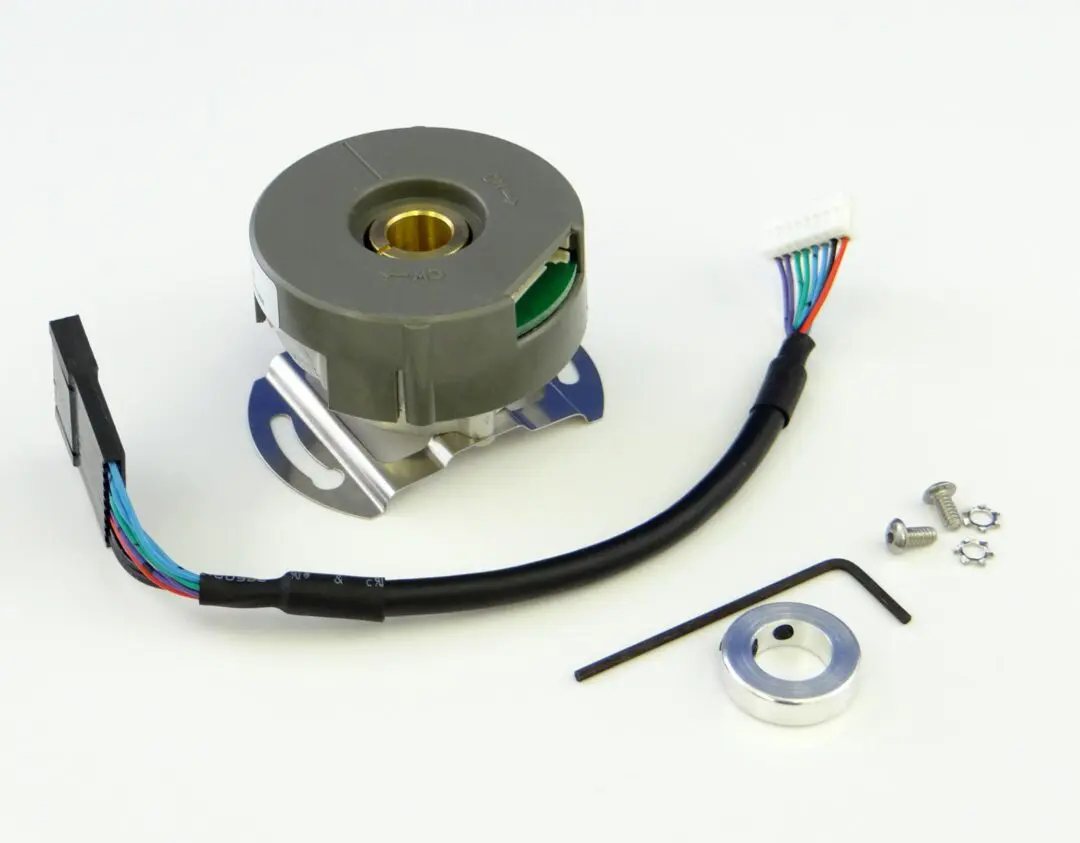

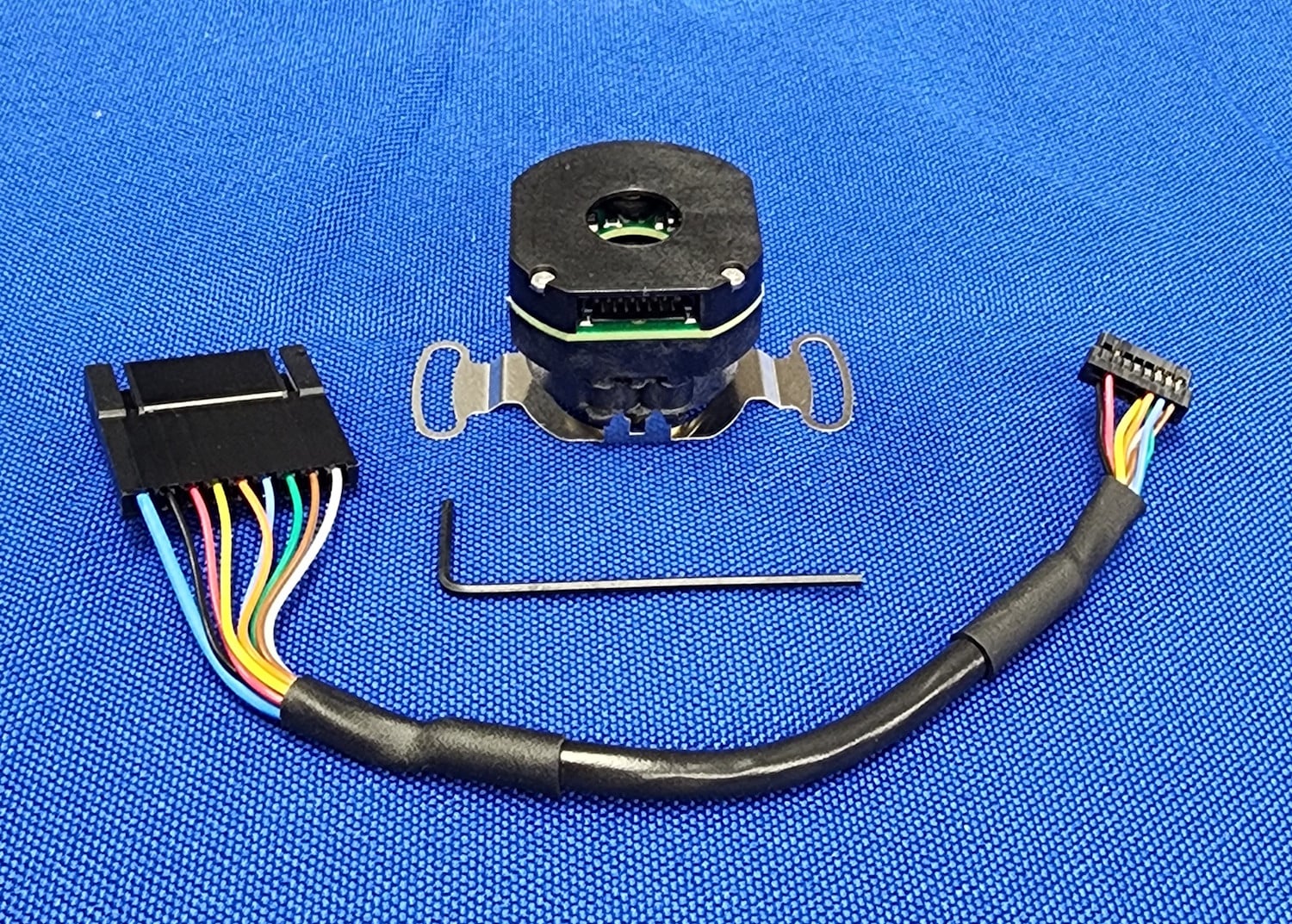

Servo Motor Upgrade Encoder Kit (#3403, 4127, 2848, 4655, 14442, 14368)
Commonly used to upgrade old existing DC servo motors to be compatible with the Centroid Allin1DC. See example servo motor encoder upgrade here. Replaces Tachometers, Resolvers and Low-resolution Encoders. Upgrade existing DC servos to the latest technology for silky smooth closed loop CNC operation. Centroid stocks these high resolution, 5vdc, quadrature differential encoders in several commonly found shaft sizes. Encoder to Encoder cable pigtail included which allows plug and play compatibility with Centroid Encoder Cables, no crimping or soldering needed. Please measure the servo motor encoder shaft diameter before ordering. Find more technical how-to information on Encoders here.
Note: 10,000 line (40,000 count per revolution) encoders are commonly used on tall pitch machine tools like CNC routers and Linear rail machines to maintain a good encoder counts per inch of linear travel on the machine tool for smooth operation.
$275.00 – $285.00

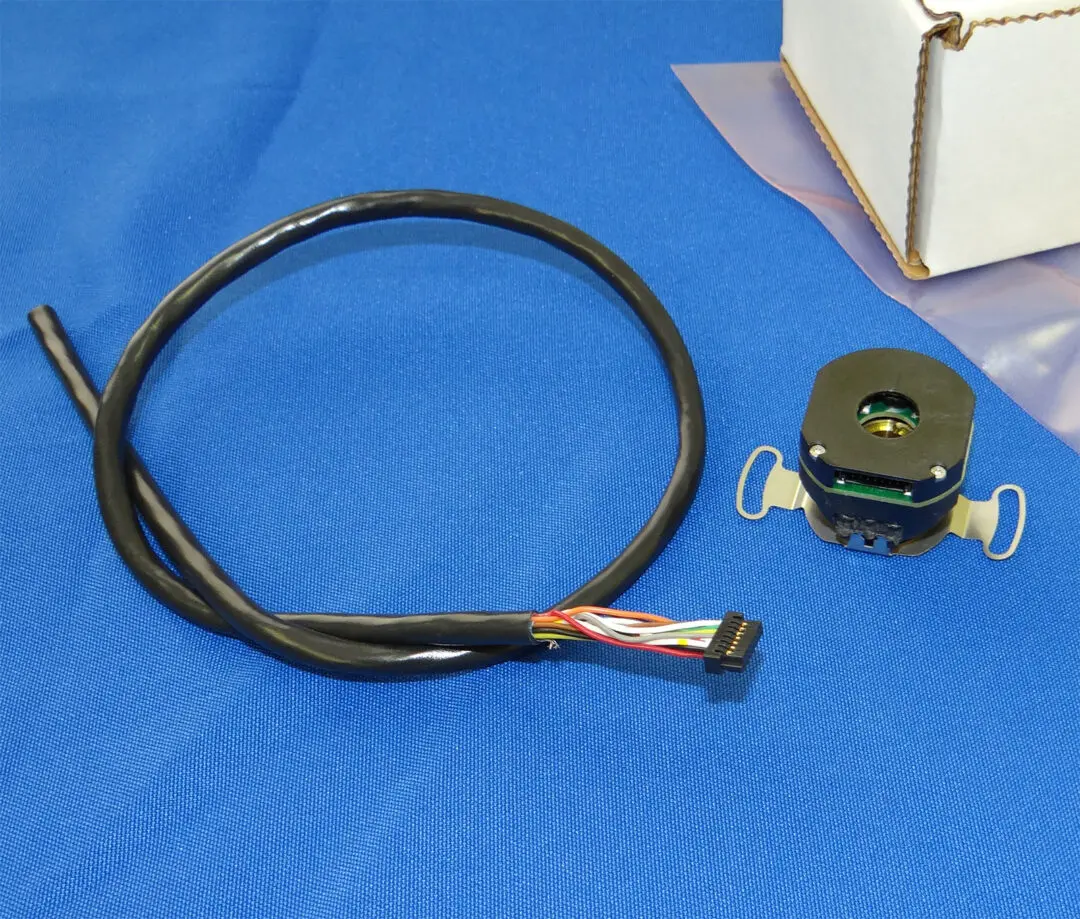

Encoder with pigtail connector. Commonly used to upgrade old existing AC servo motors or added to a new AC servo motor. Replaces Tachometers, Resolvers and Low resolution Encoders. Also used to upgrade existing DC servos to the latest technology for silky smooth closed loop CNC operation.
Centroid stocks these high resolution, 5Vdc, quadrature differential servo motor encoders in 8mm shaft size. Encoder to Encoder cable pigtail included which allows wiring to a mill connector or to a 9 pin C-grid connector for DC applications for compatibility with Centroid Encoder Cables, 8000 RPM maximum. Please measure the servo motor encoder shaft diameter before ordering. More technical how-to information on Encoders here..
Note: 10,000 line (40,000 count per revolution) encoders are commonly used on tall pitch machine tools like CNC routers and Linear rail machines to maintain a good encoder counts per inch of linear travel on the machine tool for smooth operation.
$675.00 – $1,225.00
DC Servo Motor Power Supply 110/220 VAC to 117 DC Volt Kit (#10537,#10010) includes
- Step Down Transformer
- Capacitor
- Bridge rectifier board
- Output 117 volts DC
- Input 110/120 VAC single phase
- For use with Servo motors with max voltage ratings higher than 117 VDC
- Commonly used in retrofit upgrades when reusing existing servos that have max voltage ratings in the 120 to 145 DC volt range
- Compatible with the Allin1DC CNC controller
(Note: For DC servo motors with a maximum voltage of 155 volts DC and higher the transformer is not necessary when directly rectifying 110/120 VAC to DC. Use Centroid's https://shopcentroidcnc.com/shop/cnc-accessories/centroids-cap-and-bridge-combo-dc-servo-motor-power-generator/ for these cases. )
See typical hookup schematics: https://www.centroidcnc.com/centroid_diy/schematics/pbrowse.php?term=s14996
$185.00

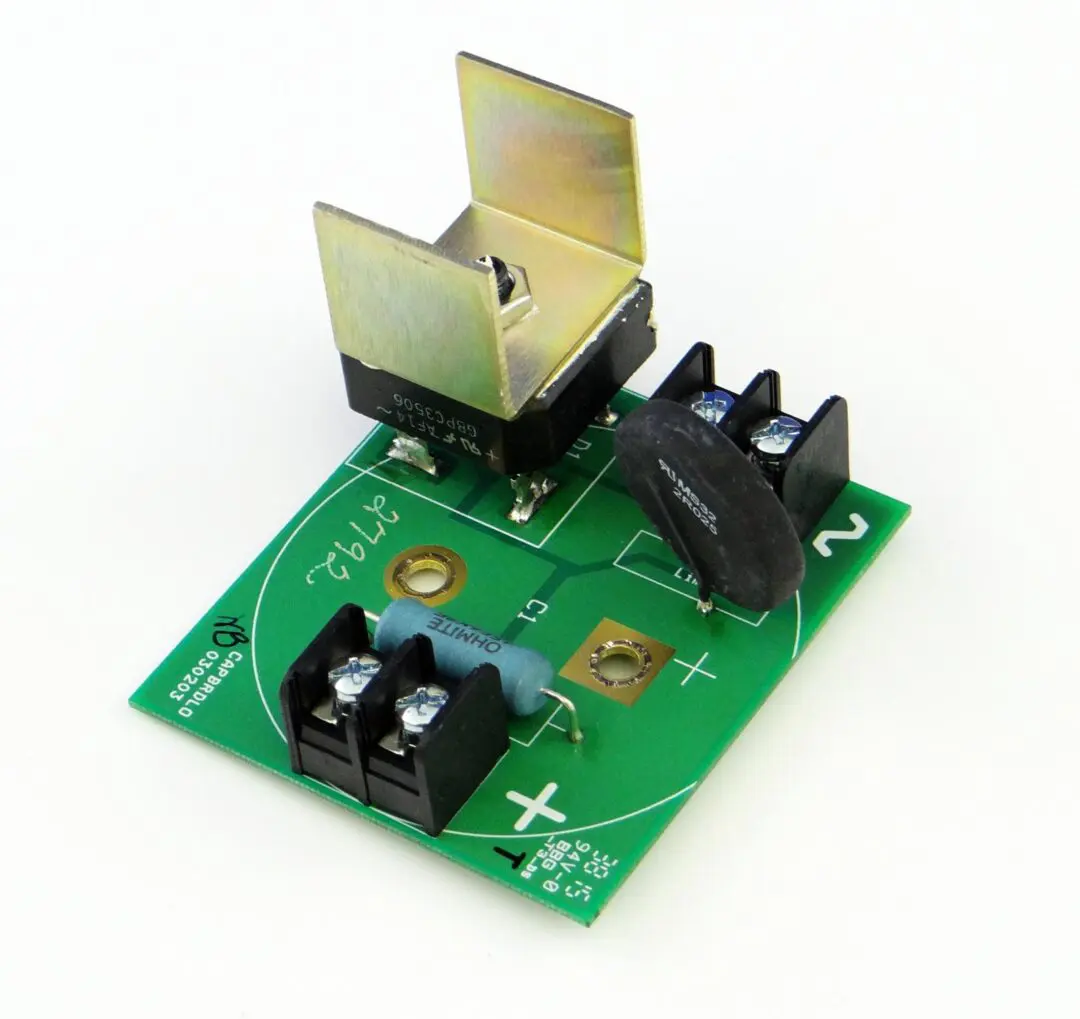

Centroid "Cap and Bridge Combo" Kit - 110VAC (#12726) Features:
- Easily powers up to four 29 in-lb DC servo motors
- High quality large capacity for smooth DC voltage output
- Preassembled, ready to use
- Commonly used for both new CNC control installations and retrofit upgrades
Power Conversion Examples:
- AC volts IN x 1.41 = DC volts out
- 110 VAC input yields 155 VDC out
- 83 VAC input yields 117 VDC out
See this DC Servo motor power discussion for more information.
Schematic is available in the ALLIN1DC Individual Circuit Schematic Set, see Page 5
Directly rectify AC voltage an generate DC power for use with the Allin1DC main DC servo motor power input.
For example, direct rectification of 110/120 VAC input will produce 155 DC volts for use with Servo motors with max voltage rating higher than 160 VDC, (no step-down transformer needed in this case for use with motors rated above 160 VDC max).
For motors rated under 155 DC volts as their maximum, use a step-down transformer in conjunction with this item. see typical hook up schematics below.
For most retrofit applications where the machine was already equipped with DC servo motors this step down transformer will already exist in the electrical cabinet and can often be reused.
In the case of a new control system or if the retrofit step down transformer is missing or damaged Centroid sells a step down transformer kit for use with servo motors that are rated below 155 vdc as a maximum. DC Power Supply with Transformer Motor rated at 160 DC or greater do not need a step down transformer.
Power Conversion Examples:
- AC volts IN x 1.41 = DC volts out
- 110 VAC input yields 155 VDC out
- 83 VAC input yields 117 VDC out
See this DC Servo motor power discussion for more information.
Schematic is available in the ALLIN1DC Individual Circuit Schematic Set, see Page 5
$60.00 – $90.00
Power Supply Bridge Rectifier (#10674, #10675) is used to rectify AC to DC for Servo Motor Power use.
- Requires a 12,000+ mfd or higher rated capacitor
- Bolts to standard size capacity with 1.125" terminal spacing
- Can also be wired to a capacitor, rather than bolt on
- Use with your own Capacitor
- 600 volts max, with 35 amps rating.
Power Conversion Examples:
- AC volts IN x 1.41 = DC volts out
- 110 VAC input yields 155 VDC out
- 83 VAC input yields 117 VDC out
Designed to bolt to at least a 12,000 MFD 250 Volt Capacitor (larger is ok), this printed circuit board rectifying bridge includes the diode bridge, in-rush limiter, bleed down resistor and terminals for AC power in and DC power out. The distance between centers of the capacitor terminal is 1.125in. 600V, 35A AC in one side, DC power out the other! It couldn't be more simple. Made in USA.
$12.00
Quencharcs (#1819), aka "Snubbers", are a critical component noise suppression device that is required on all Contactors, Solenoids and external Relay coils.
Contactor in photo not included, Image shows typical Installation of Quencharc across a contactor coil.
Minimum Order Quantity of 3
Designed for noise suppression of all contactor, solenoid and relay coils to prevent interruption of CNC control communications. One Quench arc should be installed across each coil used in any CNC system.
Contactor in photo not included, Image shows typical Installation of Quencharc across a contactor coil.
Quencharcs are commonly used on all sorts of accessory coils, such as Flood Pump, Mister Solenoid, Vacuum Solenoids, Dust Collection motor starters, Estop Contactors and any other device controlled by a Contactor, Relay or Solenoid.
See our Tech Bulletin on how to use Quencharcs (aka Snubbers) for Noise Suppression.
$48.75 – $325.00
DC Servo Motor Power Cable (#1753) is for use with 40 in-lb DC Servos and smaller. This is the same high quality 14AWG shielded wire used in the Centroid Motor/Encoder cable sets. Cable is made with a tough polyurethane jacket. We offer it here for those that want to build their own cables. Also sold per foot: call or email us, $3.25 / ft. Made in USA.
$18.75 – $125.00
DC Servo Encoder Cable (#1754) is the same high quality, 22AWG shielded, twisted pair with drain wire used in our pre-built ready-to-use DC servo motor cables. Cable is made with a tough polyurethane jacket. Also Sold per foot: call or email us, $1.25 / foot. Connectors available separately. Made in USA.
$12.00
DC Servo Motor Power and Encoder Connector Kit (#13017) Includes:
- Qty. 10 Molex Female Terminal Pins
- Qty. 3 Terminal Spade #6
- Qty. 1 Molex .093 3 Pin Socket W/ Lock
- Qty. 4 Molex .093 Female Terminal Pins
- Qty. 1 DB9 Hood
- Qty. 1 Molex 9 Pin C-Grid Housing
Make your own DC servo motor power and encoder cables using this connector kit. connectors for both ends of the cables. Power cable connects to servo motor connectors, power cable connects to Allin1DC. Encoder cable connects to encoder pigtail connector and encoder cable connects to Allin1DC connector.
Motor and Encoder Cable Mating Connectors
$65.00
Allows all CNC cabling to enter cabinet through one hole
Download PDF with hole dimensions
Save time and eliminate expensive fussy cable bulk head connectors with this Centroid Electrical cabinet cable entry management system. This invention allows all the CNC cabinet cables to enter the cabinet thru one rectangular hole in the bottom of the cabinet. The system both seals and supports and organizes the cables.
This system eliminates having to drill many holes in the cabinet significantly reducing cable installation labor and connector costs. Also this system make for a more reliable electrical cabinet with less holes in the electrical cabinet that means less chances for dust, chips, dirt , fluids to enter the cabinet and potentially damage the CNC electronics. With this system it is easy to add or remove a cable with no holes to drill or cover up after a cable addition or subtraction. Reusable and resealable any number of times. Installation is easy simply cut one rectangular hole in the bottom on the cabinet and 4 mounting holes and all necessary CNC cables can be installed using this one entry point. Made in USA, Steel construction with Poron sandwich. 10.5" long.
$45.00
- Emergency Stop Button (#14534) includes:
- 1x E-Stop Button
- Industrial quality reliable Emergency Stop Button with two switches.
- Two contact closures for two estop circuits
- Use just one contact closure or use both
- For use with the Acorn, Allin1dc and Oak CNC control boards.
- Thru Hole Panel Mount
$725.00
- TT-1 CNC Tool Height Measurement Device (#10220) features:
- - Set Tool Lengths automatically
- - Ultra accurate conductive design
- - Save time, increase accuracy
- - Magnetic base or hard mounts (T-nut or Shank)
- - Works w/ CENTROID & most other CNC’s
- - Easy to achieve high precision measurements
- - Designed for milling and lathe applications: Knee mills, Bed mills, Machining centers and Routers, Lathes and Turning centers
- - In process tool reset for worn out or broken tools
- - Requires conductive tools
- - Serviceable unit
- - Auto cable detection
Set up your tools in a quarter of the time it would normally take. If you often machine short-run parts and are always setting up and tearing down for a new job, the TT-1 Auto tool set will save you time while more accurately setting your tool height offsets. Save time when you have to replace a dull tool with a new one in the middle of a job. The TT-1 is completely automatic. Press “measure” and the tool will automatically touch off the TT-1 and set the tool height offset in the tool library. Works with CENTROID CNC controls and most any other CNC or DRO with a probe input. Requires conductive tooling and spindle.
$725.00
- TT-1 CNC Tool Height Measurement Device (#10220) features:
- - Set Tool Lengths automatically
- - Ultra accurate conductive design
- - Save time, increase accuracy
- - Magnetic base or hard mounts (T-nut or Shank)
- - Works w/ CENTROID & most other CNC’s
- - Easy to achieve high precision measurements
- - Designed for milling and lathe applications: Kneemills, Bed mills, Machining centers and Routers, Lathes and Turning centers
- - In process tool reset for worn out or broken tools
- - Requires conductive tools
- - Serviceable unit
- - Auto cable detection
Set up your tools in a quarter of the time it would normally take. If you often machine short-run parts and are always setting up and tearing down for a new job, the TT-1 Auto tool set will save you time while more accurately setting your tool height offsets. Save time when you have to replace a dull tool with a new one in the middle of a job. The TT-1 is completely automatic. Press “measure” and the tool will automatically touch off the TT-1 and set the tool height offset in the tool library. Works with CENTROID CNC controls and most any other CNC or DRO with a probe input.
