The KP-1, KP-3, DP-4 and the DP-7 use the same styli thread mount, so any listed styli will fit all four probes.

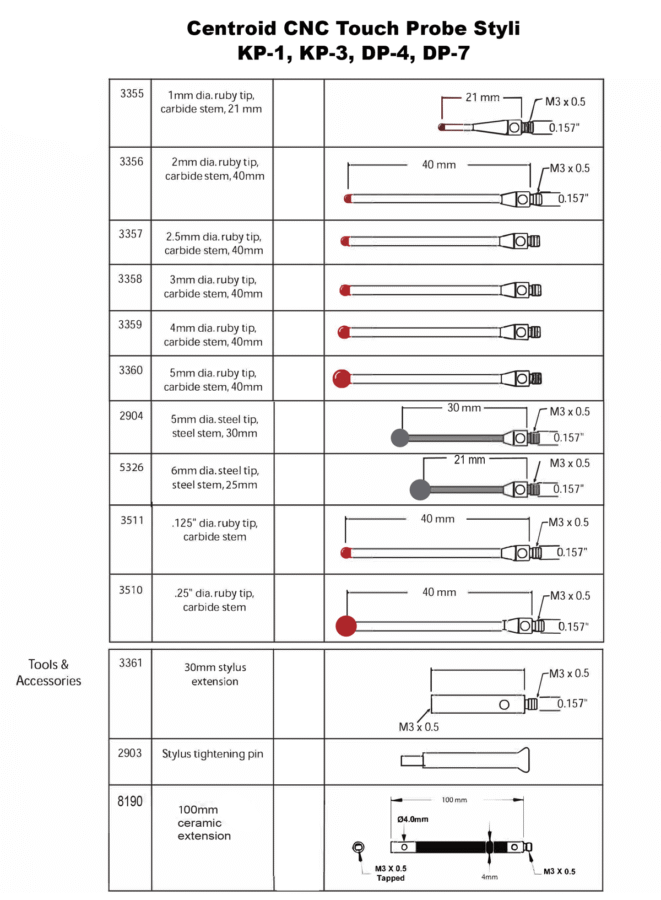

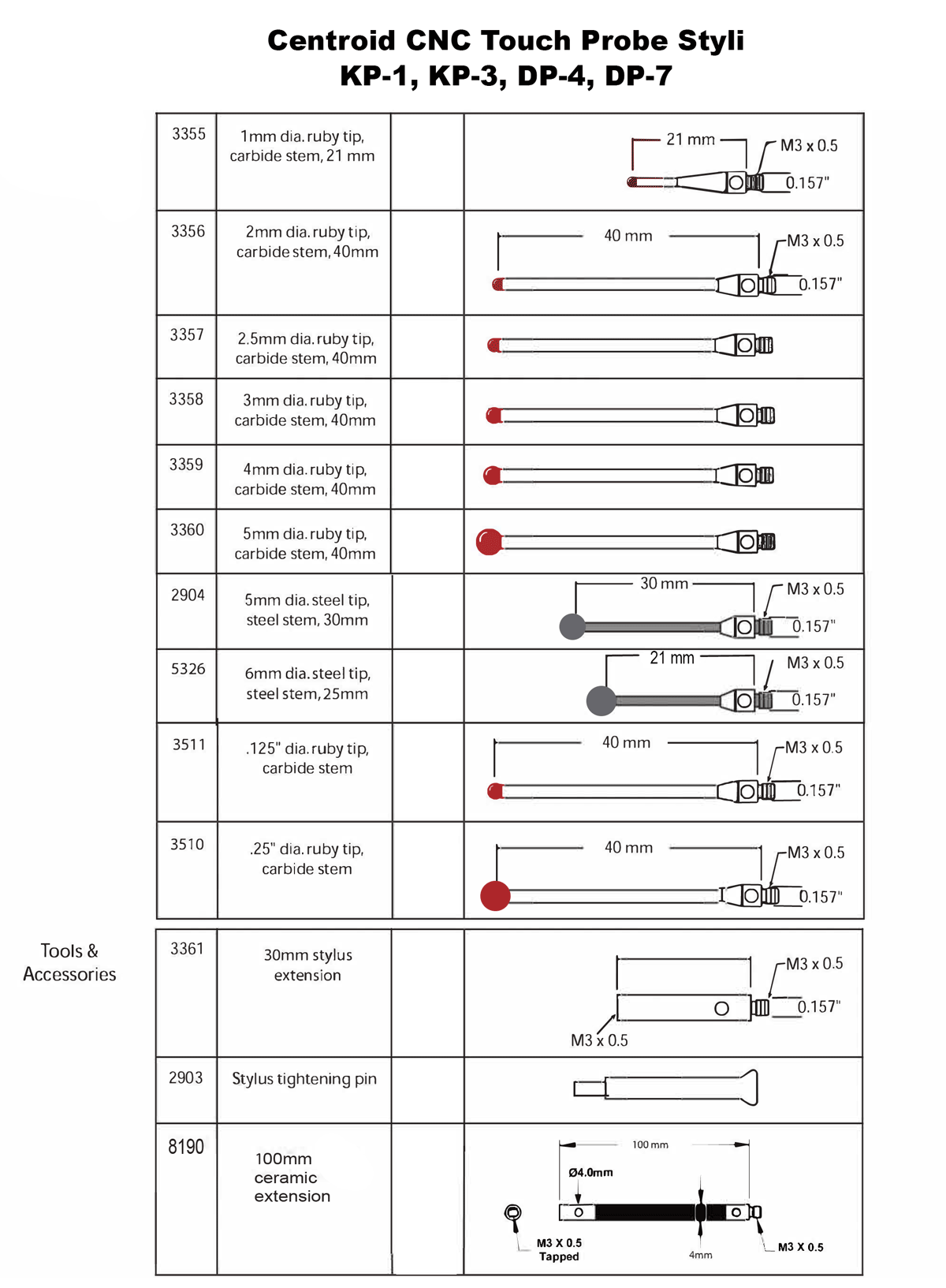

Centroid CNC Touch Probe Styli
Price range: $20.00 through $258.00
If you are looking to replace an existing stylus: The KP-1 comes standard with the 5 mm x 30mm Stylus (#2904). The KP-3 comes standard with the 2.5 mm x 40mm Carbide Stem, Ruby Tipped Stylus (#3357). The DP-7 comes standard with the 0.25" x 40mm Carbide Stem, Ruby Tipped Stylus (#3510) and a 100mm ceramic stylus extension (#8190). The DP-4 comes standard with both the 5mm x 40mm Carbide Stem, Ruby Tipped Stylus (#3360) and the 2.5mm x 40mm Carbide Stem, Ruby Tipped Stylus (#3357).
